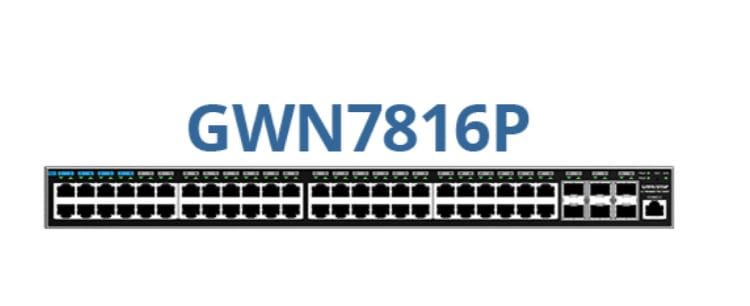

Grandstream GWN7816P Enterprise Layer 3 Managed PoE Network Switch, 48 x GigE (40 x PoE+, 8 x PoE++), 6 x SFP+
Grandstream GWN7816P Enterprise Layer 3 Managed PoE Network Switch, 48 x GigE (40 x PoE+, 8 x PoE++), 6 x SFP+
The GWN7816P are 48-port Layer 3 managed network switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The GWN7816P provides smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The GWN7816P can be managed in several ways, including the local Web user interface of the switch, and CLI, the command-line interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream ™s cloud and on-premise network management platform. With an advanced set of features, comprehensive security protection, and flexible management options, the GWN7816P is ideal for enterprise and medium-to-large businesses who require high-performance networks with maximum capacity and control.
Core Features:
48 Gigabit Ethernet ports and 6 Gigabit SFP+ ports
Smart power control to support dynamic PoE/PoE+,
PoE++ (GWN7816P) power allocation per port
Supports deployment in IPv6 and IPv4 networks
Reliability features including fault detection, device protection, dual boot,
dual system file redundancy, link aggregation, storm control, and more
ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
Embedded controller to manage switch; GWN. Cloud and GWN Manager,
Grandstream ™s cloud and on-premise network management platform, CLI management
Built-in QoS allows for prioritization of network traffic
The GWN7816P are 48-port Layer 3 managed network switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The GWN7816P provides smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The GWN7816P can be managed in several ways, including the local Web user interface of the switch, and CLI, the command-line interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream ™s cloud and on-premise network management platform. With an advanced set of features, comprehensive security protection, and flexible management options, the GWN7816P is ideal for enterprise and medium-to-large businesses who require high-performance networks with maximum capacity and control.
Core Features:
48 Gigabit Ethernet ports and 6 Gigabit SFP+ ports
Smart power control to support dynamic PoE/PoE+,
PoE++ (GWN7816P) power allocation per port
Supports deployment in IPv6 and IPv4 networks
Reliability features including fault detection, device protection, dual boot,
dual system file redundancy, link aggregation, storm control, and more
ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
Embedded controller to manage switch; GWN. Cloud and GWN Manager,
Grandstream ™s cloud and on-premise network management platform, CLI management
Built-in QoS allows for prioritization of network traffic
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L3 |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| Cloud-managed |
|
| Traffic shaping |
|
| ARP inspection |
|
| Configuring Location Settings (CLI) |
|
| System event log |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 48 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 10 Gbit/s. The "SFP+ ports quantity" is the number of ports for SFP+ connections in a device. | 6 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Port mirroring |
|
| IP routing |
|
| Policy-based routing |
|
| Link aggregation |
|
| Broadcast storm control |
|
| Rate limiting |
|
| Spanning tree protocol |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Number of VLANs | 4000 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 216 Gbit/s |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 32000 entries |
| Latency (10-100 Mbps) | 4 µs |
| Static route |
|
| Packet buffer memory | 16 MB |
| Security | |
| DHCP features | DHCP Option 82, DHCP Option 60, DHCP Option 160, DHCP Option 43 |
| Access Control List (ACL) |
|
| Access Control List (ACL) IPv4 entries | 4000 |
| Access Control List (ACL) IPv6 entries | 4000 |
| IGMP snooping |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 802.1x RADIUS, HTTPS, SSH |
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| Loop protection |
|
| BPDU filtering/protection |
|
| IP-MAC-Port binding |
|
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| Authentication type Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data. | AAA, RADIUS, TACACS+ |
| Queue scheduling algorithms | SP, WFQ, WFQ+SP, WRR+SP, Weighted Round Robin (WRR) |
| MAC address entries | Dynamic MAC address entries, Static MAC address entries |
| Multicast features | |
| Multicast support |
|
| Multicast Listener Discovery (MLD) snooping | MLD Snooping with MLDv1 and MLDv2 |
| Protocols | |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d , IEEE 802.1s, IEEE 802.1w, IEEE 802.1x |
| GARP VLAN Registration Protocol (GVRP) |
|
| Routing protocols | OSPF, OSPFv3, RIP, RIPng |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| LED indicators | Data, PoE, Power |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| Power consumption (max) The maximum amount of power used by the device. | 60 W |
| Power protection features Features that protect the device against power problems e.g. overload. | Surge protection |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 740 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 380 mm |
| Depth The distance from the front to the back of something. | 440 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 6 kg |
| Packaging content | |
| Cables included | AC |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Rack mount kit |
|
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RCM, UKCA |
| SKU | 779150 |
| MPN | GWN7816P |
| Brand | Grandstream |
