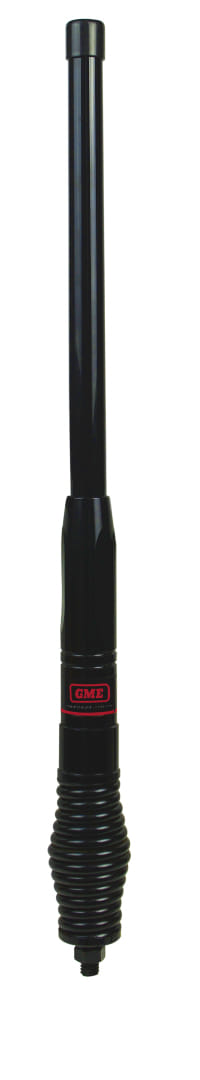

GME AT4704BA, 5 dBi, 2.1 GHz, 50 Ohms, SMA, Vertical polarization, 2.5:1
Utilising the proven, rugged, mechanical design of the AE4700 series of UHF antennas in conjunction with an innovative PCB electrical circuit, the AT4704BA sets a new benchmark for Multi-band cellular antennas in the Australian market.
Covering the 700MHz, 850MHz, 900Mhz and 1800-2100MHz bands, the AT4704BA is a true Multi-band cellular antenna.
The AT4704BA delivers excellent LTE coverage across existing mobile phone networks ensuring you always remain connected, even in areas with limited or poor cellular network coverage.
Covering the 700MHz, 850MHz, 900Mhz and 1800-2100MHz bands, the AT4704BA is a true Multi-band cellular antenna.
The AT4704BA delivers excellent LTE coverage across existing mobile phone networks ensuring you always remain connected, even in areas with limited or poor cellular network coverage.
| Performance | |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.1 GHz |
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 50 Ω |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 5 dBi |
| Features | |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | SMA |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 2.5:1 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cable length How long the cable is. | 4.5 m |
| Cable type Type of cable e.g. electicity cable, optical cable. | RG58 |
| Weight & dimensions | |
| Height The measurement of the product from head to foot or from base to top. | 580 mm |
| Logistics data | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | Australia |
| SKU | 769574 |
| MPN | ANT-GM-00026 |
| Brand | GME |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | N/A |
