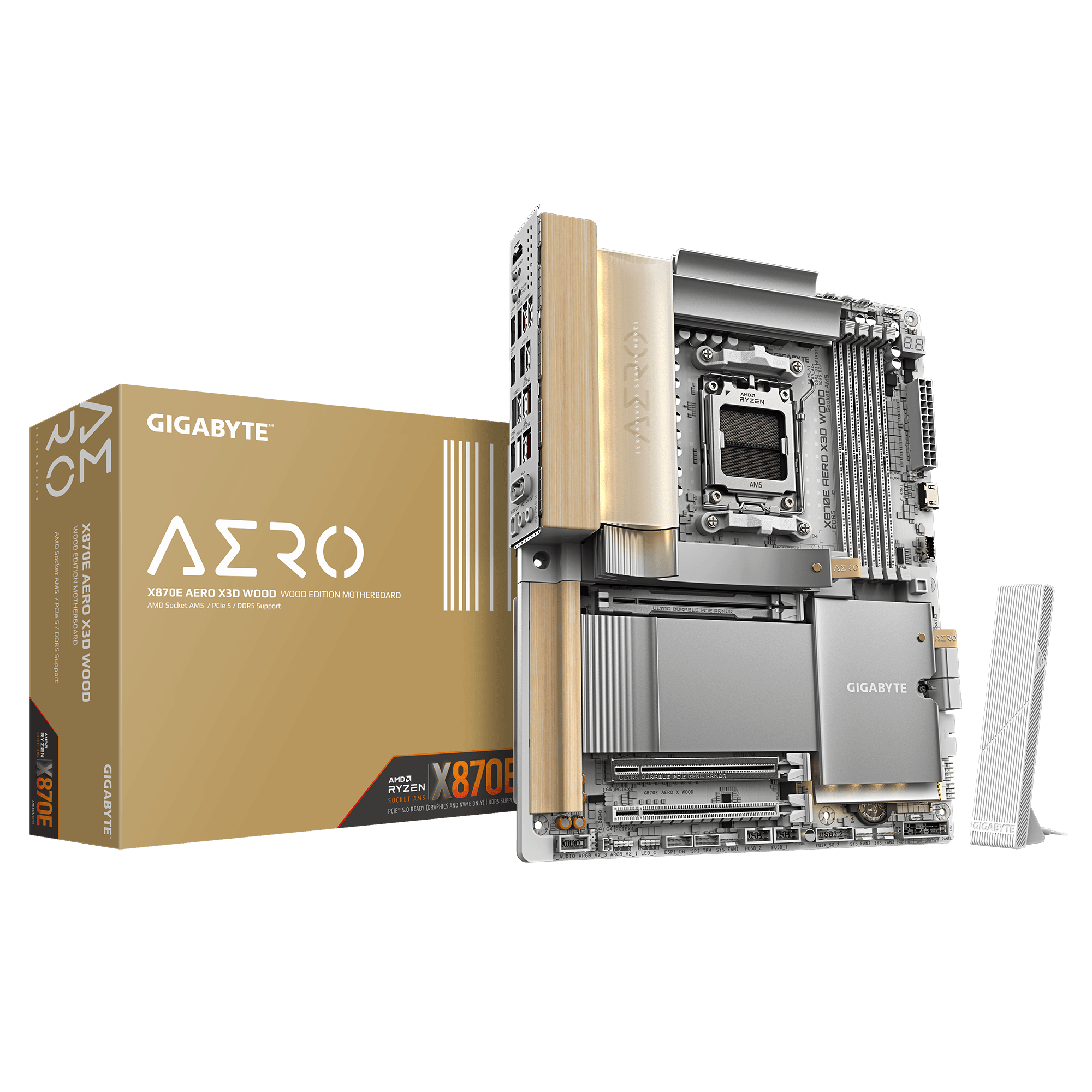

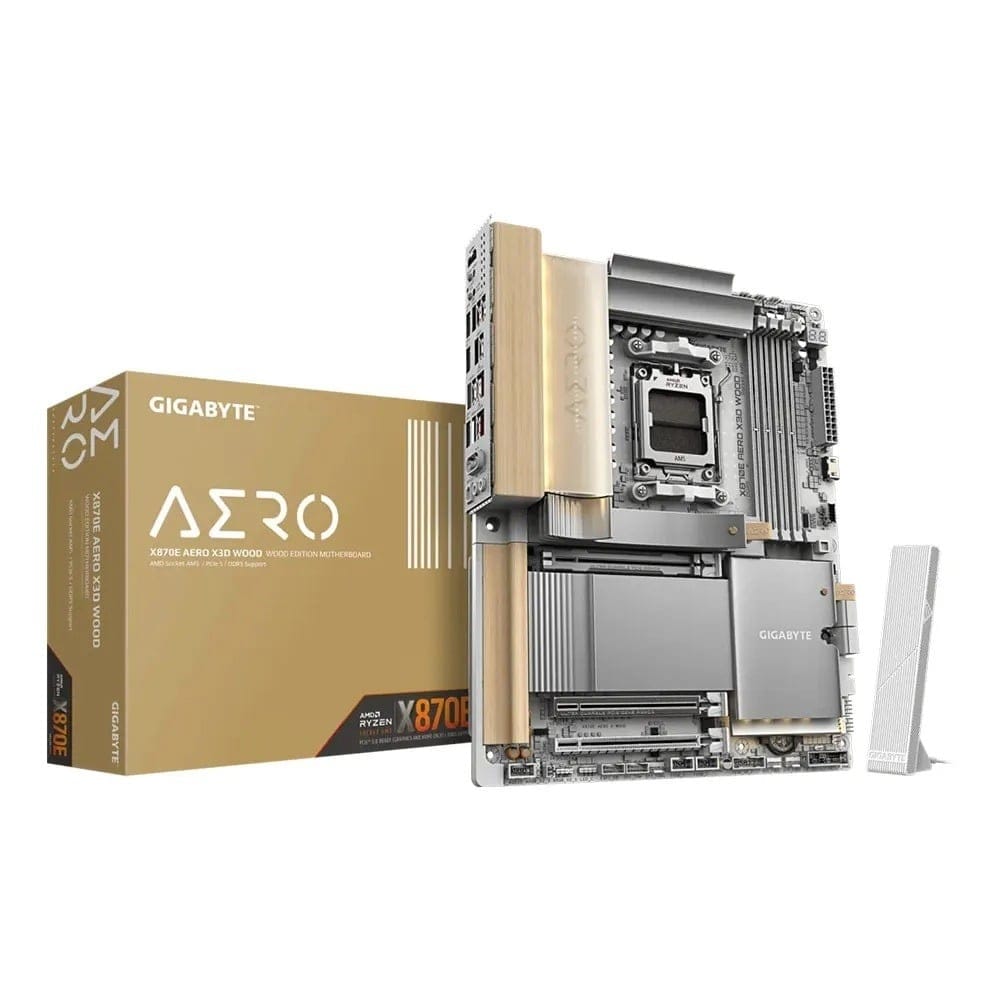

Model Name: X870E AERO X WOOD AMD AM5 X870E/rev.1.0 ATX/MT7927
X870E AERO X3D WOOD
Wood Edition Motherboard
[ RAW TEXTURE REVEAL TIMELESS ELEGANCE. ]
| GroupName | Name | Value |
|---|---|---|
| Audio | Realtek® ALC1220 CODEC | |
| Chipset | AMD X870E | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| I/O Connectors | 1 x Q-Flash Plus button, 1 x Clear CMOS button, 1 x power button, 1 x reset button, 1 x HDMI port, 2 x USB4® USB Type-C® ports, 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support, 5 x USB 3.2 Gen 2 Type-A ports (red), 3 x USB 3.2 Gen 1 ports, 2 x RJ-45 ports, 2 x antenna connectors (2T2R), 2 x audio jacks, 1 x optical S/PDIF Out connector | |
| Integrated CPU Graphics | Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz; Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz | |
| LAN | 2 x Realtek® 5GbE LAN chips (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) | |
| PCI Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode, AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x8 mode; Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| Processor Support | AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| RAM Type/Bus/Max | Support for DDR5 9000(O.C) /8800(O.C) /8600(O.C) /8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.; Support for DDR5 5200/4800 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | |
| Socket | AMD Socket AM5 | |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs; 4 x SATA 6Gb/s connectors | |
| Warranty | ||
| Weight | ||
| Wireless & Bluetooth | MediaTek Wi-Fi 7 MT7927, RZ738 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard |
| SKU | 837014 |
| MPN | M/B X870E AERO X WOOD 1.0 |
| Brand | Gigabyte |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | ATX |
| Motherboard Chipset | AMD X870E |
| CPU Socket | AM5 |
| Memory Type | DDR5 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.gigabyte.com/ |
