X870E A MASTER X ICE AMD AM5 X870E/rev.1.0 ATX/MT7927

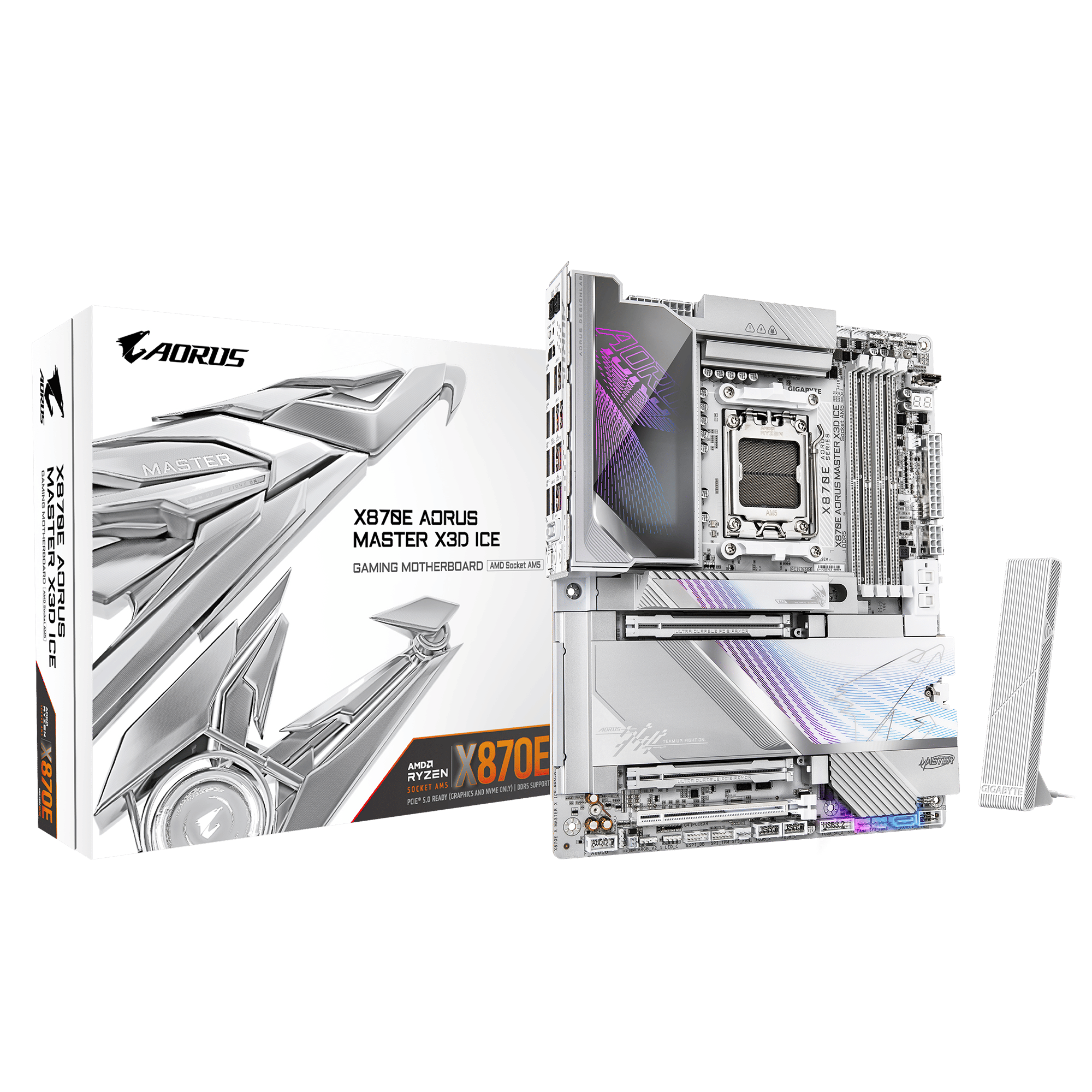

X870E AORUS MASTER X3D ICE
Key Features
- X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
- DDR5 OC up to 9000MT/s
- DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
- AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital twin 18+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPOMemory Module Support
- PCIe EZ-Latch Plus Duo : One click for screwless & quick release on dual PCIe slots
- M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 5*M.2 slots, including PCIe 5.0 x4
- PCB Thermal Plate : 14% thermal improvement and reinforced motherboard stability.
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
- Fast Networking : 10GbE LAN + 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
| Name | Value |
|---|---|
| Audio | Realtek® ALC1220 CODEC |
| Chipset | AMD X870E |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| I/O Connectors | 1 x Q-Flash Plus button, 1 x Clear CMOS button, 1 x reset button, 1 x power button, 1 x HDMI port, 2 x USB4® USB Type-C® ports (DisplayPorts), 1 x USB Type-C® port, with USB 3.2 Gen 2 support, 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support, 7 x USB 3.2 Gen 2 Type-A ports (red), 2 x RJ-45 ports, 2 x antenna connectors (2T2R), 2 x audio jacks, 1 x optical S/PDIF Out connector |
| Integrated CPU Graphics | Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz; Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz |
| LAN | Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1), Realtek® 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN2) |
| PCI Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x8 mode; Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Processor Support | AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0 and RAID 1 support for SATA storage devices |
| RAM Type/Bus/Max | Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Socket | AMD Socket AM5 |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs; 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs; 1 x M.2 connector (M2E_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x2 SSDs; 2 x SATA 6Gb/s connectors |
| Warranty | |
| Weight | |
| Wireless & Bluetooth | MediaTek Wi-Fi 7 MT7927, RZ738 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard |
| SKU | 834757 |
| MPN | X870E A MASTER X ICE |
| Brand | Gigabyte |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.gigabyte.com/ |
