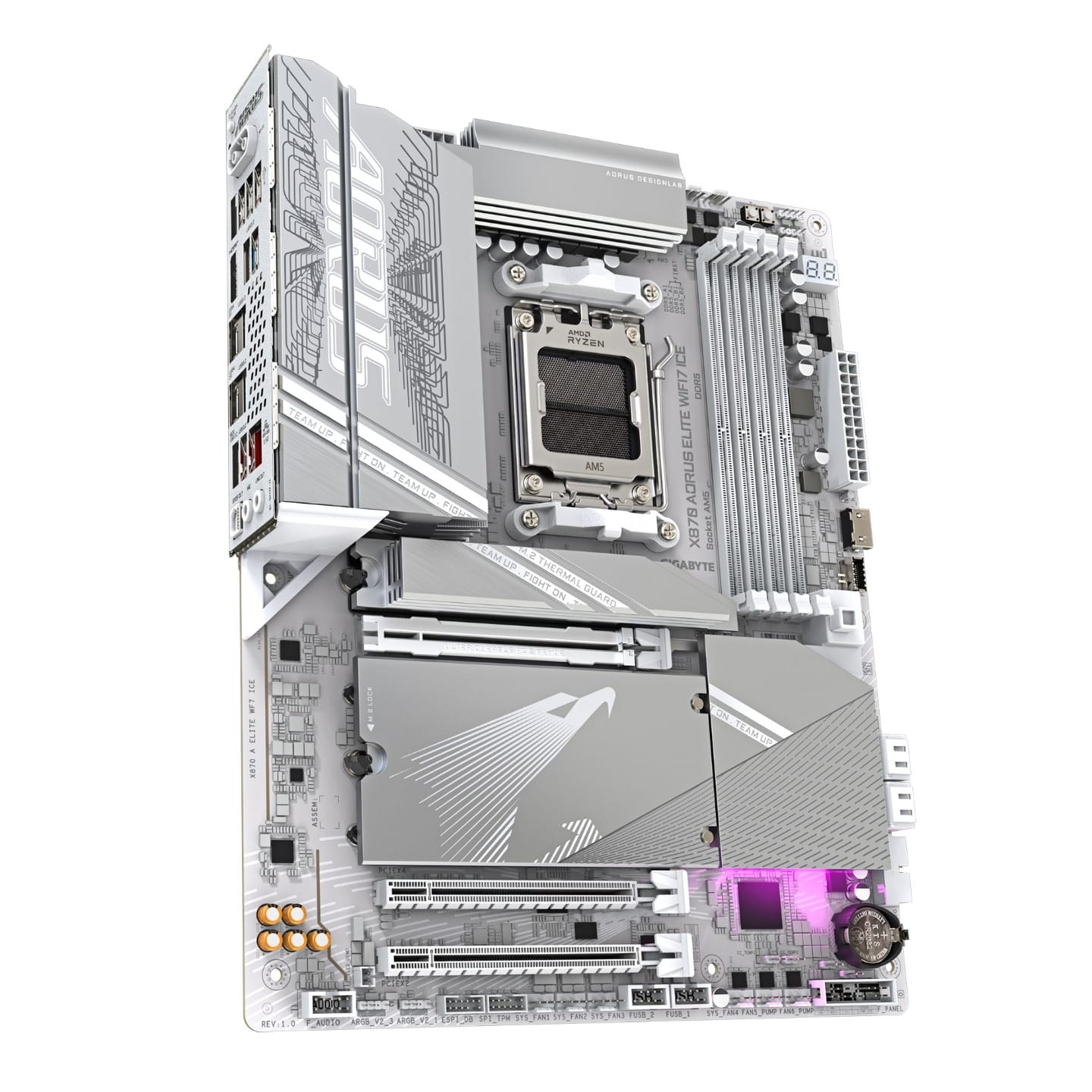

Gigabyte X870 AORUS ELITE WIFI7 ICE AM5 ATX Motherboard

Processor
Processor manufacturer The manufacturer that produced the processor.	AMD
Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.	Socket AM5
Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'.	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device.	Socket AM5
Maximum internal memory supported by processor	256 GB

Memory
Supported memory types Types of memory which can be used with the product.	DDR5-SDRAM
Number of memory slots	4
Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds.	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.	4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
Supported memory clock speed (max)	8200 MHz
Maximum internal memory The maximum internal memory which is available in the product.	256 GB
Unbuffered memory
Maximum internal memory per slot	64 GB

Storage controllers
Supported storage drive types The type of storage drives the device is compatible with.	HDD & SSD
Supported storage drive interfaces	M.2
Number of HDDs supported The total number of hard drives that can be used in/with this product.	4
Number of storage drives supported How many storage drives can be fit into the product at once.	8
RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.	0, 1, 10

Graphics
Parallel processing technology support Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally, parallel processing makes programs run faster because there are more engines (CPUs or Cores) running it. In practice, it is often difficult to divide a program in such a way that separate CPUs or cores can execute different portions without interfering with each other. Most computers have just one CPU, but some models have several, and multi-core processor chips are becoming the norm. There are even computers with thousands of CPUs.	Not supported
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	4096 x 2160 pixels
HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
DirectX version DirectX is a collection of APIs (application programming interfaces) for easily handling tasks related to game programming on the Microsoft Windows operating system.	12.0
Discrete graphics support
Number of displays supported The number of displays that can be used with this product.	4
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	AMD Radeon Graphics

Internal I/O
USB 2.0 connectors The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s. USB 2.0 connectors are usually colored black.	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008, USB 3.0 adds a new transfer mode called "SuperSpeed," (distinguishable from USB 2.0 by either the blue colour of the port or the initials SS) capable of transferring data at up to 5Gbit/s—more than ten times as fast as the 480 Mbit/s top speed of USB 2.0.	1
USB 3.2 Gen 2x2 connectors	1
Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface.	4
Total number of SATA connectors	4
Front panel audio connector
Front panel connector
ATX Power connector (24-pin)
CPU fan connector
Number of CPU fan connectors	2
Number of chassis fan connectors	6
EPS power connector (8-pin)
Number of EPS power connectors (8-pin)	2
TPM connector
12V power connector
Number of water pump connectors	3
RGB LED pin header
Number of RGB LED pin headers	4

Rear panel I/O ports
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB4 Gen 3x2 ports quantity	2
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
HDMI version	2.1
DisplayPort version	1.4
Headphone outputs Number of sockets /ports where headphones are connected.	1
Microphone in The socket where a microphone is connected to the device.
S/PDIF out port S/PDIF (Sony/Philips Digital Interconnect Format) is a digital audio interconnect used in consumer audio equipment over relatively short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors.
WiFi-AP antenna jack	2

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 7 (802.11be)
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN controller model	MediaTek MT7925
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	5.4

Features
Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard.	AMD X870
Audio chip	Realtek ALC1220
Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.	7.1 channels
Product colour The colour e.g. red, blue, green, black, white.	White
PC health monitoring	Fan, Noise, Temperature, Voltage, Water cooling
Component for What this product is used as a part of (component for).	PC
Motherboard form factor Design of the motherboard (ATX, BTX etc).	ATX
Motherboard chipset family The category of motherboard chipset e.g. Intel, AMD.	AMD
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 11 x64

Expansion slots
PCI Express x16 (Gen 3.x) slots Places where PCI Express x16 (Gen 3.x) are placed inside and connected to the computer motherboard.	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	4
1st M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	22110
3rd M.2 highest PCI Express generation	5.0
4th M.2 largest key size	22110
4th M.2 highest PCI Express generation	4.0

BIOS
BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS.	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS jumper
Clear CMOS button
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7

Logistics data
Country of origin Country where the device is made. Aka Country of manufacture (COM).	China
Products per shipping (inner) case	1 pc(s)

Battery
Battery weight	3 g
Lithium weight per battery	0.07 g
Number of battery cells	1
Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd).	Lithium-Manganese Dioxide (LiMnO2)
Battery type Description of battery supplied with the product, such battery form factor (e.g. AA/AAA).	CR2032

Packaging data
Package width The distance from one side of the packaging to the other.	335 mm
Package depth The distance from the front to the back of the packaging.	270 mm
Package height The distance from the top to the bottom of the packaging.	80 mm
Package weight Weight of the packaged product.	2.74 kg

Weight & dimensions
Width The measurement or extent of something from side to side.	305 mm
Depth The distance from the front to the back of something.	244 mm
Height The measurement of the product from head to foot or from base to top.	35 mm

Packaging content
Batteries included
Antenna included An antenna (aerial) is built into the product or comes with it.
Screws included
Bundled software Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer.	Norton® Internet Security (OEM version) LAN bandwidth management software

Other features
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	2.4 kg

Technical details
Warranty period	3 year(s)
