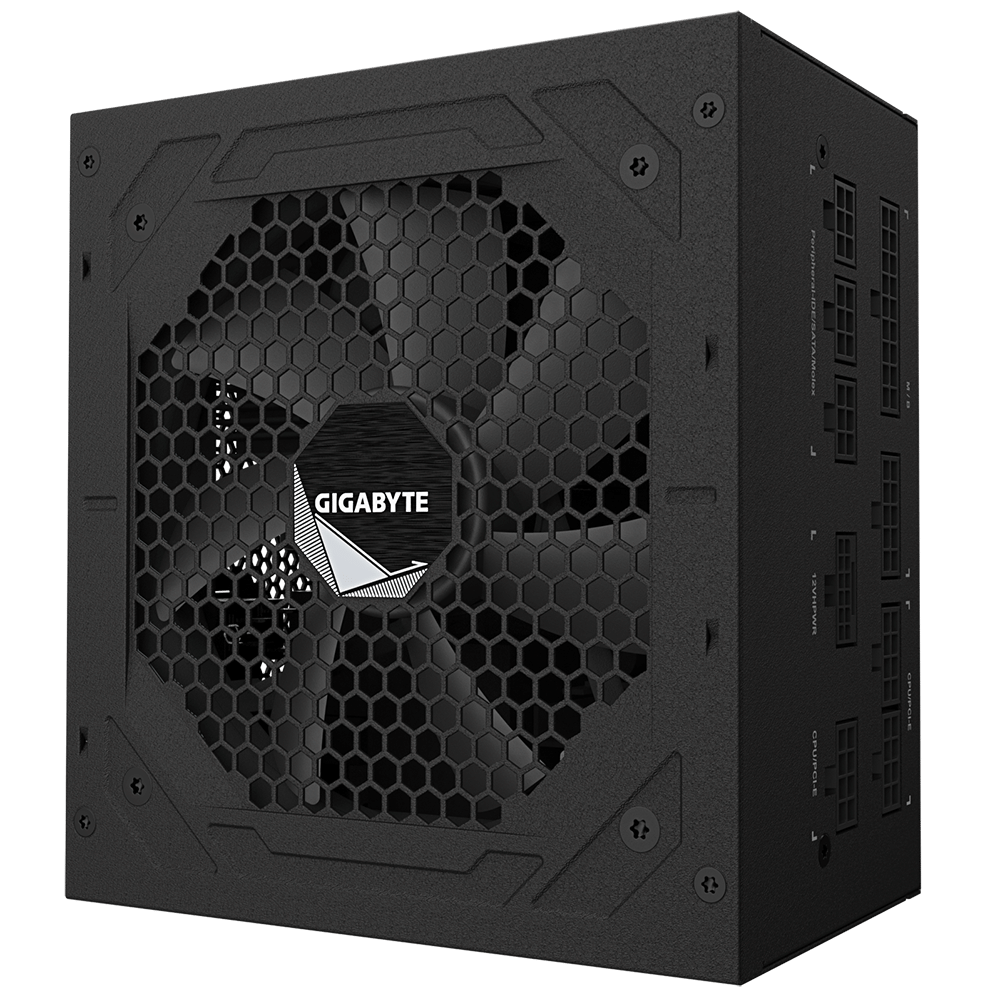

PCIe Gen 5.0, High quality native 16 pin cable supports 600W output, 80 PLUS Gold certified, 100 150ms, 5Y
KEY FEATURE
- Ultra Durable
- Main Japanese capacitors
- Enhanced thermal solution
- 120mm smart hydraulic bearing (HYB) fan
- OVP/OPP/SCP/UVP/OCP/OTP protection
- Support PCIe Gen 5.0 graphics card
- High quality native 16 pin cable supports 600W output
- 80 PLUS Gold certified
- Fully modular design
- Compact design
- 5 years warranty (Adjusted according to different regions)
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 850 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 12 - 6 A |
| Maximum input current (@110V) | 6 A |
| Maximum input current (@220V) | 12 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 105 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 105 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16 ms |
| Efficiency | 90% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 8 |
| Number of PATA power connectors | 3 |
| SATA power cable length | 150,600 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 2 |
| Peripheral (Molex) power cable length | 200,600 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 70 cm |
| CPU power connector (4+4 pin) |
 |
| ATX power connector (20+4 pin) |
|
| PCI Express connector |
|
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 40 dB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan location | Top |
| Illumination The device has illumination. |
 |
| Packaging content | |
| Cables included | CPU, PATA, Peripheral (Molex), SATA |
| Cable tie(s) included |
|
| Certificates | |
| Compliance certificates | CCC, CE, Federal Communications Commission (FCC), RoHS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 85 mm |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| Logistics data | |
| Warranty period | 5 year(s) |
| SKU | 710867 |
| MPN | GP-UD850GM PG5 |
| Brand | Gigabyte |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.gigabyte.com/ |
