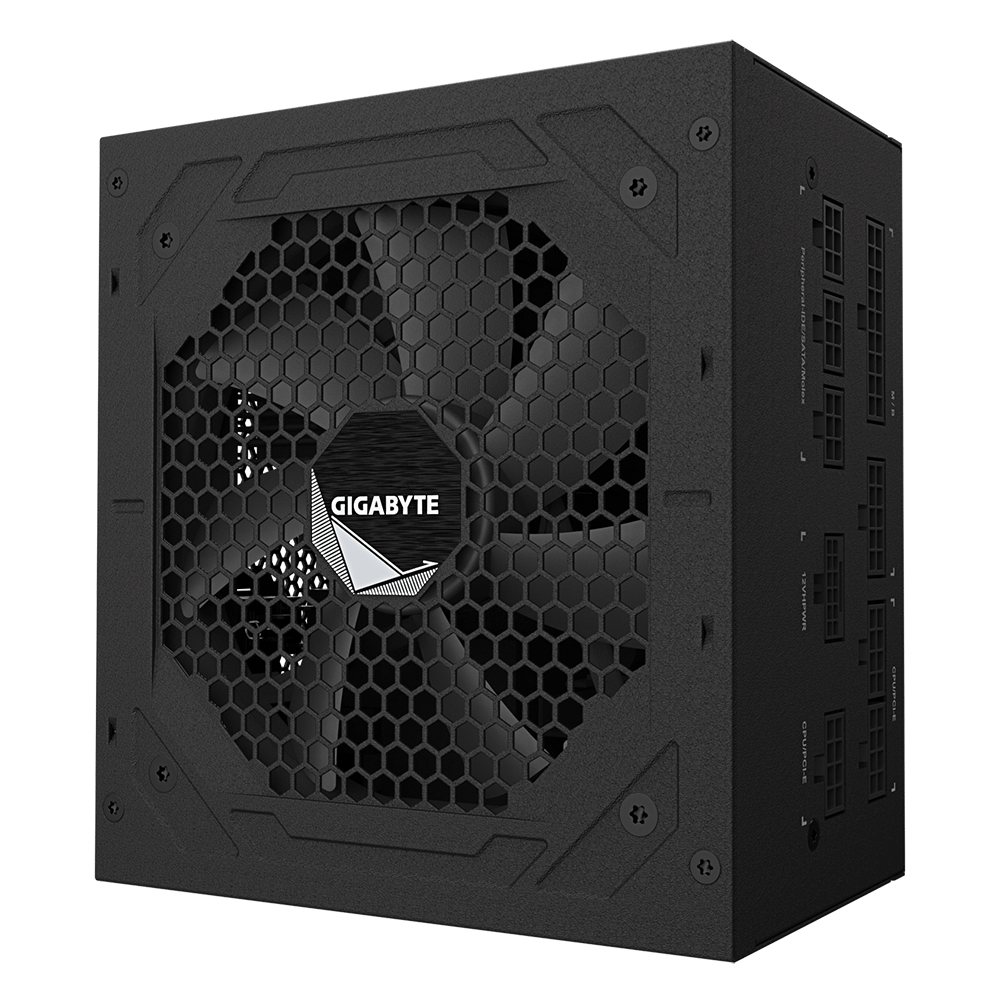

UD1000GM PG5 (rev. 2.0) Key Features Power Supply GIGABYTE Australia
KEY FEATURE
- Ultra Durable
- Main Japanese capacitors
- Enhanced thermal solution
- 120mm smart hydraulic bearing (HYB) fan
- OVP/OPP/SCP/UVP/OCP/OTP protection
- Support PCIe Gen 5.0 graphics card
- High quality native 16 pin cable supports 600W output
- 80 PLUS Gold certified
- Fully modular design
- Compact design
- 10 years warranty (Adjusted according to different regions)
| Name | Value |
|---|---|
| 80 PLUS | Gold |
| Cable Type | Flat, All black |
| Connectors | ATX/MB 20 4 Pin x 1: 610mm*1, CPU/EPS 4 4 Pin x 2: 600mm 200mm*1, PCI e 16 Pin x 1: 700mm*1, PCI e 6 2 Pin x 4: 600mm 150mm*2, SATA x 8: 600mm 150mm 150mm 150mm*2, 4 Pin Peripheral x 3 4 Pin floppy x 1: 500mm 120mm 120mm 150mm*1 |
| Dimension | 150 x 140 x 86 mm |
| Efficiency | 90% at typical load |
| Fan Type | 120mm Hydraulic Bearing(HYB)fan |
| Hold Up Time | >16ms |
| Input Current | 15 6.5A |
| Input Frequency | 60 50 Hz |
| Input Voltage | 100 240 Vac (full range) |
| MTBF | >100,000 hours |
| Output Capacity | 1000W |
| Power Good Signal | 100 150ms |
| Product Type | PG5 Power Supply |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Warranty | 10 Years |
| Weight | 1.61 Kg |
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 1000 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15 - 6.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16 ms |
| Efficiency | 90% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 150,600 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 3 |
| Peripheral (Molex) power cable length | 120,150,500 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 70 cm |
| CPU power connector (4+4 pin) |
 |
| CPU power cable length | 60 cm |
| Floppy drive power connector | 1 |
| PCI Express connector |
|
| Number of EPS connectors | 2 |
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 3.1 |
| Bearing technology | HYB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.48 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 618 mm |
| Package depth The distance from the front to the back of the packaging. | 269 mm |
| Package height The distance from the top to the bottom of the packaging. | 211 mm |
| Package weight Weight of the packaged product. | 2.64 kg |
| Package type The type of product package e.g. box. | Box |
| Logistics data | |
| Warranty period | 10 year(s) |
| SKU | 725444 |
| MPN | GP-UD1000GM PG5 V2 |
