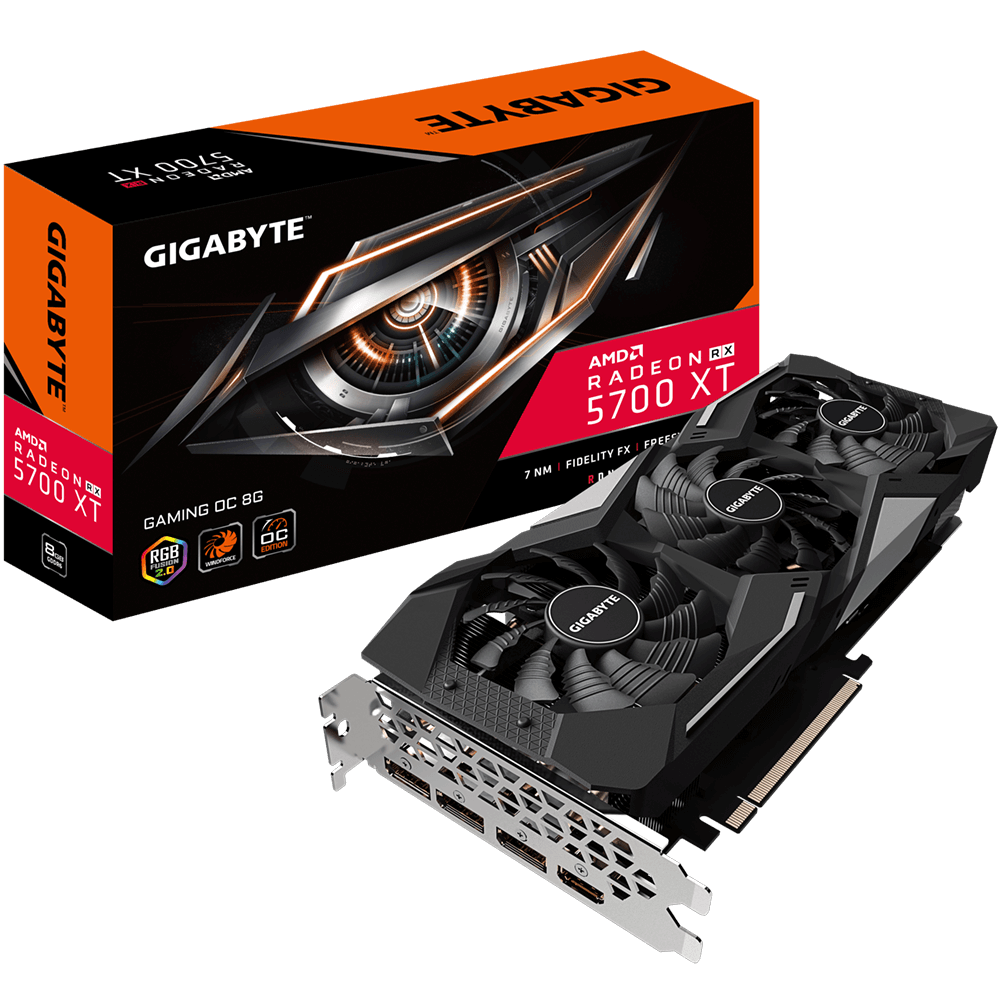

Gigabyte Radeon RX 5700 XT OC 8G Gaming Graphics Card

Item No:
352436
MPN:
GV-R57XTGAMING-OC-8GD
$599.00
Payment options

This product is currently not available!

Shipping Information
  • Unavailable for shipping
  • This product is not currently available for purchase
Store Availability
  • Unavailable at Bankstown
  • Unavailable at Blacktown
  • Unavailable at Castle Hill
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 5 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

Processor
CUDA CUDA (aka Compute Unified Device Architecture) is a parallel computing platform and programming model created by NVIDIA and implemented by the graphics processing units (GPUs) that they produce. CUDA gives program developers direct access to the virtual instruction set and memory of the parallel computational elements in CUDA GPUs.
Graphics processor family The category to which the graphics processor (GPU) belongs e.g. Southern Islands family of Radeon processors (made by AMD), GeForce 600 (made by NVIDIA). AMD
Graphics processor Also known as a graphics processing unit (GPU), this is a specialized electronic circuit designed to rapidly manipulate and alter memory to accelerate the creation of images in a frame buffer intended for output to a display. GPUs are used in embedded systems, mobile phones, personal computers, workstations, and game consoles. Modern GPUs are very efficient at manipulating computer graphics. Radeon RX 5700 XT
Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. 1650 MHz
Processor boost clock speed 1905 MHz
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. 7680 x 4320 pixels
Maximum displays per videocard 4
Memory
Discrete graphics adapter memory 8 GB
Graphics adapter memory type The type of memory used by the video card. Often a combination of dedicated memory (Video RAM or VRAM) and dynamic system memory is used. UMA stands for Unified Memory Architecture, and is a computer memory architecture that allows the graphics processing unit to share system memory. Other abreviations: RAM = Random Access Memory, SDRAM = synchronous dynamic RAM, DDR = double-data-rate. GDDR6
Memory bus Hardware and software that connects the main memory to the memory controller in computer systems. Originally, general-purpose buses like VMEbus and the S-100 bus were used, but to reduce latency, modern memory buses are designed to connect directly to DRAM chips, and thus are designed by chip standards bodies such as JEDEC. 256 bit
Memory clock speed The frequency at which the memory (e.g. RAM) runs. 14000 MHz
Memory bandwidth (max) 448 GB/s
Ports & interfaces
Interface type PCI Express x16 3.0
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. 1
HDMI version 2.0b
DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. 3
DisplayPort version 1.4
Performance
DirectX version DirectX is a collection of APIs (application programming interfaces) for easily handling tasks related to game programming on the Microsoft Windows operating system. 12.0
OpenGL version OpenGL (Open Graphics Library) is a specification defining a cross-language cross-platform API for writing applications that produce 3D computer graphics (and 2D computer graphics as well). The interface consists of over 250 different function calls which can be used to draw complex three-dimensional scenes from simple primitives. 4.6
Design
Cooling type The method used to cool the device or to cool the air around the device. Active
Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). 3 fan(s)
Illumination The device has illumination.
Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. Multi
Product colour The colour e.g. red, blue, green, black, white. Black
Power
Minimum system power supply The lowest power that is needed. 600 W
Weight & dimensions
Depth The distance from the front to the back of something. 279.9 mm
Height The measurement of the product from head to foot or from base to top. 49.5 mm
Width The measurement or extent of something from side to side. 114.3 mm
Packaging data
Manual
Drivers included
More Information
SKU 352436
MPN GV-R57XTGAMING-OC-8GD
Brand Gigabyte
Product Condition Brand New/Unused
GPU Series AMD Radeon RX 5700 XT
Graphics RAM Size 8 GB
Stock Availability Available for Shipping, In Stock at Castle Hill
Product Use Gaming
Warranty Period 3 Years Warranty
Warranty Contact https://www.gigabyte.com/
