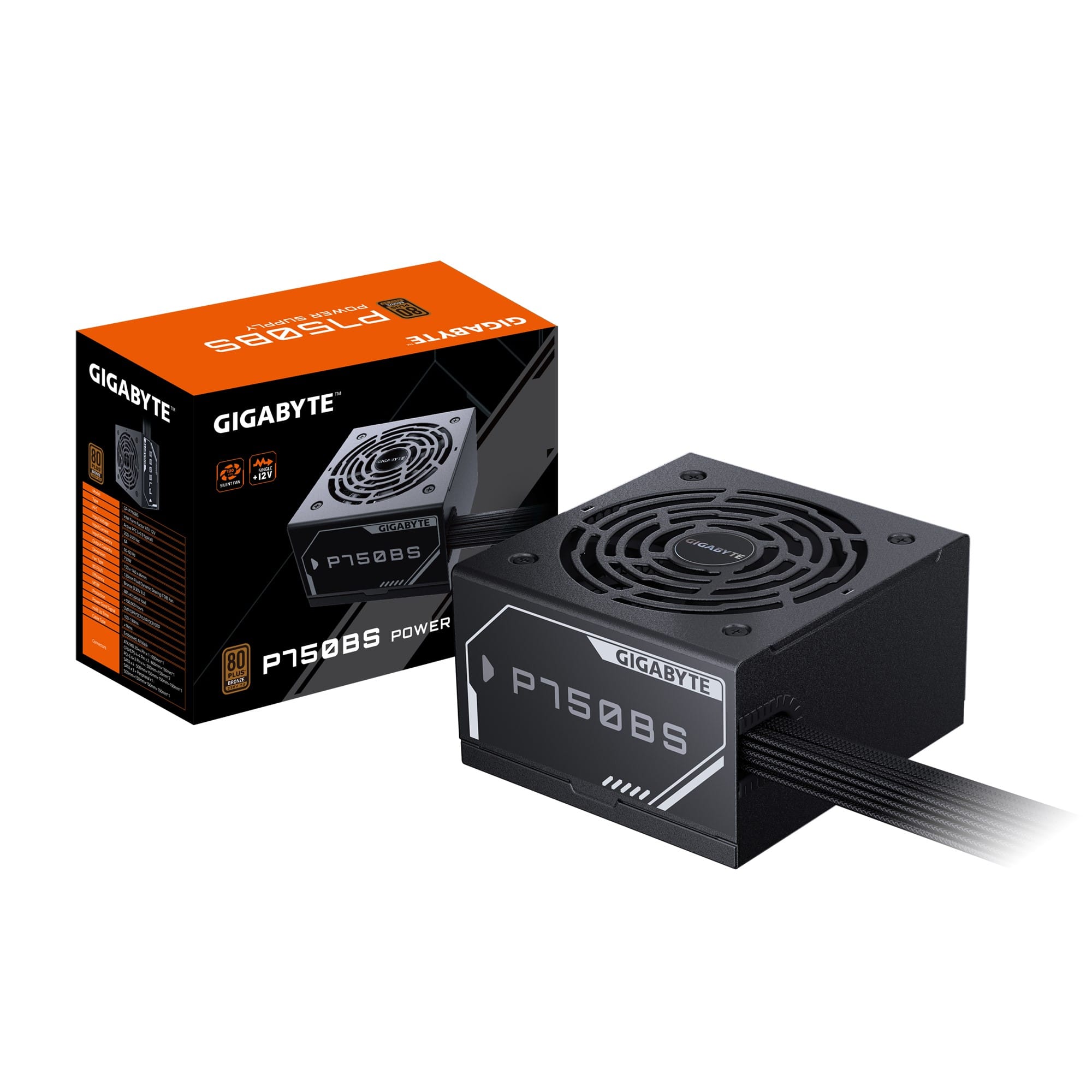

Gigabyte P750BS Power Supply, 750W, ATX12V, 80 PLUS Bronze Fan, Type 120mm Fluid Dynamic Bearing fan
Gigabyte P750BS Power Supply, 750W, ATX12V, 80 PLUS Bronze Fan, Type 120mm Fluid Dynamic Bearing fan >100,000 hours, 3 years warranty
Model GP-P750BS
Type Intel Form Factor ATX 12V
PFC Active PFC (>0.9 typical)
Input Voltage 200-240 Vac
Input Current 6A
Input Frequency 60-50 Hz
Output Capacity 750W
Dimension 150 x 140 x 86 mm
Fan Type 120mm Fluid Dynamic Bearing (FDB) Fan
80 Bronze (230V EU)
Efficiency 88% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Embossed, All black
Connectors
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1
PCI-E 6+2 Pin x 4 : 500mm+150mm*2
SATA x 4 : 500mm+150mm+150mm+150mm*1
SATA x 3 + Peripheral x1 : 500mm+150mm+150mm+150mm*1
Model GP-P750BS
Type Intel Form Factor ATX 12V
PFC Active PFC (>0.9 typical)
Input Voltage 200-240 Vac
Input Current 6A
Input Frequency 60-50 Hz
Output Capacity 750W
Dimension 150 x 140 x 86 mm
Fan Type 120mm Fluid Dynamic Bearing (FDB) Fan
80 Bronze (230V EU)
Efficiency 88% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Embossed, All black
Connectors
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1
PCI-E 6+2 Pin x 4 : 500mm+150mm*2
SATA x 4 : 500mm+150mm+150mm+150mm*1
SATA x 3 + Peripheral x1 : 500mm+150mm+150mm+150mm*1
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 750 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 6 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16 ms |
| Efficiency | 88% |
| Power Good signal delay range | 100 - 150 ms |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 7 |
| SATA power cable length | 150,500 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 2 |
| Peripheral (Molex) power cable length | 150,600 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) |
 |
| ATX power connector (20+4 pin) |
|
| Floppy drive power connector | 2 |
| Floppy disk drive connector |
|
| PCI Express connector |
|
| Cabling type | Non-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| Bearing technology | FDB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan location | Top |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.22 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 254 mm |
| Package depth The distance from the front to the back of the packaging. | 206 mm |
| Package height The distance from the top to the bottom of the packaging. | 117 mm |
| Package weight Weight of the packaged product. | 2.68 kg |
| Package type The type of product package e.g. box. | Box |
| Logistics data | |
| Warranty period | 3 year(s) |
| SKU | 819373 |
| MPN | GP-P750BS |
| Brand | Gigabyte |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.gigabyte.com/ |
