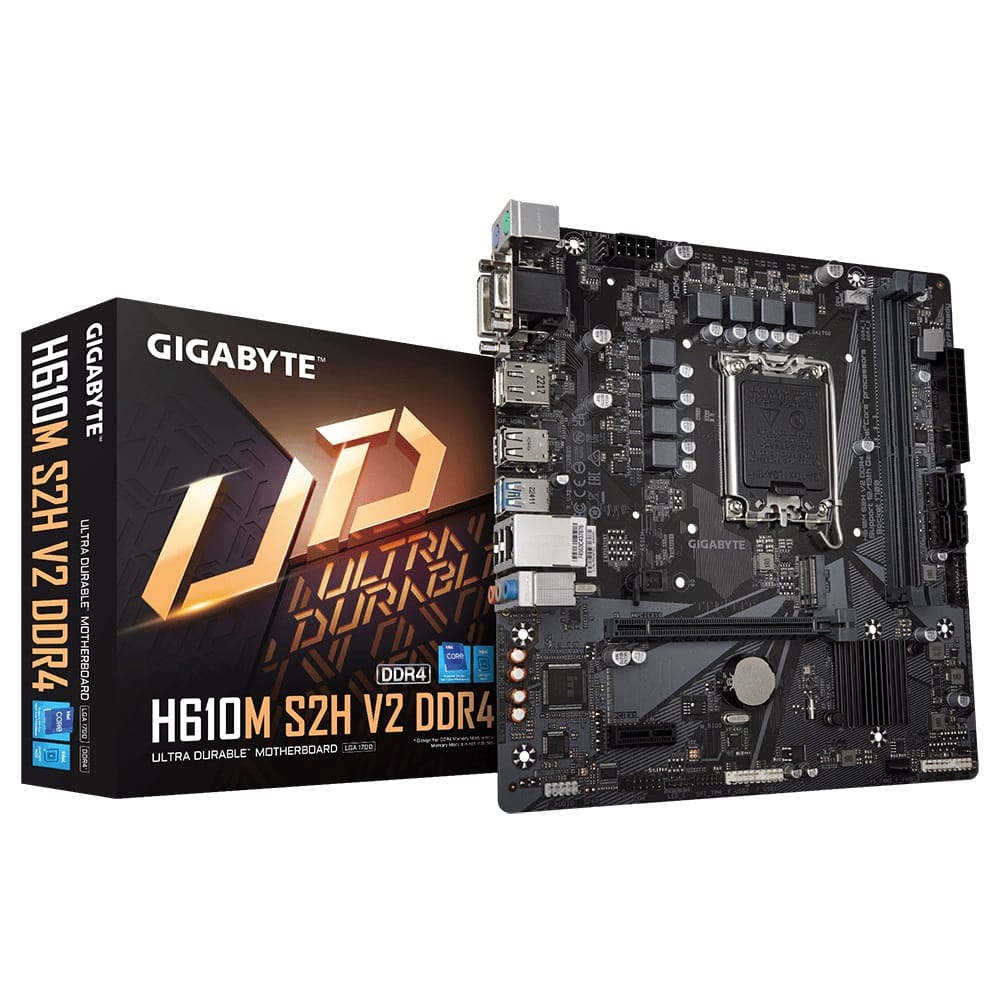

Gigabyte H610M S2H V2 DDR4 1.0 Intel LGA 1700 mATX Motherboard, 2x DDR4 ~64GB, 1x PCI x16=, 1x PCI=E x1, 1x M.2, 4x SATA, 2x USB3.2, 4x USB 2
Gigabyte H610M S2H V2 DDR4 1.0 Intel LGA 1700 mATX Motherboard, 2x DDR4 ~64GB, 1x PCI x16=, 1x PCI=E x1, 1x M.2, 4x SATA, 2x USB3.2, 4x USB 2
FEATURES:
Supports 13th/12th Gen Intel Core Series Processors
Dual Channel Non ECC Unbuffered DDR4, 2 DIMMs
6 1 1 Hybrid Digital VRM Design
GbE LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2
DisplayPort / HDMI / DVI D / D Sub Ports for Multiple Display
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti Sulfur Resistors Design
SPECIFICATIONS:
CPU
LGA1700 socket: Support for 12th Generation Intel Core , Pentium Gold and Celeron Processors*
L3 cache varies with CPU
* Please refer to CPU Support List for more information.
Memory
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Onboard Graphics
1 x D Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI D port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Expansion Slots:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
1 x M.2 connector
4 x SATA
USB:
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D Sub port
1 x DVI D port
1 x DisplayPort
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ 45 port
3 x audio jacks
Operating System
Support for Windows 11 64 bit
Support for Windows 10 64 bit
Form Factor
Micro ATX Form Factor; 23.0cm x 21.5cm
FEATURES:
Supports 13th/12th Gen Intel Core Series Processors
Dual Channel Non ECC Unbuffered DDR4, 2 DIMMs
6 1 1 Hybrid Digital VRM Design
GbE LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2
DisplayPort / HDMI / DVI D / D Sub Ports for Multiple Display
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti Sulfur Resistors Design
SPECIFICATIONS:
CPU
LGA1700 socket: Support for 12th Generation Intel Core , Pentium Gold and Celeron Processors*
L3 cache varies with CPU
* Please refer to CPU Support List for more information.
Memory
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Onboard Graphics
1 x D Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI D port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Expansion Slots:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
1 x M.2 connector
4 x SATA
USB:
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D Sub port
1 x DVI D port
1 x DisplayPort
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ 45 port
3 x audio jacks
Operating System
Support for Windows 11 64 bit
Support for Windows 10 64 bit
Form Factor
Micro ATX Form Factor; 23.0cm x 21.5cm
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | LGA 1700 |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1700 |
| Maximum internal memory supported by processor | 64 GB |
| Memory | |
| Supported memory types Types of memory which can be used with the product. | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds. | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. | 2133,2400,2666,2933,3000,3200 MHz |
| Supported memory clock speed (max) | 3200 MHz |
| Maximum internal memory The maximum internal memory which is available in the product. | 64 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Unbuffered memory |
 |
| Storage controllers | |
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA |
| Number of HDDs supported The total number of hard drives that can be used in/with this product. | 4 |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 5 |
| Graphics | |
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
|
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| DirectX version DirectX is a collection of APIs (application programming interfaces) for easily handling tasks related to game programming on the Microsoft Windows operating system. | 12.0 |
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Intel® HD Graphics |
| Internal I/O | |
| USB 2.0 connectors The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s. USB 2.0 connectors are usually colored black. | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008, USB 3.0 adds a new transfer mode called "SuperSpeed," (distinguishable from USB 2.0 by either the blue colour of the port or the initials SS) capable of transferring data at up to 5Gbit/s—more than ten times as fast as the 480 Mbit/s top speed of USB 2.0. | 1 |
| Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface. | 4 |
| Total number of SATA connectors | 4 |
| Front panel audio connector |
|
| Front panel connector |
|
| ATX Power connector (24-pin) |
|
| CPU fan connector |
|
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) |
|
| Number of COM connectors | 1 |
| TPM connector |
|
| Serial port headers | 1 |
| 12V power connector |
|
| RGB LED pin header |
|
| Rear panel I/O ports | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| PS/2 ports quantity The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2. | 2 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| DVI-D ports quantity This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-D means DVI digital, which means it can only support digital, but not analog. | 1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Microphone in The socket where a microphone is connected to the device. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Features | |
| Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. | Intel H610 Express |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 7.1 channels |
| Product colour The colour e.g. red, blue, green, black, white. | Brown |
| PC health monitoring | Fan, LED, Temperature, Voltage, Water cooling |
| Component for What this product is used as a part of (component for). | PC |
| Motherboard form factor Design of the motherboard (ATX, BTX etc). | micro ATX |
| Motherboard chipset family The category of motherboard chipset e.g. Intel, AMD. | Intel |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Power source type What the power source is. | ATX |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
| BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS. | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper |
|
| Clear CMOS button |
|
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Logistics data | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | China |
| Products per shipping (inner) case | 1 pc(s) |
| Battery | |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type Description of battery supplied with the product, such battery form factor (e.g. AA/AAA). | CR2032 |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 265 mm |
| Package depth The distance from the front to the back of the packaging. | 265 mm |
| Package height The distance from the top to the bottom of the packaging. | 54 mm |
| Package weight Weight of the packaged product. | 857 g |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 230 mm |
| Depth The distance from the front to the back of something. | 215 mm |
| Height The measurement of the product from head to foot or from base to top. | 35 mm |
| Packaging content | |
| Batteries included |
|
| Bundled software Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer. | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Other features | |
| Supported DIMM module capacities | 8GB, 16GB |
| Technical details | |
| Warranty period | 3 year(s) |
| SKU | 723578 |
| MPN | H610M S2H V2 DDR4 1.0 |
| Brand | Gigabyte |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | Micro-ATX |
| Motherboard Chipset | Intel H610 |
| CPU Socket | LGA 1700 |
| Memory Type | DDR4 |
| Memory Form Factor | DIMM |
