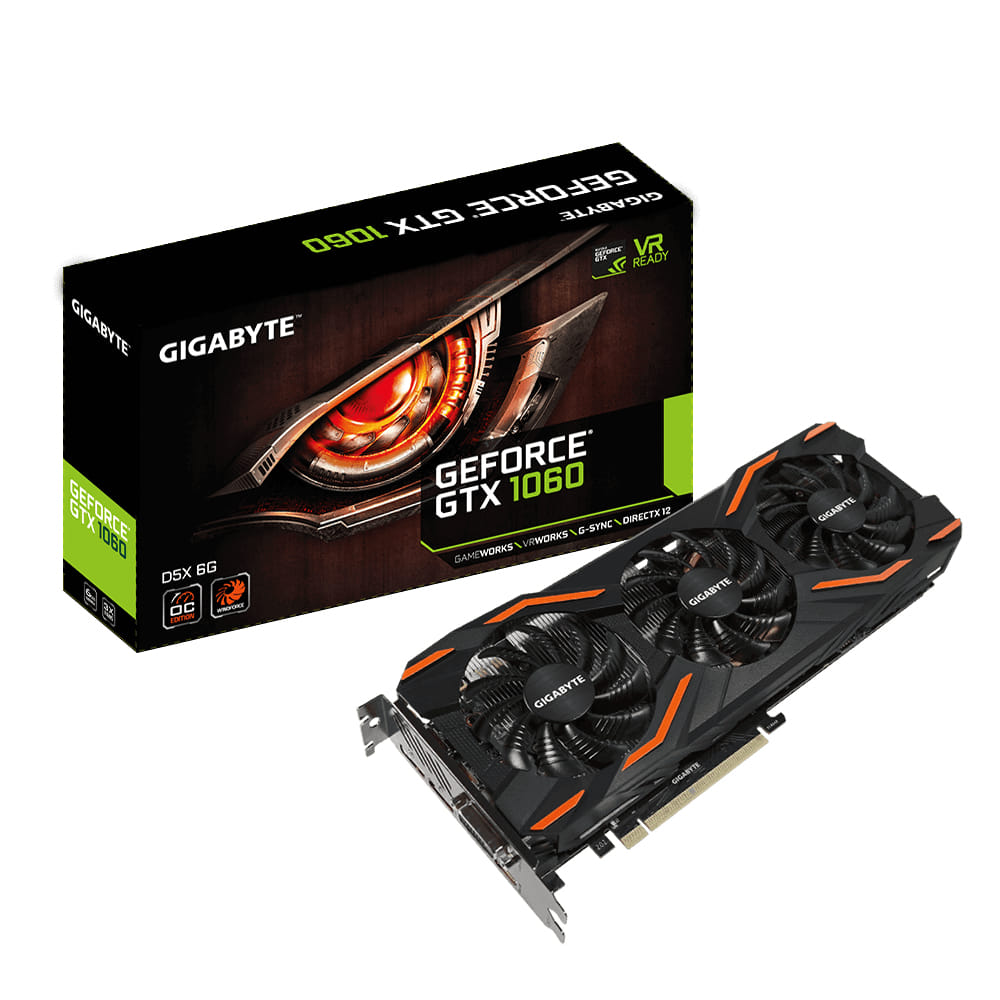

GIGABYTE GeForce GTX 1060 WINDFORCE OC D5X 6G, GeForce GTX 1060, 6 GB, GDDR5X, 192 bit, 7680 x 4320 pixels, PCI Express x16 3.0
WINDFORCE 3X Cooling System
The WINDFORCE 3X cooling system features 3 pure copper composite heat-pipes, special fin architecture, unique blade fan design, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
WINDFORCE 3X Cooling System-Fans
Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.
3D Active Fan
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming.
WINDFORCE 3X Cooling System-Heat Pipes
Composite heat-pipes
The composite heat-pipes combine thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases 29% cooling capacity.
Heat Pipe Direct Touch
The pure copper heat pipes are shaped to maximize the direct contact area to the GPU.
Outlook
Stylish Metal Back Plate
The metal back plate offers rigidity and protection to the structure, while adding a sleek, clean look to the product.
Performance
One-click Super overclocking
With a simple click on AORUS Engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.
Durability
Smart Power LED indicators
Be alert when PCI-E voltage is unstable with the smart power LED indicator.
Ultra Durable Materials
Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.
Built for OverClocking with 6+1 power phases
Compared to reference design, the 6+1 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output. (*reference card 3+1)
Intuitive Utility
AORUS Engine
The cutting edge intuitive interface allows you to tune the clock speeds, voltage, fan performance, and power target in real-time according to your own gaming requirement.
The WINDFORCE 3X cooling system features 3 pure copper composite heat-pipes, special fin architecture, unique blade fan design, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
WINDFORCE 3X Cooling System-Fans
Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.
3D Active Fan
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming.
WINDFORCE 3X Cooling System-Heat Pipes
Composite heat-pipes
The composite heat-pipes combine thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases 29% cooling capacity.
Heat Pipe Direct Touch
The pure copper heat pipes are shaped to maximize the direct contact area to the GPU.
Outlook
Stylish Metal Back Plate
The metal back plate offers rigidity and protection to the structure, while adding a sleek, clean look to the product.
Performance
One-click Super overclocking
With a simple click on AORUS Engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.
Durability
Smart Power LED indicators
Be alert when PCI-E voltage is unstable with the smart power LED indicator.
Ultra Durable Materials
Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.
Built for OverClocking with 6+1 power phases
Compared to reference design, the 6+1 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output. (*reference card 3+1)
Intuitive Utility
AORUS Engine
The cutting edge intuitive interface allows you to tune the clock speeds, voltage, fan performance, and power target in real-time according to your own gaming requirement.
| Processor | |
| CUDA CUDA (aka Compute Unified Device Architecture) is a parallel computing platform and programming model created by NVIDIA and implemented by the graphics processing units (GPUs) that they produce. CUDA gives program developers direct access to the virtual instruction set and memory of the parallel computational elements in CUDA GPUs. |
 |
| CUDA cores | 1280 |
| Graphics processor family The category to which the graphics processor (GPU) belongs e.g. Southern Islands family of Radeon processors (made by AMD), GeForce 600 (made by NVIDIA). | NVIDIA |
| Graphics processor Also known as a graphics processing unit (GPU), this is a specialized electronic circuit designed to rapidly manipulate and alter memory to accelerate the creation of images in a frame buffer intended for output to a display. GPUs are used in embedded systems, mobile phones, personal computers, workstations, and game consoles. Modern GPUs are very efficient at manipulating computer graphics. | GeForce GTX 1060 |
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 1556 MHz |
| Processor boost clock speed | 1771 MHz |
| Processor frequency (OC mode) | 1582 MHz |
| Processor boost clock speed (OC mode) | 1797 MHz |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 7680 x 4320 pixels |
| Parallel processing technology support Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally, parallel processing makes programs run faster because there are more engines (CPUs or Cores) running it. In practice, it is often difficult to divide a program in such a way that separate CPUs or cores can execute different portions without interfering with each other. Most computers have just one CPU, but some models have several, and multi-core processor chips are becoming the norm. There are even computers with thousands of CPUs. | Not supported |
| Maximum displays per videocard | 4 |
| FireStream A stream processor produced by Advanced Micro Devices (AMD) to use the stream processing/GPGPU (General Purpose Graphics Processing Units) concept for heavy floating-point computations to target various industries, such as the High Performance Computing (HPC), scientific, and financial sectors. Originally developed by ATI Technologies until the company was acquired by AMD in 2006, the product line was previously branded as both ATI FireStream and AMD Stream Processor. |
 |
| Memory | |
| Discrete graphics card memory | 6 GB |
| Graphics card memory type The type of memory used by the video card. Often a combination of dedicated memory (Video RAM or VRAM) and dynamic system memory is used. UMA stands for Unified Memory Architecture, and is a computer memory architecture that allows the graphics processing unit to share system memory. Other abreviations: RAM = Random Access Memory, SDRAM = synchronous dynamic RAM, DDR = double-data-rate. | GDDR5X |
| Memory bus Hardware and software that connects the main memory to the memory controller in computer systems. Originally, general-purpose buses like VMEbus and the S-100 bus were used, but to reduce latency, modern memory buses are designed to connect directly to DRAM chips, and thus are designed by chip standards bodies such as JEDEC. | 192 bit |
| Memory clock speed The frequency at which the memory (e.g. RAM) runs. | 8008 MHz |
| Memory bandwidth (max) | 192 GB/s |
| Ports & interfaces | |
| Interface type | PCI Express x16 3.0 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 2.0b |
| DVI-D ports quantity This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-D means DVI digital, which means it can only support digital, but not analog. | 1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 3 |
| DisplayPort version | 1.4 |
| Performance | |
| PhysX PPU (microprocessor) expansion card designed by Ageia to accelerate PhysX-enabled video games. |
|
| TV tuner integrated Device has an in-built TV tuner. |
|
| DirectX version DirectX is a collection of APIs (application programming interfaces) for easily handling tasks related to game programming on the Microsoft Windows operating system. | 12.0 |
| OpenGL version OpenGL (Open Graphics Library) is a specification defining a cross-language cross-platform API for writing applications that produce 3D computer graphics (and 2D computer graphics as well). The interface consists of over 250 different function calls which can be used to draw complex three-dimensional scenes from simple primitives. | 4.5 |
| Virtual Reality (VR) ready |
|
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Dual Link DVI A dual-link DVI interface sends data over both of the DVI links to the monitor, and this is how higher resolutions are achieved. With dual-link DVI, a resolution of 2048 x 1536 is possible. |
|
| NVIDIA G-SYNC |
|
| Design | |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 3 fan(s) |
| Form factor The shape or design of the product. | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Number of slots | 2 |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Orange |
| Power | |
| Minimum system power supply The lowest power that is needed. | 400 W |
| Supplementary power connectors | 1x 8-pin |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 |
| Weight & dimensions | |
| Length The measurement or extent of something from end to end. | 280 mm |
| Depth The distance from the front to the back of something. | 41 mm |
| Height The measurement of the product from head to foot or from base to top. | 114 mm |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| SKU | 328601 |
| MPN | GV-N1060WF3OC-6GD |
| Brand | Gigabyte |
| Product Condition | Brand New/Unused |
| Product Use | General |
