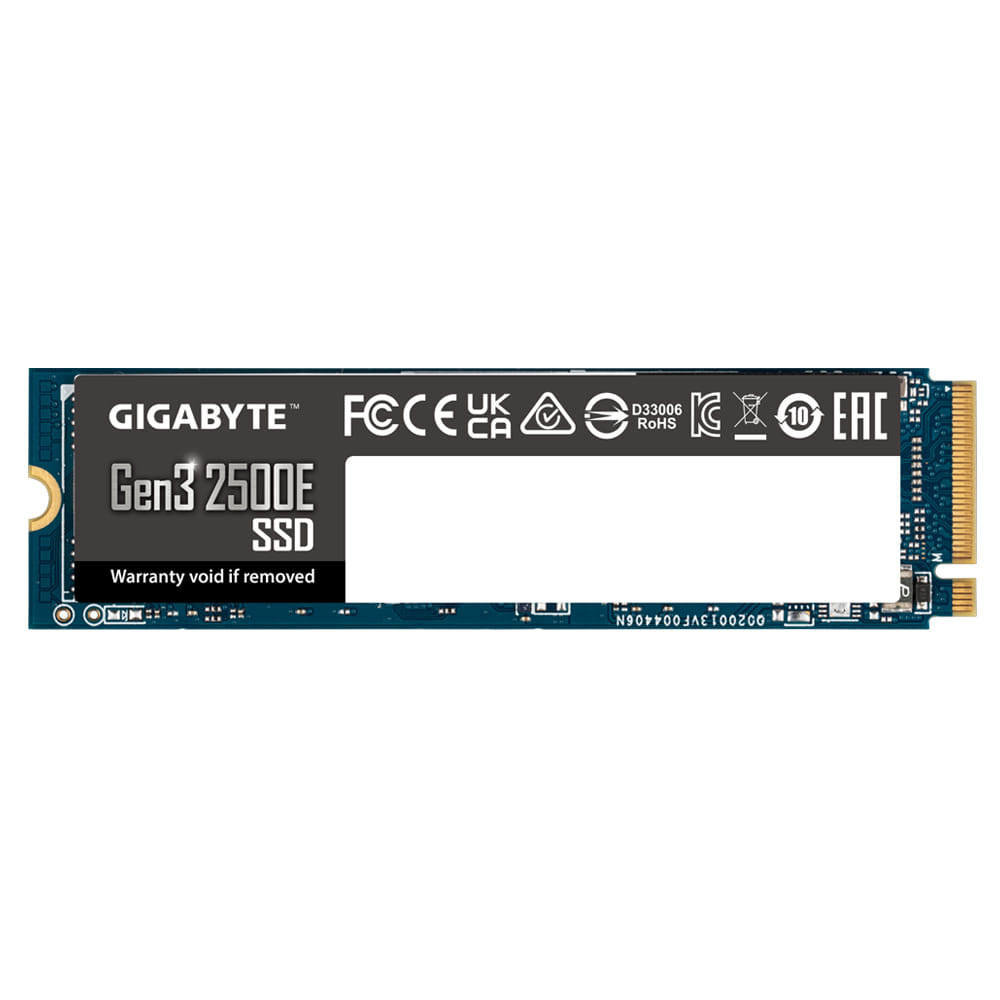

Gigabyte G3 2500E SSD 2TB M2 PCle 3.0x4 2400/1800 MB/s 130k/350Kl MTBF 1.5m hr Limited 3 years or 240TBW
Gigabyte G3 2500E SSD 1TB M2 PCle 3.0x4 2400/1800 MB/s 130k/350Kl MTBF 1.5m hr Limited 3 years or 240TBW
Interface
PCIe 3.0x4, NVMe1.3 interface
Form Factor
M.2 2280
Total Capacity
1000GB
External DDR Cache
N/A
Sequential Read speed
Up to 2400 MB/s
Sequential Write speed
Up to 1800 MB/s
Random Read IOPS
Up to 130K
Random Write IOPS
Up to 350K
Dimension
22 x 2.3 x 80 mm
Mean time between failure (MTBF)
1.5 million hours
Power Consumption (Active)
Average R : 2670mW
Average W : 3200mW
Power Consumption (Idle)
Idle : 30mW
L1.2 < 5mW
Temperature (Operating)
0 DegC to 70 DegC
Temperature (Storage)
-40 DegC to 85 DegC
Warranty
1. Limited 3 years or 240TBW.
2. Limited warranty based on 3 years or 240TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
3. When the usage of an NVME SSD as indicated by the Percentage Used (SMART ID: 05) in SMART page of GIGABYTE SSD toolbox reaches 100 means out of warranty. (A new unused product will show the number of 0)
Interface
PCIe 3.0x4, NVMe1.3 interface
Form Factor
M.2 2280
Total Capacity
1000GB
External DDR Cache
N/A
Sequential Read speed
Up to 2400 MB/s
Sequential Write speed
Up to 1800 MB/s
Random Read IOPS
Up to 130K
Random Write IOPS
Up to 350K
Dimension
22 x 2.3 x 80 mm
Mean time between failure (MTBF)
1.5 million hours
Power Consumption (Active)
Average R : 2670mW
Average W : 3200mW
Power Consumption (Idle)
Idle : 30mW
L1.2 < 5mW
Temperature (Operating)
0 DegC to 70 DegC
Temperature (Storage)
-40 DegC to 85 DegC
Warranty
1. Limited 3 years or 240TBW.
2. Limited warranty based on 3 years or 240TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
3. When the usage of an NVME SSD as indicated by the Percentage Used (SMART ID: 05) in SMART page of GIGABYTE SSD toolbox reaches 100 means out of warranty. (A new unused product will show the number of 0)
| Features | |
| NVMe version | 1.3 |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| SSD capacity The Solid State Drive's data storage capacity. | 2 TB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 3.0 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D NAND |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Component for What this product is used as a part of (component for). | PC/Laptop |
| Read speed The speed at which a device can read data. | 2400 MB/s |
| Write speed The speed at which a device can write data. | 2000 MB/s |
| JEDEC standard |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1500000 h |
| TBW rating | 480 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 80 mm |
| Depth The distance from the front to the back of something. | 23 mm |
| Height The measurement of the product from head to foot or from base to top. | 22 mm |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| SKU | 754628 |
| MPN | G325E2TB |
| Brand | Gigabyte |
| Product Condition | Brand New/Unused |
| Drive Form Factor | M.2 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.gigabyte.com/ |
