Model Name: B760M G WIFI PLUS Intel B760/Socket1700/rev.1.1 Micro ATX/9560NGW

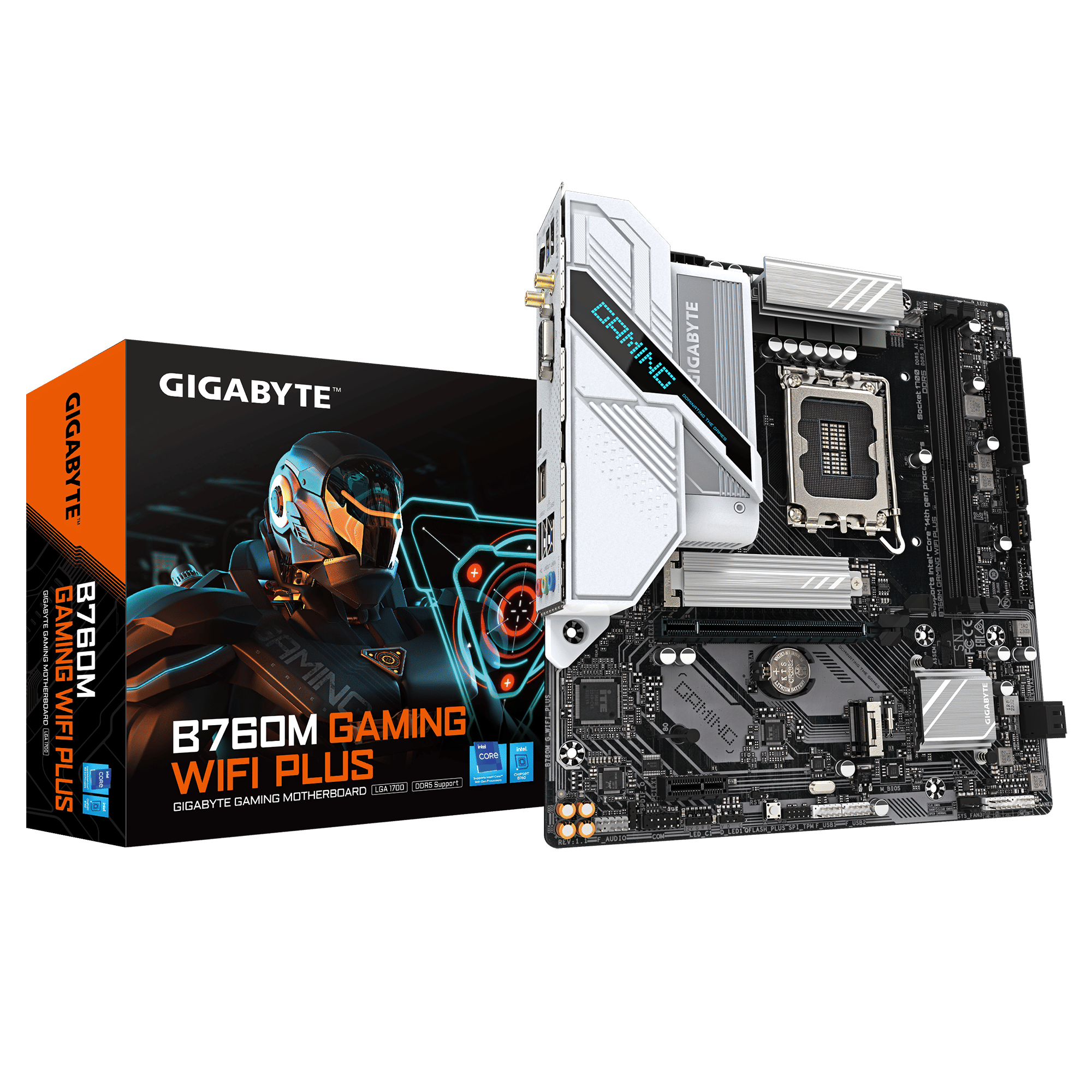

B760M GAMING WIFI PLUS
- Supports Intel® Core 14th/ 13th /12th processors
- Unparalleled Performance 1/4Hybrid 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR5 1/42*DIMMs XMP Memory Module Support
- Next Generation Storage 1/42*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch 1/4PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks 1/42.5GbE LAN & Wi-Fi 802.11ac
- Extended Connectivity 1/4Rear USB-C® 5Gb/s, DP, HDMI, D-Sub
- Smart Fan 6 1/4Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus 1/4Update BIOS Without Installing the CPU, Memory and Graphics Card
| Name | Value |
|---|---|
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| Chipset | Intel® B760 Express Chipset |
| Form Factor | Micro ATX Form Factor; 24.4cm x 22.5cm |
| I/O Connectors | Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers; 1 x PS/2 keyboard/mouse port, 2 x SMA antenna connectors (1T1R) / (2T2R), 1 x D-Sub port, 1 x HDMI port, 1 x DisplayPort, 3 x USB 3.2 Gen 1 ports, 1 x USB Type-C® port, with USB 3.2 Gen 1 support, 1 x RJ-45 port, 3 x audio jacks |
| Integrated CPU Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| PCI Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Processor Support | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| RAM Type/Bus/Max | 14th and 13th Generation Intel® Core i9/i7 Processors: - Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules 13th Generation Intel® Core i5/i3 and 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors: - Support for DDR5 4800/4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Socket | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors |
| Storage Interface | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors |
| Warranty | |
| Weight | |
| Wireless & Bluetooth | Intel® Wireless-AC 9560 - WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 5.1 - Support for 11ac 160MHz wireless standard |
| SKU | 793193 |
| MPN | B760M G WIFI PLUS |
| Brand | Gigabyte |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | Micro-ATX |
| Motherboard Chipset | Intel B760 |
| CPU Socket | LGA 1700 |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.gigabyte.com/ |
