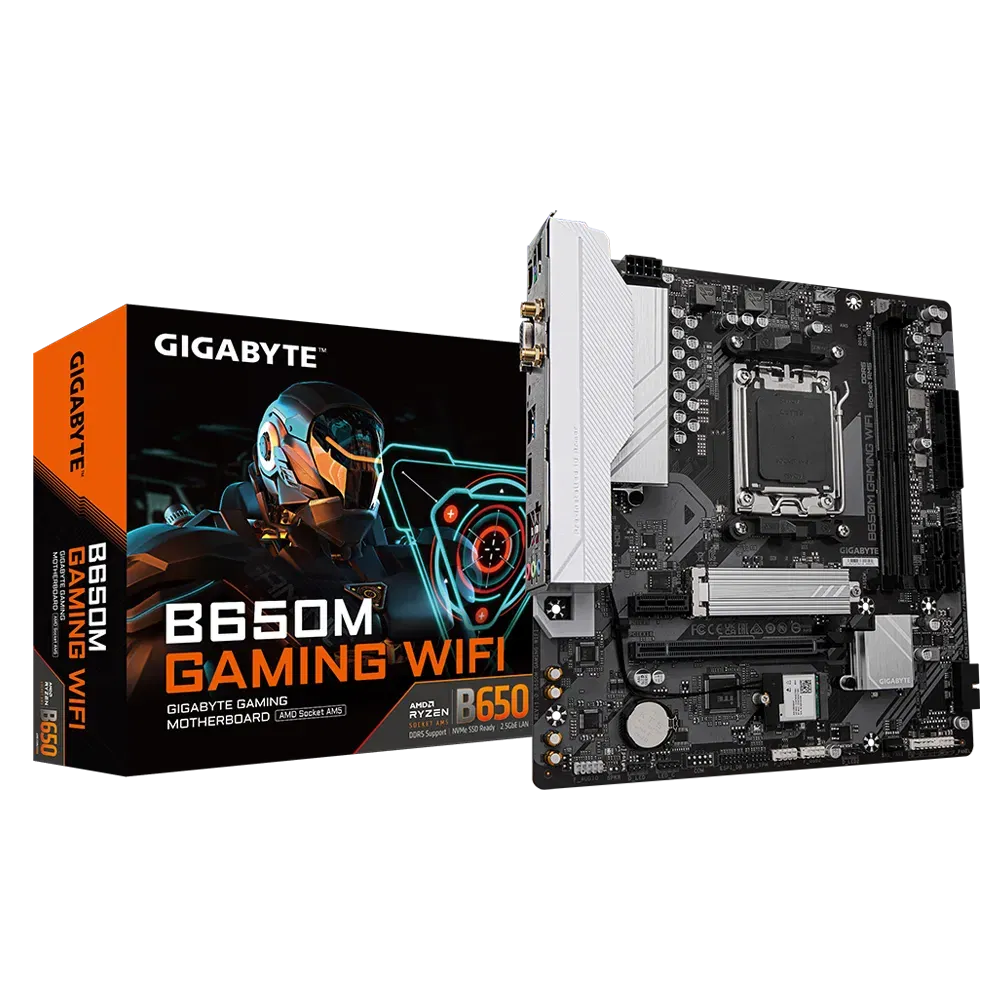

B650M GAMING WIFI (rev. 1.0)
B650M GAMING WIFI
AMD Socket AM5 1/4Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors
Unparalleled Performance 1/45+2+2 Phases Digital VRM Solution
Dual Channel DDR5 1/42*SMD DIMMs with AMD EXPO & Intel® XMP Memory Module Support
SuperSpeed Storage 1/4PCIe 4.0 x4 M.2 Connector
EZ-Latch 1/4PCIe x16 Slot with Quick Release Design
Fast Networks 1/42.5GbE LAN
Extended Connectivity 1/4HDMI , D-sub
Smart Fan 6 1/4Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus 1/4Update BIOS Without Installing the CPU, Memory and Graphics Card
Durable Performance
GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital VRM Design
5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
EXPO & XMP Support
DDR5 EXPO & XMP Overclocking Up to 6400 and Beyond
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage
802.11ac Wi-Fi
Faster and Better Coverage with Dual Band 802.11ac Wi-Fi + BT 4.2 Module The onboard 802.11ac Wi-Fi module supports Dual Band and up to 433 Mbps, 3x faster Wi-Fi speed than 802.11n and also support BLUETOOTH 4.2
2.5GbE LAN
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.
PCIe 4.0 Hardware Design
GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
| Name | Value |
|---|---|
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Chipset | AMD B650 |
| Form Factor | Micro ATX Form Factor; 24.0cm x 22.5cm |
| I/O Connectors | 4 x USB 2.0/1.1 ports, 1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x Q-Flash Plus button, 2 x USB 3.2 Gen 1 ports, 1 x HDMI port, 1 x RJ-45 port, ?3 x audio jacks |
| Integrated CPU Graphics | Integrated Graphics Processor with AMD Radeon |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| PCI Slots | 1 x PCI Express x16 slot (PCIEX16), 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Processor Support | AMD Ryzen 7000 / Ryzen 8000 Series Processors |
| RAID | RAID 0, RAID 1, and RAID 10 |
| RAM Type/Bus/Max | DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 96 GB |
| Socket | AM5 |
| Storage Interface | 1 x M.2, 4 x SATA 6Gb/s |
| Warranty | 3 Years |
| Weight | 1.2kg |
| SKU | 784814 |
| MPN | M/B B650M GAMING WIFI 1.0 |
| Brand | Gigabyte |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | Micro-ATX |
| Motherboard Chipset | AMD B650 |
| CPU Socket | AM5 |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.gigabyte.com/ |
