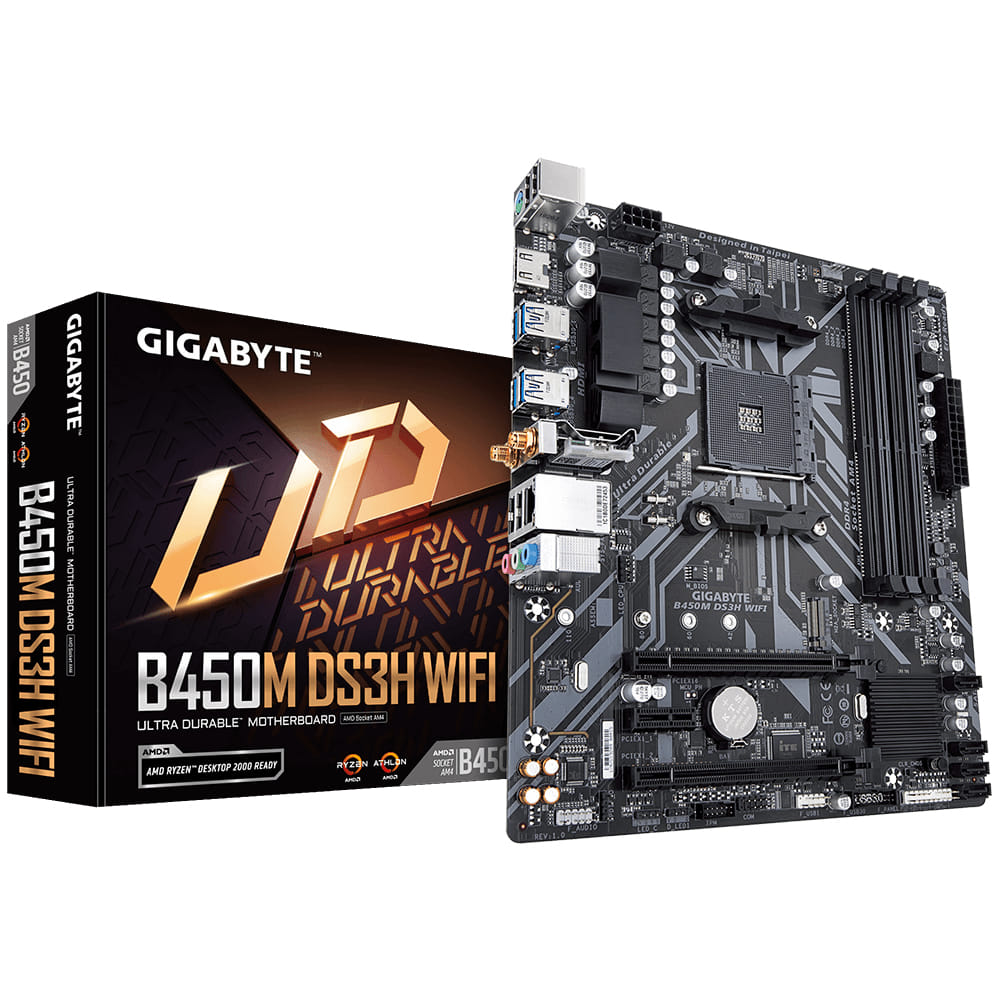

Gigabyte B450M DS3H WIFI PCIe Gen3 x4 M.2, RGB FUSION 2.0, Intel Dual Band 802.11ac WIFI
Gigabyte B450M DS3H WIFI AMD B450 Ultra Durable Motherboard with Realtek GbE LAN with cFosSpeed, PCIe Gen3 x4 M.2, RGB FUSION 2.0, Intel Dual Band 802.11ac WIFI, CEC 2019 ready
Supports AMD 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Intel Dual Band 802.11ac WIFI & BT 4.2
Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
High Quality Audio Capacitors and Audio Noise Guard Design
RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support
Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software
Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP
APP Center Including EasyTune and Cloud Station Utilities
CEC 2019 Ready, Save Power with a Simple Click
CPU
AM4 Socket: Supports AMD 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB of system memory
Dual channel memory architecture
Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
Onboard Graphics
Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note)
* Support for HDMI 2.0 version and HDCP 2.2.(Note)
Maximum shared memory of 16 GB
Supports AMD 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Intel Dual Band 802.11ac WIFI & BT 4.2
Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
High Quality Audio Capacitors and Audio Noise Guard Design
RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support
Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software
Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP
APP Center Including EasyTune and Cloud Station Utilities
CEC 2019 Ready, Save Power with a Simple Click
CPU
AM4 Socket: Supports AMD 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB of system memory
Dual channel memory architecture
Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
Onboard Graphics
Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note)
* Support for HDMI 2.0 version and HDCP 2.2.(Note)
Maximum shared memory of 16 GB
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | AMD |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | Socket AM4 |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | AMD Ryzen 3000 Series, AMD Ryzen 2000 Series |
| Maximum number of SMP processors | 1 |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | Socket AM4 |
| Maximum internal memory supported by processor | 128 GB |
| Memory | |
| Supported memory types Types of memory which can be used with the product. | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds. | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. | 2133,2400,2667,2933,3200,3466,3600 MHz |
| Supported memory clock speed (max) | 3600 MHz |
| Maximum internal memory The maximum internal memory which is available in the product. | 128 GB |
| Supported memory module capacities | 4GB, 8GB, 16GB, 32GB |
| Unbuffered memory |
 |
| Storage controllers | |
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported The total number of hard drives that can be used in/with this product. | 4 |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 5 |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
|
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0, 1, 10 |
| Graphics | |
| Maximum graphics card memory Graphics memory is determined by the (graphic) processor. Graphics memory is often shared with system memory so that it varies depending on the amount of system memory installed and system load. | 16000 MB |
| Parallel processing technology support Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally, parallel processing makes programs run faster because there are more engines (CPUs or Cores) running it. In practice, it is often difficult to divide a program in such a way that separate CPUs or cores can execute different portions without interfering with each other. Most computers have just one CPU, but some models have several, and multi-core processor chips are becoming the norm. There are even computers with thousands of CPUs. | Not supported |
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
 |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| DirectX version DirectX is a collection of APIs (application programming interfaces) for easily handling tasks related to game programming on the Microsoft Windows operating system. | 12.0 |
| Discrete graphics support |
|
| Internal I/O | |
| USB 2.0 connectors The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s. USB 2.0 connectors are usually colored black. | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008, USB 3.0 adds a new transfer mode called "SuperSpeed," (distinguishable from USB 2.0 by either the blue colour of the port or the initials SS) capable of transferring data at up to 5Gbit/s—more than ten times as fast as the 480 Mbit/s top speed of USB 2.0. | 1 |
| Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface. | 4 |
| Total number of SATA connectors | 4 |
| S/PDIF out connector |
|
| Front panel audio connector |
|
| Front panel connector |
|
| ATX Power connector (24-pin) |
|
| CPU fan connector |
|
| TPM connector |
|
| Serial port headers | 1 |
| 12V power connector |
|
| RGB LED pin header |
|
| Rear panel I/O ports | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| PS/2 ports quantity The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2. | 1 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 2.0 |
| DVI-D ports quantity This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-D means DVI digital, which means it can only support digital, but not analog. | 1 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a, 802.11ad, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN controller model | Realtek RTL8821CE |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 4.2 |
| Features | |
| Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. | AMD B450 |
| Audio chip | Realtek ALC887 |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 7.1 channels |
| Product colour The colour e.g. red, blue, green, black, white. | Brown |
| PC health monitoring | Fan, Temperature, Voltage |
| Component for What this product is used as a part of (component for). | PC |
| Motherboard form factor Design of the motherboard (ATX, BTX etc). | micro ATX |
| Motherboard chipset family The category of motherboard chipset e.g. Intel, AMD. | AMD |
| Power source type What the power source is. | ATX |
| Supported processor sockets (cooler) | Socket AM4 |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 x64, Windows 7 x64 |
| Expansion slots | |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
| BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS. | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper |
|
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Logistics data | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | China |
| Products per shipping (inner) case | 1 pc(s) |
| Battery | |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type Description of battery supplied with the product, such battery form factor (e.g. AA/AAA). | CR2032 |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 265 mm |
| Package depth The distance from the front to the back of the packaging. | 265 mm |
| Package height The distance from the top to the bottom of the packaging. | 54 mm |
| Package weight Weight of the packaged product. | 950 g |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 244 mm |
| Depth The distance from the front to the back of something. | 215 mm |
| Height The measurement of the product from head to foot or from base to top. | 35 mm |
| Packaging content | |
| Batteries included |
|
| Bundled software Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer. | Norton Internet Security, cFosSpeed |
| Technical details | |
| Warranty period | 3 year(s) |
| SKU | 483155 |
| MPN | GA-B450M-DS3H-WIFI |
| Brand | Gigabyte |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | Micro-ATX |
| Motherboard Chipset | AMD B450 |
| CPU Socket | AM4 |
| Memory Type | DDR4 |
| Memory Form Factor | DIMM |
