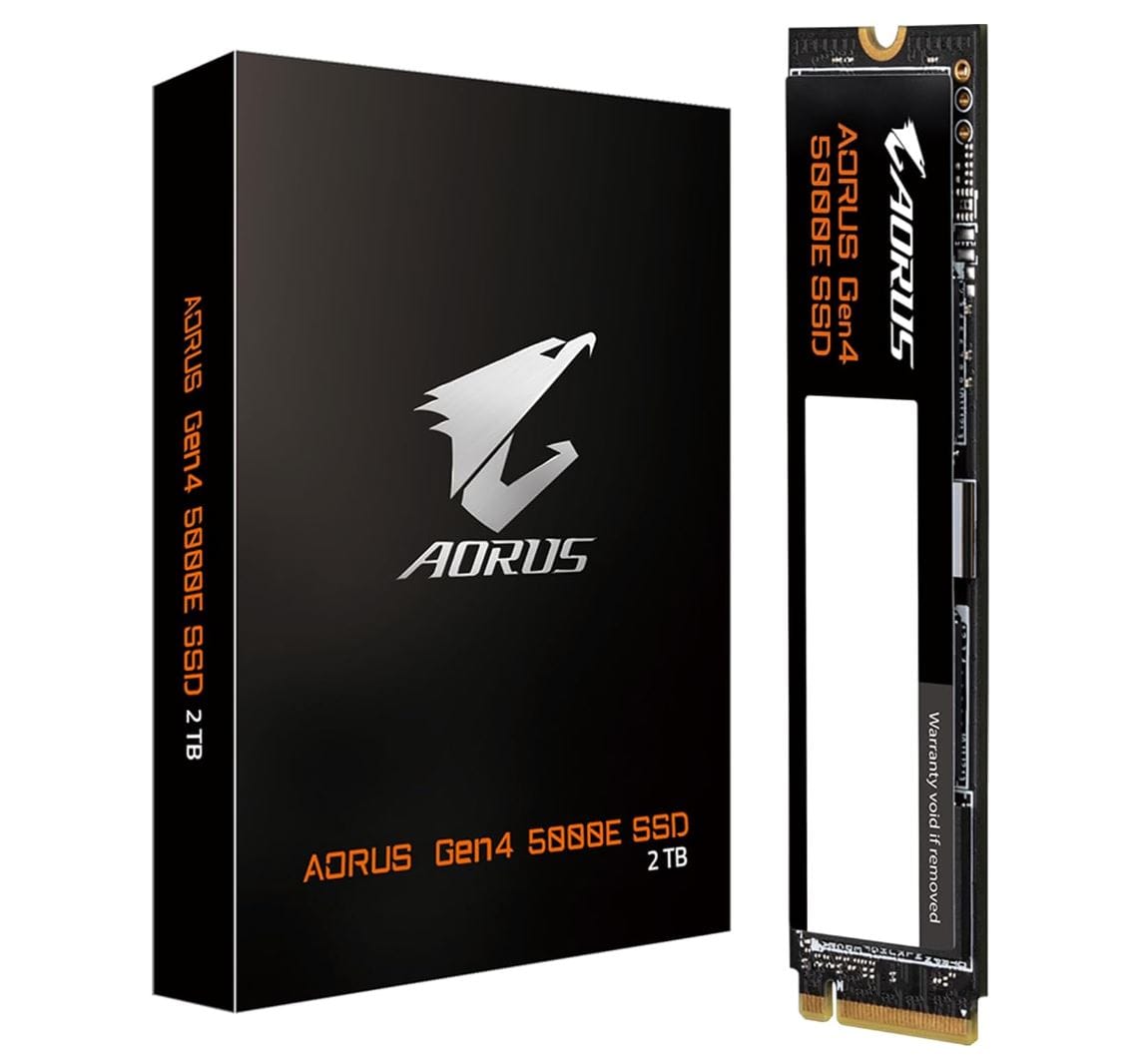

Gigabyte AORUS Gen4 5000E SSD 2TB PCI-Express 4.0x4, NVMe 1.4, Sequential Read ~6500 MB/s, Sequential Write ~6000 MB/s
Gigabyte AORUS Gen4 5000E SSD 1TB PCI-Express 4.0x4, NVMe 1.4, Sequential Read ~6500 MB/s, Sequential Write ~6000 MB/s
Key Features
Form Factor: M.2 2280
Interface: PCI-Express 4.0 x4, NVMe 1.4
Total Capacity: 2TB (2000GB)*
Sequential Read Speed : up to 6,500 MB/s**
Sequential Write speed : up to 6,000 MB/s**
HMB (Host Memory Buffer) supported
TRIM & S.M.A.R.T supported
Energy-efficient
Warranty: Limited 5-years
Specification
Interface: PCI-Express 4.0x4, NVMe 1.4
Form Factor: M.2 2280
Total Capacity: 2000GB
NAND: 3D QLC NAND Flash
Sequential Read speed: Up to 6,500 MB/s
Sequential Write speed: Up to 6,000MB/s
Dimension: 80 x 22 x 2.3 mm
Mean time between failure (MTBF): 1.5 million hours
Max. Operating Power: R : 6.2W W : 6.5W
Power Consumption(PS4, L1.2): L1.2 < 5mW
Temperature (Operating): 0 DegC to 70 DegC
Temperature (Storage): -40 DegC to 85 DegC
Warranty
1. Limited 5-years or 580TBW..
2. Limited warranty based on 5 years or 580TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
3. When the usage of an NVME SSD as indicated by the Percentage Used (SMART ID: 05) in SMART page of GIGABYTE SSD toolbox reaches 100 means out of warranty. (A new unused product will show the number of 0)
Note
Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
Speeds based on internal testing. Actual performance may vary.
1GB = 1 billion bytes. Actual useable capacity may vary
Key Features
Form Factor: M.2 2280
Interface: PCI-Express 4.0 x4, NVMe 1.4
Total Capacity: 2TB (2000GB)*
Sequential Read Speed : up to 6,500 MB/s**
Sequential Write speed : up to 6,000 MB/s**
HMB (Host Memory Buffer) supported
TRIM & S.M.A.R.T supported
Energy-efficient
Warranty: Limited 5-years
Specification
Interface: PCI-Express 4.0x4, NVMe 1.4
Form Factor: M.2 2280
Total Capacity: 2000GB
NAND: 3D QLC NAND Flash
Sequential Read speed: Up to 6,500 MB/s
Sequential Write speed: Up to 6,000MB/s
Dimension: 80 x 22 x 2.3 mm
Mean time between failure (MTBF): 1.5 million hours
Max. Operating Power: R : 6.2W W : 6.5W
Power Consumption(PS4, L1.2): L1.2 < 5mW
Temperature (Operating): 0 DegC to 70 DegC
Temperature (Storage): -40 DegC to 85 DegC
Warranty
1. Limited 5-years or 580TBW..
2. Limited warranty based on 5 years or 580TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
3. When the usage of an NVME SSD as indicated by the Percentage Used (SMART ID: 05) in SMART page of GIGABYTE SSD toolbox reaches 100 means out of warranty. (A new unused product will show the number of 0)
Note
Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
Speeds based on internal testing. Actual performance may vary.
1GB = 1 billion bytes. Actual useable capacity may vary
| Features | |
| NVMe version | 1.4 |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| SSD capacity The Solid State Drive's data storage capacity. | 2 TB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 4.0 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D TLC NAND |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Component for What this product is used as a part of (component for). | PC |
| Hardware encryption |
 |
| Read speed The speed at which a device can read data. | 6500 MB/s |
| Write speed The speed at which a device can write data. | 6000 MB/s |
| PCI Express interface data lanes | x4 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| S.M.A.R.T. support |
|
| TRIM support |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1500000 h |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 x64, Windows 11 x64 |
| TBW rating | 580 |
| Power | |
| Power consumption (read) | 4.2 W |
| Power consumption (write) | 4.3 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 22 mm |
| Depth The distance from the front to the back of something. | 80 mm |
| Height The measurement of the product from head to foot or from base to top. | 2.3 mm |
| Packaging data | |
| Manual |
|
| Package type The type of product package e.g. box. | Box |
| SKU | 754622 |
| MPN | AG450E2TB-G |
| Brand | Gigabyte |
| Product Condition | Brand New/Unused |
| Drive Form Factor | M.2 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.gigabyte.com/ |
