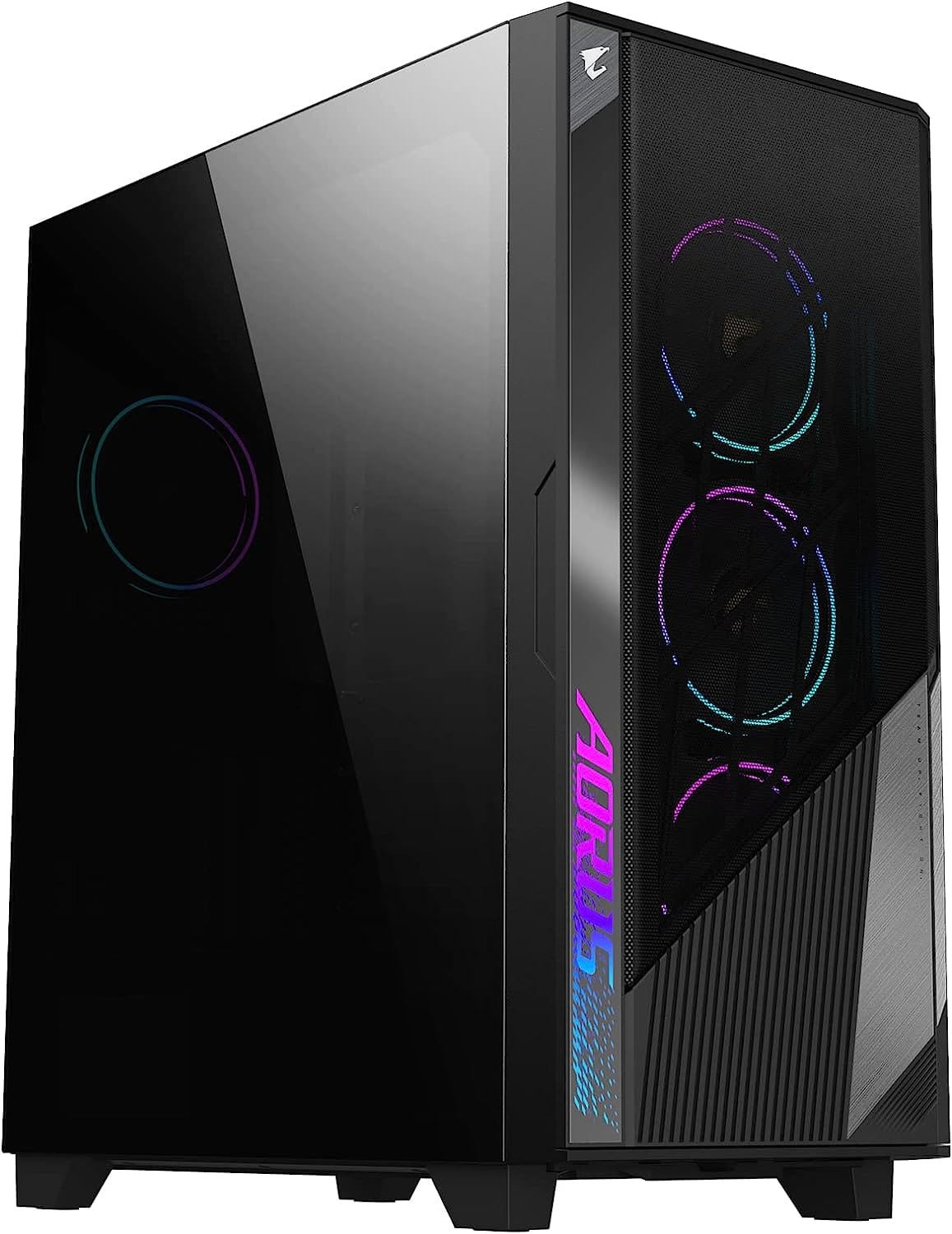

Gigabyte AORUS C500 ST Gaming Case E ATX 2x3.5 2x2.5 RGB Detachable Dust Filters Top Front Bottom Power Supply Standard ATX(NEW)
Gigabyte AORUS C500 ST Gaming Case E ATX 2x3.5 2x2.5 RGB Detachable Dust Filters Top Front Bottom Power Supply Standard ATX(NEW)
FEATURES:
Optimized Airflow design
Support Motherboards up to E ATX
Up to 420mm Liquid Cooling Compatible
Support Vertical GPU Installation
Modular Easy Installation
Full Size Tempered Glass Side Panel
With USB 3.0 x2 and USB 3.1 Gen2 Type C x1 on I/O panel
RGB Fusion 2.0
Pre installed 4 fans with ARGB & PWM Connector Hub
Case Form Factor :Mid Tower
M/B Type Mini ITX / Micro ATX / ATX / E ATX
Color Black
Materials:Steel, Plastic, Glass
Dimensions: H=548 W=250 D=482 mm (Within 1% error)
Expansion slots: 8 3 (Requires PCIE Riser Cable)
5.25 Drive Bays:None
3.5 /2.5 Drive Bays:2
2.5 Drive Bays:2
I/O Panel:
USB 3.1 Gen2 Type C x1
USB 3.0 x2
Audio In & Out
Pre installed Fan:
Front : 120mm x3 (ARGB & PWM)
Rear : 120mm x1 (ARGB & PWM)
Fan Support:
Front : 120mm x3 / 140mm x3
Top : 120mm x3 / 140mm x2
Rear : 120mm x1 / 140mm x1
Radiator Support:
Front : Max 420mm
Top : Max 360mm
Rear : 140mm
Maximum Compatibility:
CPU Height : 190mm
GPU Length : 420mm
PSU Length : 220mm
Vertical GPU Mount:Yes (Default: 73mm total clearance / VGA holder bracket: 160mm total clearance)
Dust Filters: Top, Front, Bottom
RGB Lighting: Yes (Support RGB Fusion 2.0)
Weight:N.W. 13.4 Kg
Package Dimensions
H=594 W=336 D=584 mm
Accessories
1. Manual
2. Accessories kit
FEATURES:
Optimized Airflow design
Support Motherboards up to E ATX
Up to 420mm Liquid Cooling Compatible
Support Vertical GPU Installation
Modular Easy Installation
Full Size Tempered Glass Side Panel
With USB 3.0 x2 and USB 3.1 Gen2 Type C x1 on I/O panel
RGB Fusion 2.0
Pre installed 4 fans with ARGB & PWM Connector Hub
Case Form Factor :Mid Tower
M/B Type Mini ITX / Micro ATX / ATX / E ATX
Color Black
Materials:Steel, Plastic, Glass
Dimensions: H=548 W=250 D=482 mm (Within 1% error)
Expansion slots: 8 3 (Requires PCIE Riser Cable)
5.25 Drive Bays:None
3.5 /2.5 Drive Bays:2
2.5 Drive Bays:2
I/O Panel:
USB 3.1 Gen2 Type C x1
USB 3.0 x2
Audio In & Out
Pre installed Fan:
Front : 120mm x3 (ARGB & PWM)
Rear : 120mm x1 (ARGB & PWM)
Fan Support:
Front : 120mm x3 / 140mm x3
Top : 120mm x3 / 140mm x2
Rear : 120mm x1 / 140mm x1
Radiator Support:
Front : Max 420mm
Top : Max 360mm
Rear : 140mm
Maximum Compatibility:
CPU Height : 190mm
GPU Length : 420mm
PSU Length : 220mm
Vertical GPU Mount:Yes (Default: 73mm total clearance / VGA holder bracket: 160mm total clearance)
Dust Filters: Top, Front, Bottom
RGB Lighting: Yes (Support RGB Fusion 2.0)
Weight:N.W. 13.4 Kg
Package Dimensions
H=594 W=336 D=584 mm
Accessories
1. Manual
2. Accessories kit
| Design | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Glass, Plastic, Steel |
| Form factor The shape or design of the product. | Midi Tower |
| Type Characteristics of the device. | PC |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Supported motherboard form factors Design of the supported motherboards. | ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 2 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 11 |
| Side window A side window is a transparent side (or part of side) in a housing which enables you to see the internal space of the device. |
 |
| Suitable for Who can use the product, or what the product can be used for. | Gaming |
| Illumination The device has illumination. |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Blue, Green, Red |
| Illumination location | PSU fan |
| Tempered glass panel(s) |
|
| Anti-dust filter |
|
| Cable management Description of improved cable management |
|
| Reset button |
|
| On/off button |
|
| LED indicators |
|
| Power supply | |
| Power supply included There is a power supply with this product. |
 |
| Power supply location Where the power supply is positioned. | Bottom |
| Supported power supply form factors | ATX |
| Ports & interfaces | |
| Audio input The type of audio input that the device requires, and the connection needed. |
|
| Audio output The type of audio output that the device produces, and the connector(s). |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| Cooling | |
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Front radiator sizes supported | 420 mm |
| Rear radiator sizes supported | 140 mm |
| Top radiator sizes supported | 360 mm |
| Storage | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 250 mm |
| Depth The distance from the front to the back of something. | 482 mm |
| Height The measurement of the product from head to foot or from base to top. | 548 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 13.4 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 336 mm |
| Package depth The distance from the front to the back of the packaging. | 584 mm |
| Package height The distance from the top to the bottom of the packaging. | 594 mm |
| SKU | 732593 |
| MPN | GB-AC500G ST |
| Brand | Gigabyte |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | E-ATX |
| Case Colour | Black |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.gigabyte.com/ |
