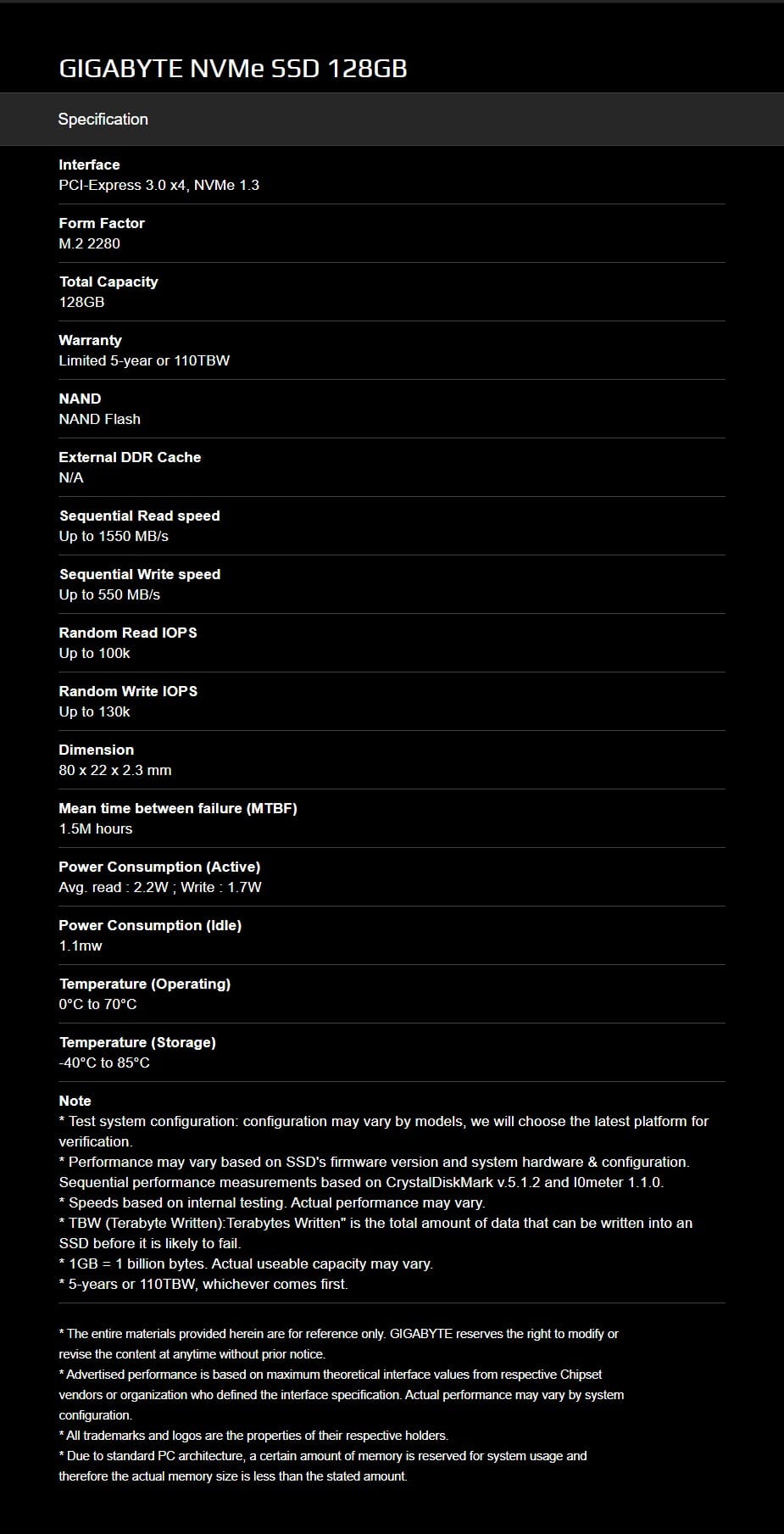

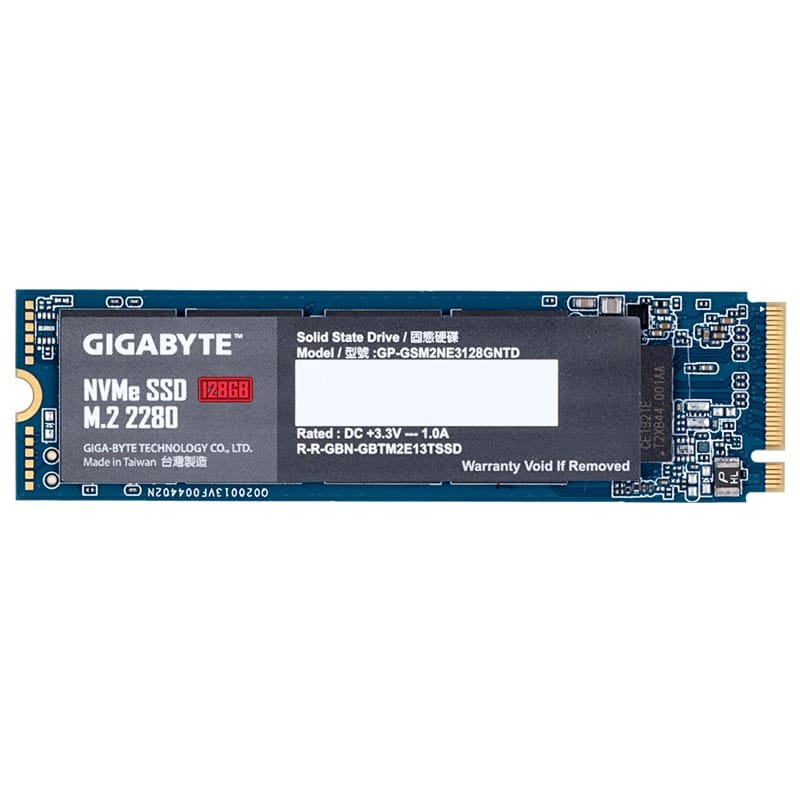

Interface: PCI-Express 3.0 x4, NVMe 1.3 - Form Factor: M.2 2280 - Total Capacity: 128GB - TBW: 110 - NAND Flash - SQL Read Speed: 1550 MB/s - SQL Write Speed: 550 MB/s - Random Read/Write IOPS: 110/130K - MTBF: 1,500,000 Hours - Operating Temp: 0
| Features | |
| NVMe version | 1.3 |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| SSD capacity The Solid State Drive's data storage capacity. | 128 GB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 3.0 |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Component for What this product is used as a part of (component for). | PC |
| Hardware encryption |
 |
| Read speed The speed at which a device can read data. | 1550 MB/s |
| Write speed The speed at which a device can write data. | 550 MB/s |
| Random read (4KB) | 100000 IOPS |
| Random write (4KB) | 130000 IOPS |
| PCI Express interface data lanes | x4 |
| S.M.A.R.T. support |
|
| TRIM support |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1500000 h |
| TBW rating | 110 |
| Power | |
| Power consumption (read) | 2.2 W |
| Power consumption (write) | 1.7 W |
| Power consumption (idle) | 0.0011 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 80 mm |
| Depth The distance from the front to the back of something. | 22 mm |
| Height The measurement of the product from head to foot or from base to top. | 2.3 mm |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| SKU | 381710 |
| MPN | GP-GSM2NE3128GNTD |
| Brand | Gigabyte |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.gigabyte.com/ |
