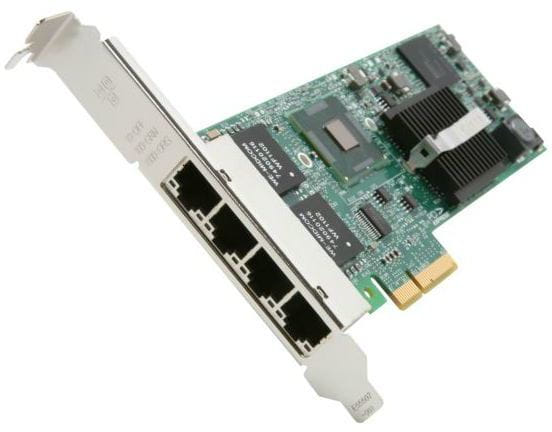

Fujitsu S26361-F4610-L504, Internal, Wired, PCI Express, Ethernet, 1000 Mbit/s
Trust the network communication of the new Ethernet LAN adapter. The new Intel I350-T4
Ethernet LAN Adapter, based on the latest Intel® 1GbE chip technology, offers four Gigabit Ethernet
ports for 10/100/1000BaseT.
Virtualization support and Wake-on-LAN with selectable port are just some of the features from
which you will benefit. Optimal support for your virtualization is provided by the support for Virtual
Machine Device Queues (VMDq), Single Root I/O virtualization and sharing specification (SR-IOV).
SR-IOV requires corresponding support in the system BIOS and in the operating system. PCI-SIG
SR-IOV defines extensions of the PCI Express (PCIe) specification and enables PCI hardware resources
to be shared with several system images or Virtual Machines.
Ethernet LAN Adapter, based on the latest Intel® 1GbE chip technology, offers four Gigabit Ethernet
ports for 10/100/1000BaseT.
Virtualization support and Wake-on-LAN with selectable port are just some of the features from
which you will benefit. Optimal support for your virtualization is provided by the support for Virtual
Machine Device Queues (VMDq), Single Root I/O virtualization and sharing specification (SR-IOV).
SR-IOV requires corresponding support in the system BIOS and in the operating system. PCI-SIG
SR-IOV defines extensions of the PCI Express (PCIe) specification and enables PCI hardware resources
to be shared with several system images or Virtual Machines.
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Ethernet |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| PCI version | 2.1 |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1as, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Cabling technology Type of cable technology performance. | 10/100/1000BaseT(X) |
| Wake-on-LAN ready |
|
| Jumbo frames support |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | iSCSI |
| LAN controller | Intel® I350 |
| Design | |
| Component for What this product is used as a part of (component for). | Server |
| Internal The product is built in. |
|
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Intel® I350-AM4 |
| LED indicators |
|
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 5 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Flow control support |
|
| SKU | 783341 |
| MPN | S26361-F4610-L504 |
| Brand | Fujitsu |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.fujitsu.com/ |
