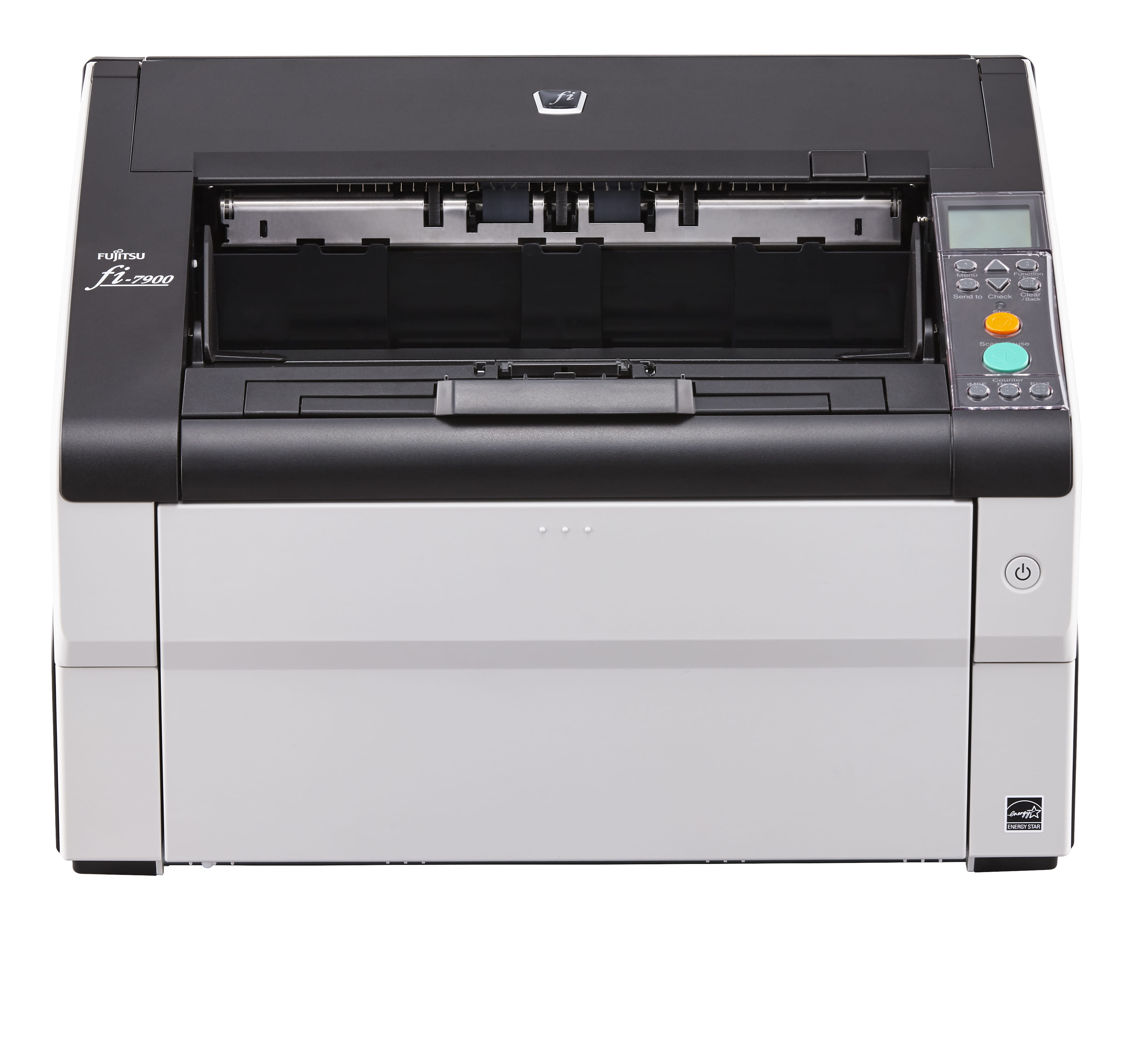

Fujitsu FI-7900 A3 ADF Document Sheetfed Scanner

Scanning
Maximum scan size	304.8 x 5588 mm
Optical scanning resolution How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi.	600 x 600 DPI
Enhanced scan resolution	50 x 600 DPI
Colour scanning Indicates whether this product scans in colour.
Duplex scanning Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides.
Output colour depth	24 bit
Output greyscale depth	8 bit
Output monochrome depth	1 bit
Black/white scanning colour modes	Grayscale, Monochrome
Selectable background colour
Background colours	Black, White

Design
Scanner type Indicates the type of scanner this product is.	ADF + Manual feed scanner
Product colour The colour e.g. red, blue, green, black, white.	Black, Grey
Built-in display A display which is part of the product, so you do not need to attach another display.

Performance
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	Dual CCD
Light source	White LED (4x)
Scan file formats	BMP, JPEG, PDF, TIFF
Daily duty cycle (max) The maximum percentage of time a machine or piece of equipment can be in operation for in one day in relation to the time it must remain out of operation. For instance, a max daily duty cycle of 30 percent means it will operate for a maximum 30 percent of the day and then not be used for the other 70 percent of the day.	120000 pages
Scan drivers	ISIS, TWAIN, WIA
Scanner error detection
Ultrasonic double sheet detection

Input capacity
Auto document feeder (ADF) input capacity Number of sheets this product can hold in its ADF tray; expressed in sheets	500 sheets

Paper handling
Multi feed detection Detector stopping the scan process as soon as 2 pages are scanned together.
Long-paper mode
Maximum ISO A-series paper size The maximum paper size the device can handle, defined by ISO A-series.	A3
ISO A-series sizes (A0...A9) Different sizes of paper from A0 (big) to A9 (small). A4 is the most common size used for printing documents.	A3, A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Letter
Legal
Auto Document Feeder (ADF) media weight	20 - 209 g/m²
Maximum scan length	5.59 m
Maximum scan area (ADF)	304.8 x 431.8 mm
Minimum scan area (ADF)	52 x 74 mm

Ports & interfaces
USB port The device features a socket into which a USB cable can be plugged.
USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.	2.0
USB connector type The type of USB connector/port that this product has.	USB Type-B
Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.	USB 2.0

Power
Power supply type The type of power supply which this product uses.	AC
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	200 W
Power consumption (off)	0.3 W
Sleep mode
Power consumption (sleep)	3.2 W

Features
Country of origin Country where the device is made. Aka Country of manufacture (COM).	Japan

System requirements
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 10, Windows 10 x64, Windows 7, Windows 8

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Weight & dimensions
Width The measurement or extent of something from side to side.	460 mm
Depth The distance from the front to the back of something.	430 mm
Height The measurement of the product from head to foot or from base to top.	310 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	32 kg

Packaging content
Software CD
Warranty card
Cables included	AC, USB
Drivers included
Bundled software Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer.	PaperStream IP driver (TWAIN/TWAIN x64/ISIS), WIA Driver, PaperStream Capture, 2D Barcode for PaperStream, Software Operation Panel, Error Recovery Guide, Scanner Central Admin

Technical details
PC connection	USB 2.0
Sustainability certificates	RoHS, ENERGY STAR

Logistics data
Harmonized System (HS) code	84716070
