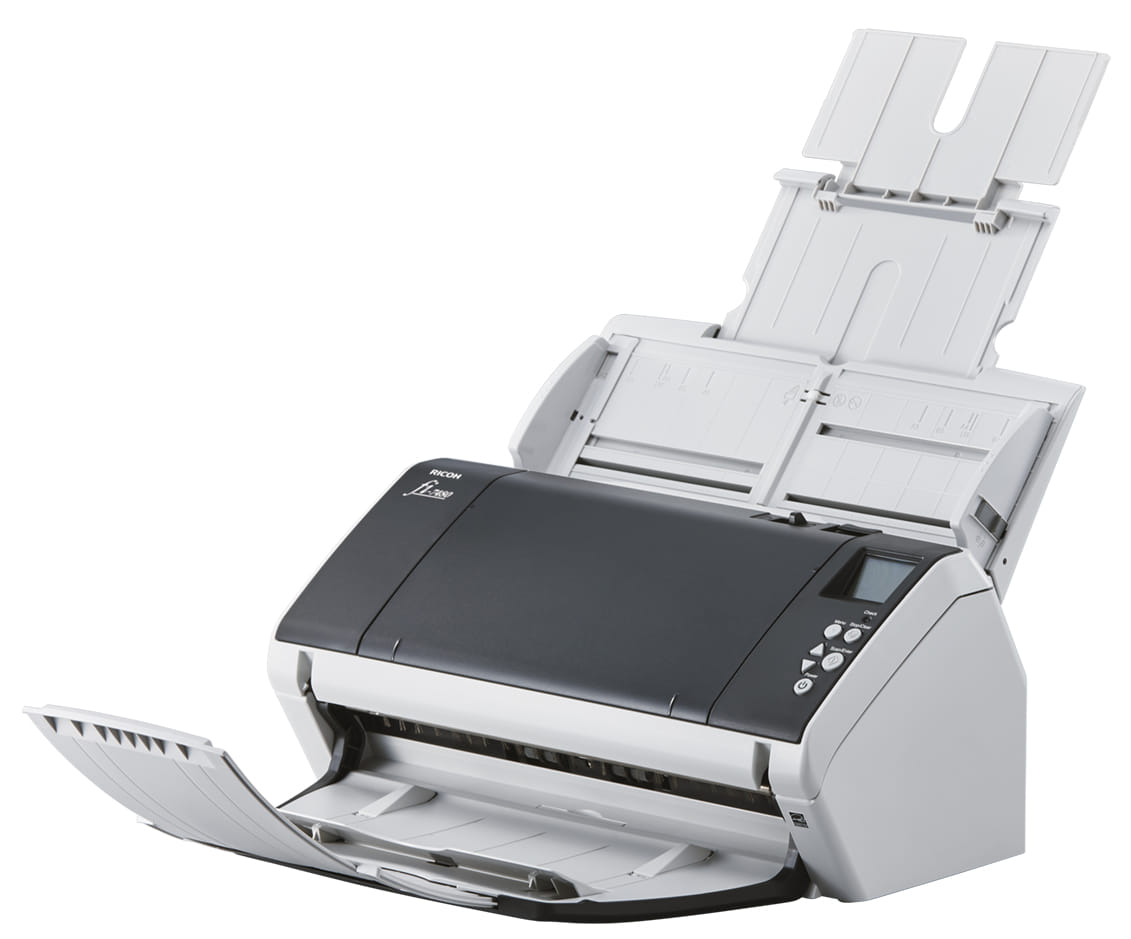

Fujitsu FI-7480 A3 Duplex 80 PPM100SHT Document Scanner

Scanning
Maximum scan size	304.8 x 5588 mm
Optical scanning resolution How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi.	600 x 600 DPI
Colour scanning Indicates whether this product scans in colour.
Duplex scanning Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides.
Output colour depth	24 bit
Output greyscale depth	8 bit
Output monochrome depth	1 bit
Film scanning Device made for scanning photographic film directly into a computer without the use of any intermediate printmaking. It provides several benefits over using a flatbed scanner to scan in a print of any size: the photographer has direct control over cropping and aspect ratio from the original, unmolested image on film; and many film scanners have special software or hardware that removes scratches and film grain and improves color reproduction from film.
ADF scan speed (b/w, A4)	80 ppm
ADF scan speed (colour, A4)	80 ppm
Duplex ADF scan speed (b/w, A4)	160 ipm
Duplex ADF scan speed (colour, A4)	160 ipm
Black/white scanning colour modes	Grayscale, Monochrome

Design
Scanner type Indicates the type of scanner this product is.	ADF scanner
Product colour The colour e.g. red, blue, green, black, white.	Grey, White
Built-in display A display which is part of the product, so you do not need to attach another display.

Performance
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	Dual CCD
Light source	White LED (4x)
Scan drivers	ISIS, TWAIN

Input capacity
Auto document feeder (ADF) input capacity Number of sheets this product can hold in its ADF tray; expressed in sheets	100 sheets

Paper handling
Scanning media types supported	Plastic Card
Multi feed detection Detector stopping the scan process as soon as 2 pages are scanned together.
Maximum ISO A-series paper size The maximum paper size the device can handle, defined by ISO A-series.	A3
ISO A-series sizes (A0...A9) Different sizes of paper from A0 (big) to A9 (small). A4 is the most common size used for printing documents.	A3, A4, A8
Media thickness (min)	1.4 mm
Plastic card media weight	27 - 413 g/m²
Auto Document Feeder (ADF) media weight	27 - 413 g/m²
Maximum scan width	30.5 cm
Maximum scan length	5.588 mm
Maximum scan area (ADF)	304.8 x 431.8 mm
Minimum scan area (ADF)	50.8 x 69 mm

Ports & interfaces
USB port The device features a socket into which a USB cable can be plugged.
USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.	3.2 Gen 1 (3.1 Gen 1)
USB connector type The type of USB connector/port that this product has.	USB Type-B
Socket connector type	C5
Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.	USB 3.2 Gen 1 (3.1 Gen 1)

Power
Power supply type The type of power supply which this product uses.	AC
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	43 W
Power consumption (standby) The amount of electricity that is consumed when the product is on standby.	0.35 W
Power consumption (off)	0.35 W
Power consumption (PowerSave)	1.4 W
Input voltage The voltage (V) which is required to power the product.	100-240 V

Weight & dimensions
Width The measurement or extent of something from side to side.	380 mm
Depth The distance from the front to the back of something.	209 mm
Height The measurement of the product from head to foot or from base to top.	168 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	7.6 kg

Packaging data
Quantity per pack	1 pc(s)
Package width The distance from one side of the packaging to the other.	505 mm
Package depth The distance from the front to the back of the packaging.	302 mm
Package height The distance from the top to the bottom of the packaging.	330 mm
Package weight Weight of the packaged product.	9.9 kg

Packaging content
Cables included	AC
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
AC adapter included
Drivers included
Bundled software Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer.	PaperStream IP, PaperStream Capture, Software Operation Panel, Error Recovery Guide, Scanner Central Admin tools, ScanSnap Manager, Scan to Microsoft SharePoint, ABBYY FineReader, 2D barcode for PaperStream

Sustainability
Sustainability certificates	ENERGY STAR

System requirements
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Professional x64
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016 x64

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Other features
Compliance certificates Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.	RoHS
Selectable background colour
Background colours	Black, White

Logistics data
Country of origin Country where the device is made. Aka Country of manufacture (COM).	Indonesia
Pallet gross length	121.9 cm
Pallet gross width	101.6 cm
Harmonized System (HS) code	8471607000
Paper packaging weight	2.4 kg
Metal packaging weight	0 g
Wood packaging weight	0 g
Plastic packaging weight	15 g
Products per pallet (air)	24 pc(s)
Products per pallet (sea)	40 pc(s)
Pallet height (sea)	180 cm
Pallet height (air)	114 cm
Cardboard packaging weight	1.2 kg
Foil packaging weight	15 g
Polystyrene (EPS/EPP) packaging weight	200 g
Glass packaging weight	0 g
