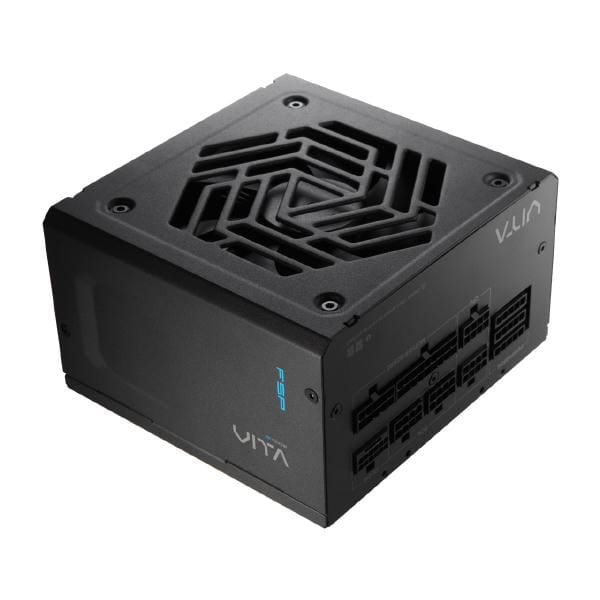

FSP VITA GM ATX3.1(PCIe12V-2x6) 850W Power Supply
FSP s VITA GM ATX3.1(PCIe12V-2x6) 850W Power Supply is compliant with Intel ATX 3.1 specification and PCIe-5.1, the power supply can maintain the maximum total power offset. This series is equipped with a native PCIe-5.1 interface and also supports 2 PCIe 6+2Pin interfaces for graphics cards. In addition, it also supports two slots of CPU connectors for higher performance. Certified by the world-class organization 80 PLUS, Gold certified for lower power loss, less heat and quieter operation. At 140mm in length, it s relatively shorter than industry standards, making it ideal for compact PCs or space-constrained environments without compromising performance.
Input voltage of 100-240V; 200-240V
Input current of 11-5.5A; 5.5A
Unput frequency 50-60Hz
PFC Active greater than/equal to 0.9
Conversion Efficiency is greater than/equal to 90%
HYB fan, 120mm
Protection for OCP, OVP, SCP, OPP, UVP, OTP
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 850 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 11-5.5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.83 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 500 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 4 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) |
 |
| CPU power cable length | 70 cm |
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 3.1 |
| EPS version | 2.92 |
| Bearing technology | HYB |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan location | Top |
| Packaging content | |
| Cables included | CPU, Peripheral (Molex), SATA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| SKU | 774986 |
| MPN | VITA-850GM |
| Brand | FSP |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Warehouse |
| Product Use | General |
| Warranty Period | 10 Years Warranty |
| Warranty Contact | https://www.fsplifestyle.com/ |
