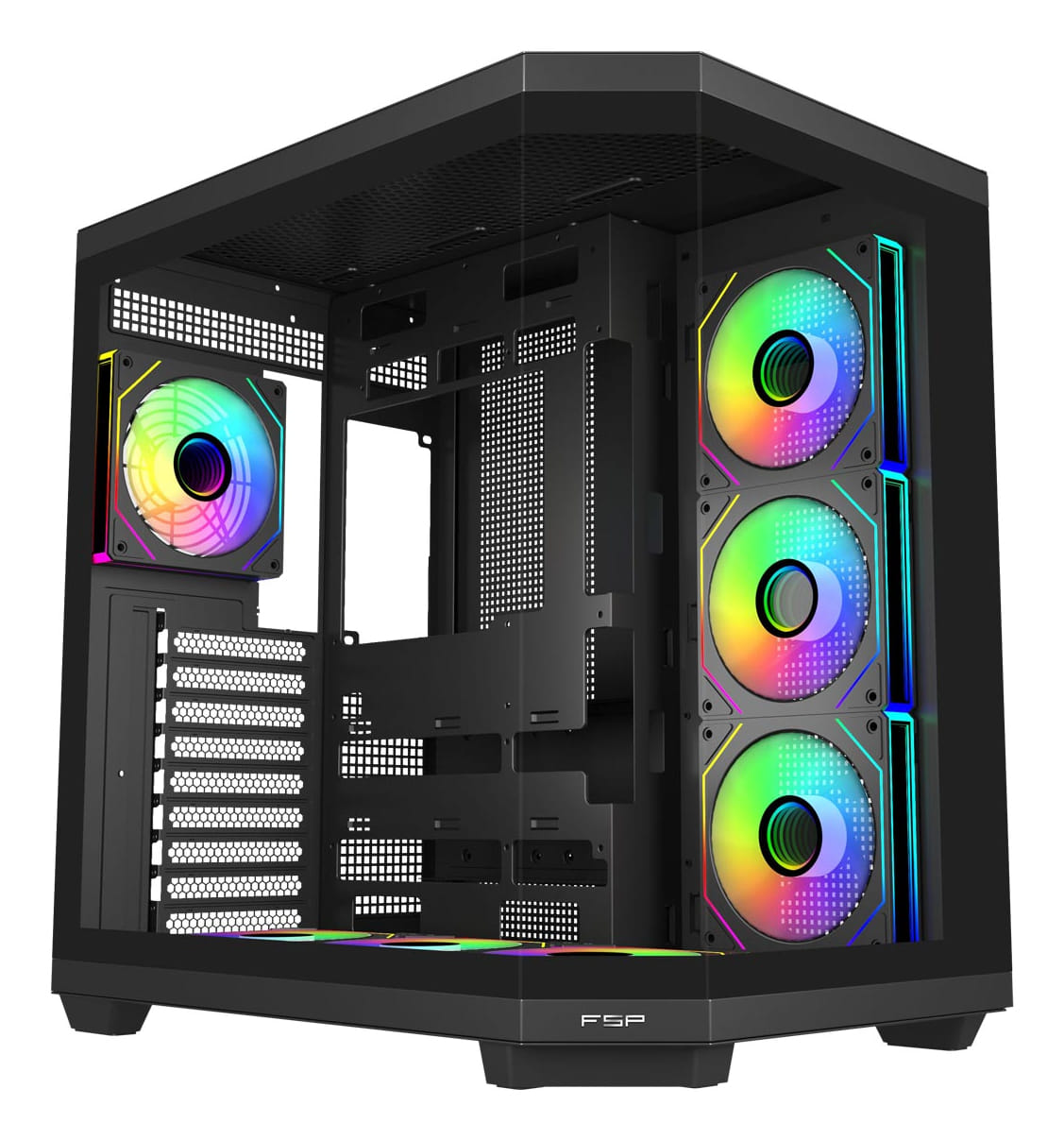

FSP U580-BA, Tower, PC, Black, ATX, micro ATX, Mini-ITX, Amber, Blue, Green, Red, Case fans
Innovative Design Meets Crystal Clarity
The U580 Three-Glass PC Case redefines showcase aesthetics with tempered glass panels on the front, and side. Its sleek, modern design offers a panoramic view of your build while supporting high-performance components and optimized airflow.
The side and bottom come pre-installed with six 120mm PWM ARGB fans, while the rear features a 120mm ARGB fan.
Clean Builds, Cool Performance
Compatible with ATX (BTF), M-ATX, and Mini-ITX motherboards, the U580 features built-in cable routing for clean back-connect setups. With seven pre-installed 120mm ARGB fans, it delivers both striking visuals and high-efficiency cooling.
Dual-chamber, Organized Space
Designed with a dual-chamber layout, the U580 keeps the PSU, hard drives, and cables neatly tucked away, delivering a clean and clutter-free build. Combining refined aesthetics with high-performance potential, it features tempered glass panels on three sides, showcasing your components in style.
The U580 Three-Glass PC Case redefines showcase aesthetics with tempered glass panels on the front, and side. Its sleek, modern design offers a panoramic view of your build while supporting high-performance components and optimized airflow.
The side and bottom come pre-installed with six 120mm PWM ARGB fans, while the rear features a 120mm ARGB fan.
Clean Builds, Cool Performance
Compatible with ATX (BTF), M-ATX, and Mini-ITX motherboards, the U580 features built-in cable routing for clean back-connect setups. With seven pre-installed 120mm ARGB fans, it delivers both striking visuals and high-efficiency cooling.
Dual-chamber, Organized Space
Designed with a dual-chamber layout, the U580 keeps the PSU, hard drives, and cables neatly tucked away, delivering a clean and clutter-free build. Combining refined aesthetics with high-performance potential, it features tempered glass panels on three sides, showcasing your components in style.
| Design | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Tempered glass, SPCC |
| Form factor The shape or design of the product. | Ultra Tower |
| Type Characteristics of the device. | PC |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Supported motherboard form factors Design of the supported motherboards. | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 1 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 9 |
| Side window A side window is a transparent side (or part of side) in a housing which enables you to see the internal space of the device. |
 |
| Suitable for Who can use the product, or what the product can be used for. | Gaming |
| Illumination The device has illumination. |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Amber, Blue, Green, Red |
| Illumination location | Case fans |
| Tempered glass panel(s) |
|
| On/off button |
|
| Maximum CPU cooler height | 16 cm |
| Maximum graphics card length | 41.5 cm |
| Power supply | |
| Power supply included There is a power supply with this product. |
 |
| Power supply location Where the power supply is positioned. | Rear |
| Supported power supply form factors | ATX |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| Combo headphone/mic port |
|
| Cooling | |
| Fan speed control |
|
| Front fans diameters supported | 120 mm |
| Side fans installed | 3x 120 mm |
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120 mm |
| Bottom fans installed | 3x 120 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans diameters supported | 120 mm |
| Side radiator sizes supported | 360 mm |
| Bottom radiator sizes supported | 240 mm |
| Top radiator sizes supported | 360 mm |
| Storage | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 285 mm |
| Depth The distance from the front to the back of something. | 426 mm |
| Height The measurement of the product from head to foot or from base to top. | 453 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 8.33 kg |
| Material thickness | 0.7 mm |
| SKU | 829453 |
| MPN | CASEFSPU580BA |
| Brand | FSP |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | ATX |
| Case Colour | Black |
| Stock Availability | Available for Shipping, In Stock at Warehouse |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.fsplifestyle.com/ |
