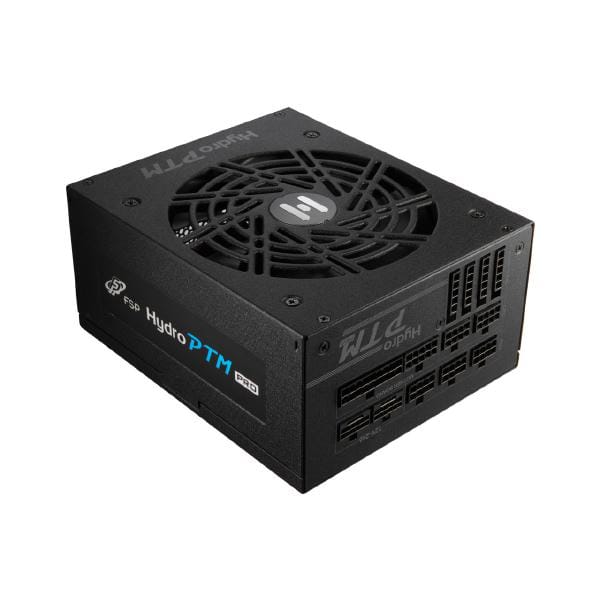

FSP Hydro PTM Pro ATM3.0 (12V-22x6)
Updated ATX 3.0 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency. The series comes with native PCIe Gen 5 connector and also supports 3 slots of PCIe 6+2Pin for graphic card, besides, 2 slots of CPU connector for higher performance. The conformal coating which protects the power supply and its internal components from dust, humidity, stains. The Hydro PTM PRO series are covered with conformal coating to guarantee reliable performance in a harsh environment and tested to work perfectly even in 95% relative humidity.
Complies with ATX12V V3.0 & EPS12V V2.92
Efficiency greater than/equal to 92% at typical load (1650W greater than/equal to 94% at typical load)
Eco semi-fanless fan control switch
Quiet and long-lasting 135mm FDB fan
Ribbon cable design for enthusiasts
+ 5V & 3.3V DC to DC module design
+ 12V single-rail design
Japanese electrolytic capacitors
Changeable side stickers for DIY enthusiasts and gamers
Complete protection: OCP/OVP/OPP/SCP/OTP/UVP
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 1650 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Number of +12V rail(s) | 1 |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1650 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 137.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 94% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 4 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) |
 |
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 3.0 |
| EPS version | 2.92 |
| Bearing technology | FDB |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Semi-passive |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 13.5 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| On/off switch The button which is pressed to switch the device on or off. |
|
| On/off fan switch |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 180 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| SKU | 786641 |
| MPN | HPT2-1650M |
| Brand | FSP |
| Product Condition | Brand New/Unused |
| PSU Form Factor | ATX / PS2 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.fsplifestyle.com/ |
