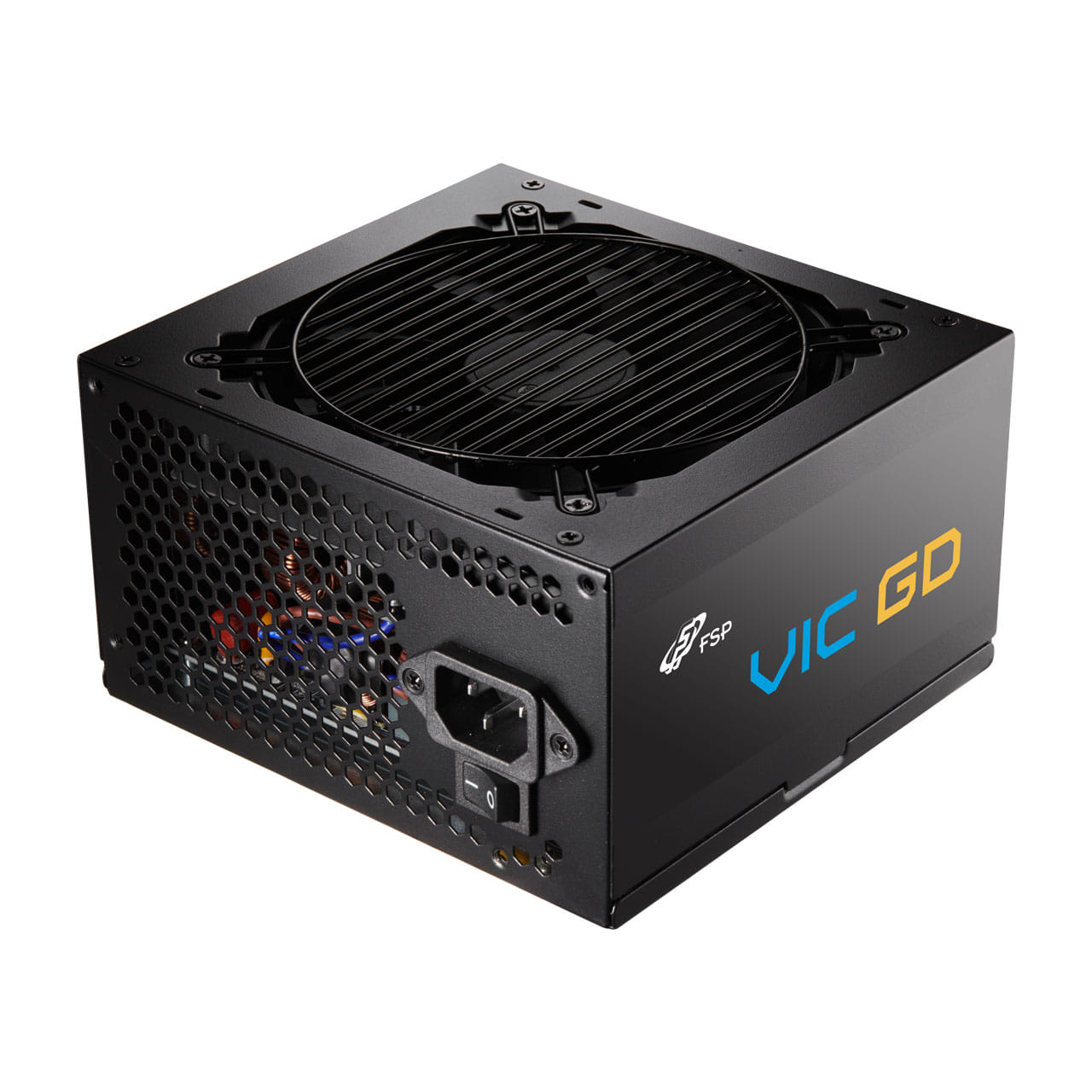

FSP VIC GD 850W Power supply unit ATX ATX3.1 Black, 850 W, 220 - 240 V, 50/60 Hz, 6 - 3 A, Active, 80 W
The Future is Now?ATX 3.1 Ready
Following the latest ATX 3.1 regulation, this series supports 2 x total power excursion, and the hold-up time complies Intel®'s recommended level to provide PC system a high reliability.
+5V & 3.3V DC to DC Circuit Design
Increase the efficiency and stabilize the output voltage to ensure system stability.
High Efficiency in Gold-certified
Certified by world-class organizations 80 PLUS® gold certification for lower power loss, less heat, and quieter operation
Power-Ready +12V Single Rail
Engineered for power-hungry VGA cards, this design delivers robust power to handle even the most demanding overloading conditions, ensuring peak performance in every gaming session.
Durable 105? Bulk Capacitor
The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.
Quiet and Long-lasting HDB Fan
Built with optimized thermal solution and an advanced 120mm HDB fan for cooler components and quieter operation.
Compact PSU Size?140 x 150 x 86mm
140mm in length which is relatively shorter than industry standard, it's ideal for compact PC or space-constraint environment without compromising on performance.
Thermal Resilience: Power You Can Depend On
The VIC GD power supply is engineered for reliable power delivery, even in temperatures up to 40DegC. Count on stable performance for your everyday computing, ensuring system longevity without heat concerns.
*Performance data based on testing conducted at 25DegC ambient temperature.
Premium, Black Embossed Cables
Featuring improved black, embossed cables that are soft and easy to bend, users can manage them more easily, saving time and creating more space for optimal cooling performance in your PC build.
Strong Power Supply for CPU Needs
This power supply is equipped with dual 8-pin PCIe power connectors, delivering ample 12V power to meet the demands of high-performance CPUs.
Following the latest ATX 3.1 regulation, this series supports 2 x total power excursion, and the hold-up time complies Intel®'s recommended level to provide PC system a high reliability.
+5V & 3.3V DC to DC Circuit Design
Increase the efficiency and stabilize the output voltage to ensure system stability.
High Efficiency in Gold-certified
Certified by world-class organizations 80 PLUS® gold certification for lower power loss, less heat, and quieter operation
Power-Ready +12V Single Rail
Engineered for power-hungry VGA cards, this design delivers robust power to handle even the most demanding overloading conditions, ensuring peak performance in every gaming session.
Durable 105? Bulk Capacitor
The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.
Quiet and Long-lasting HDB Fan
Built with optimized thermal solution and an advanced 120mm HDB fan for cooler components and quieter operation.
Compact PSU Size?140 x 150 x 86mm
140mm in length which is relatively shorter than industry standard, it's ideal for compact PC or space-constraint environment without compromising on performance.
Thermal Resilience: Power You Can Depend On
The VIC GD power supply is engineered for reliable power delivery, even in temperatures up to 40DegC. Count on stable performance for your everyday computing, ensuring system longevity without heat concerns.
*Performance data based on testing conducted at 25DegC ambient temperature.
Premium, Black Embossed Cables
Featuring improved black, embossed cables that are soft and easy to bend, users can manage them more easily, saving time and creating more space for optimal cooling performance in your PC build.
Strong Power Supply for CPU Needs
This power supply is equipped with dual 8-pin PCIe power connectors, delivering ample 12V power to meet the demands of high-performance CPUs.
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 850 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 220 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 6 - 3 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 80 W |
| Combined power (+12V) | 849.6 W |
| Combined power (+5V) | 80 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 16 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over voltage, Over current, Short circuit, Over power, Under voltage, Overheating, Surge & inrush, Surge & inrush protection (SIP), Surge and inrush, No load operation |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Motherboard power cable length | 50 cm |
| Number of SATA power connectors | 5 |
| SATA power cable length | 450,600,750,900 mm |
| Number of SATA power cables | 2 |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 3 |
| Peripheral (Molex) power cable length | 600,750,900 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power connectors (12-pin) | 1 |
| PCI Express power cable length | 60 cm |
| CPU power connector (4+4 pin) |
 |
| CPU power cable length | 80 cm |
| PCI Express connector |
|
| Cabling type | Non-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 3.1 |
| EPS version | 2.92 |
| Bearing technology | HDB |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Logistics data | |
| Warranty period | 3 year(s) |
| SKU | 832243 |
| MPN | VIC-850GD |
| Brand | FSP |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.fsplifestyle.com/ |
