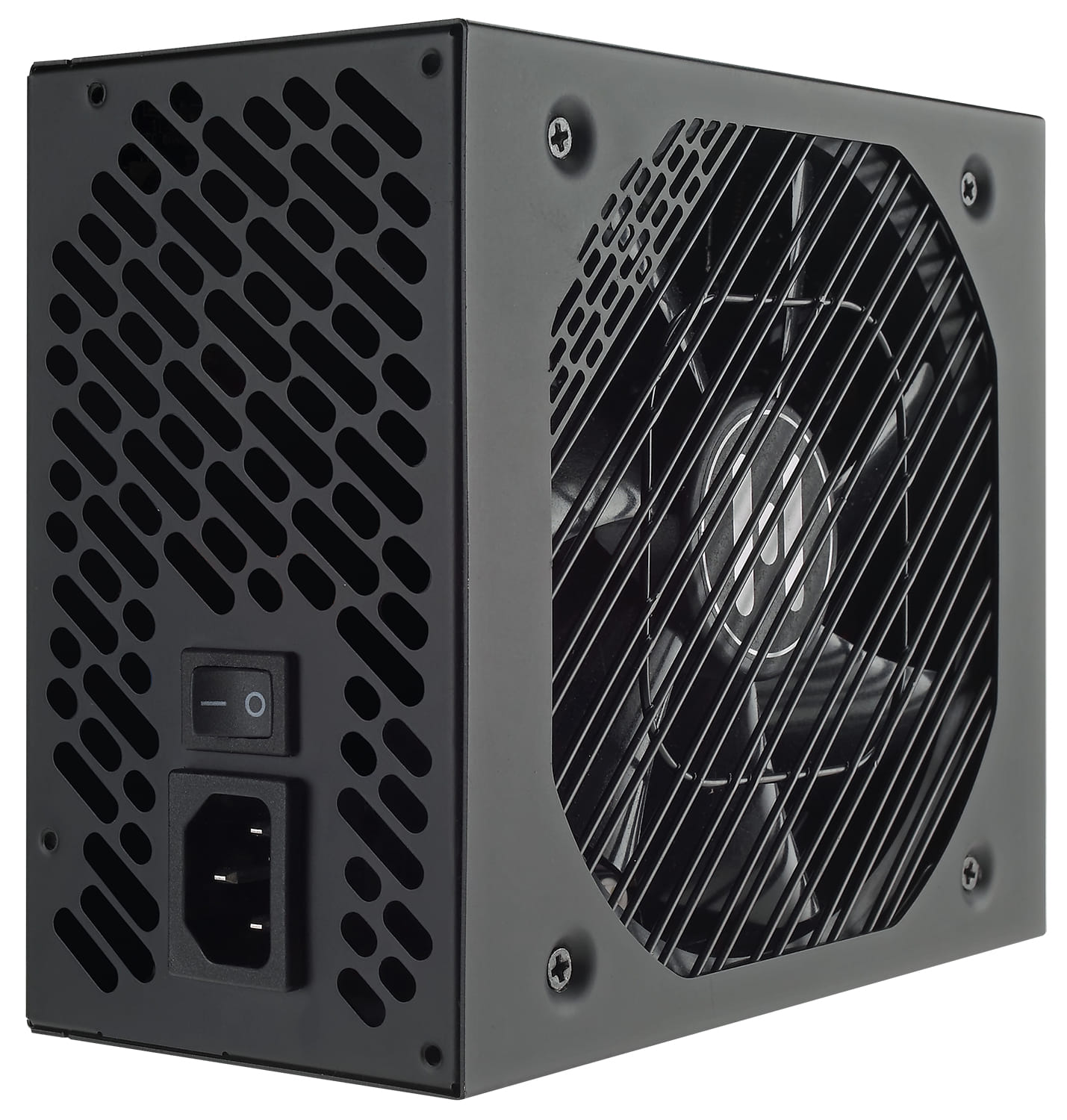

FSP Hydro G, 650 W, 100 - 240 V, 50 - 60 Hz, 8.5 A, Active, 150 W
FSP Hydro G series stands for the needs of PC DIY enthusiasts and gamers who want a high end PSU with stylish ID design but do not want to compromise electronic performance at all. By server grade circuit and advanced thermal layout design, Hydro G series deliver full load (wattage) at 50DegC ambient temperature. Silent operation is considered by intelligent fan speed control circuit design with 0dBA function to fulfill gamers need in playing games.
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 650 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8.5 A |
| Power factor | 0.99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 650 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 17.5 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3.5 A |
| Efficiency | 90% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Number of SATA power connectors | 10 |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 5 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) |
 |
| Floppy drive power connector | 1 |
| Floppy disk drive connector |
|
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 2.4 |
| EPS version | 2.92 |
| Bearing technology | FDB |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 13.5 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan location | Top |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Certificates | |
| Certification | CE, CB, TUV, C-tick |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 170 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Packaging data | |
| Manual |
|
| Package type The type of product package e.g. box. | Box |
| Other features | |
| Noise level (quiet mode, 50%) | 15 dB |
| Warranty card |
|
| SKU | 820137 |
| MPN | HG650 |
| Brand | FSP |
| Product Condition | Brand New/Unused |
| Stock Availability | In Stock at Castle Hill |
| Product Use | General |
