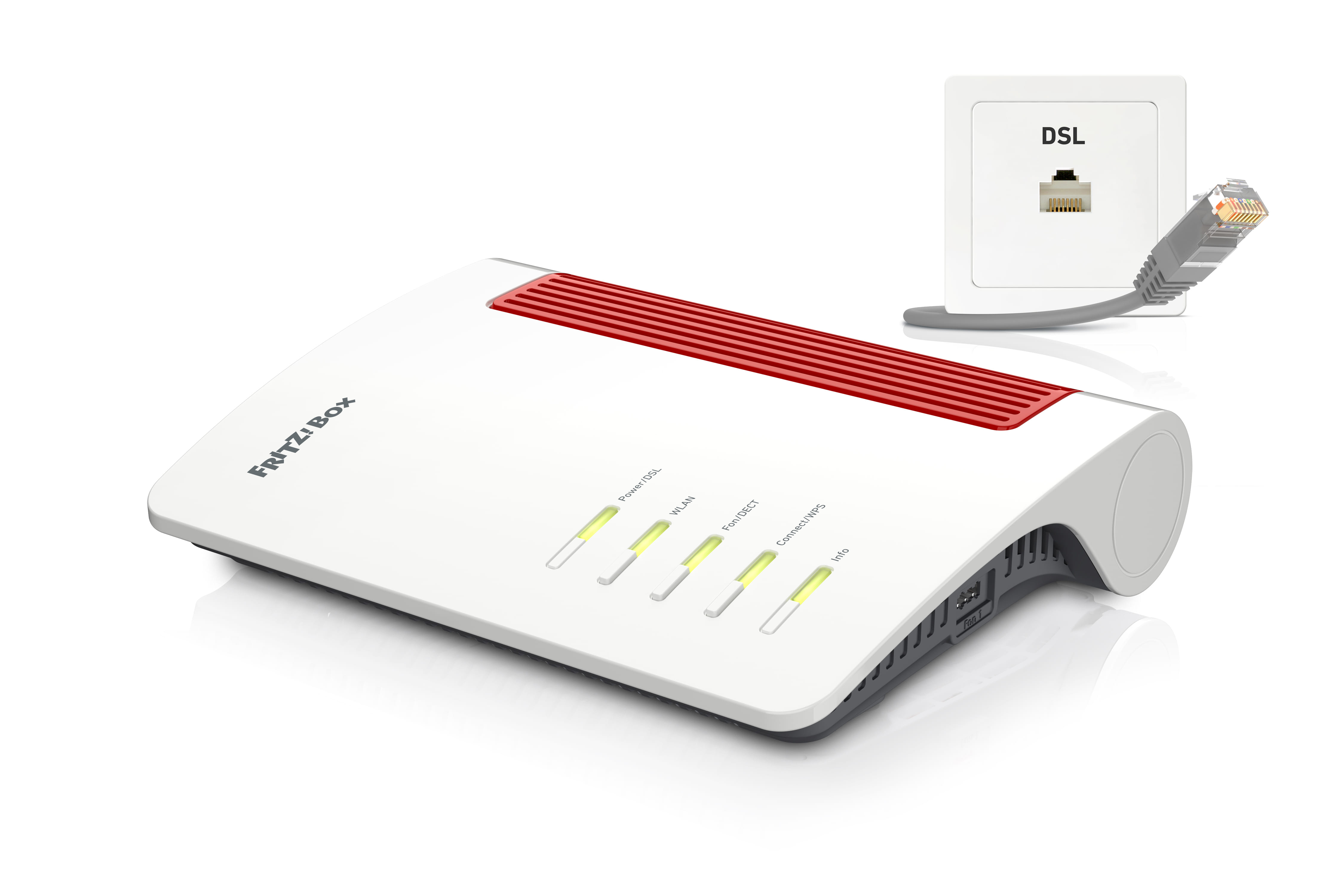

FRITZBox 7690 WiFi7 DSL Router

WAN connection
Ethernet WAN
DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option.
3G/4G USB modem compatibility
WAN connection type	RJ-45

Wireless LAN features
Wi-Fi band The frequency bands the product features.	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 7 (802.11be)
WLAN data transfer rate (max)	5760 Mbit/s
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	2.5 Gigabit Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Cabling technology Type of cable technology performance.	10/100/1000Base-T(X)
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.3bz
Automatic channel selection
Dynamic DNS (DDNS)

DSL features
ADSL2+
VDSL

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	3
USB port The device features a socket into which a USB cable can be plugged.
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1
RJ-11 ports quantity	2
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Management features
Wake-on-LAN ready
WPS push button
Intelligent Mesh technology

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	WPA2, WPA3
Network address translation (NAT)

Protocols

DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.

Design
Product colour The colour e.g. red, blue, green, black, white.	White
Indication light
Product type The sub-category of the product.	Tabletop router

Packaging content
Cables included	DSL, LAN (RJ-45)
AC adapter included
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Antenna
Antenna design	Internal
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	4x4

Power
Power source type What the power source is.	AC
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	13 W

Weight & dimensions
Width The measurement or extent of something from side to side.	250 mm
Depth The distance from the front to the back of something.	184 mm
Height The measurement of the product from head to foot or from base to top.	48 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	657 g

Packaging data
Package width The distance from one side of the packaging to the other.	305.5 mm
Package depth The distance from the front to the back of the packaging.	69 mm
Package height The distance from the top to the bottom of the packaging.	240 mm
Package weight Weight of the packaged product.	1.06 kg
Package type The type of product package e.g. box.	Box
