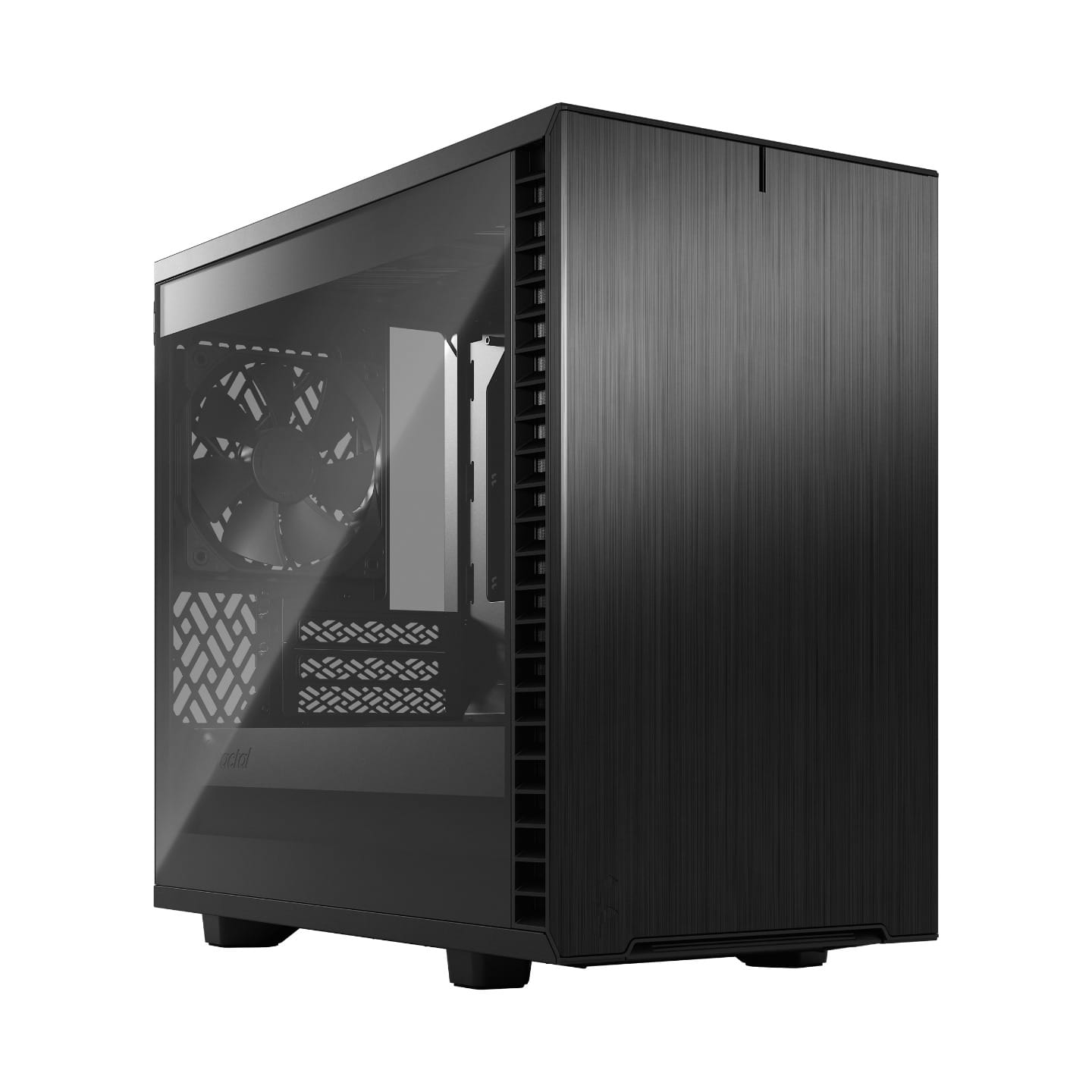

Define 7 Nano - Black TG Light Tint
Define 7 Nano
The Define 7 Nano re-defines precision, bringing clean design and a host of features from its larger siblings to a minimized form factor. The compact yet spacious interior can accommodate all Mini ITX and Mini-DTX motherboards, and the option to house a GPU up to 306 mm, making it highly versatile.
Compact yet spacious interior accommodates any Mini ITX and Mini-DTX motherboard
Room for GPU up to 306 mm with a 25 mm front fan
Flexible storage option supporting one 3.5 drive and three 2.5 drives
< xml version="1.0" encoding="utf-8" >
| Name | Value | |
|---|---|---|
| 2.5" drive mounts | 3 (2 included) | |
| 3.5"/2.5" drive mounts | 1 (included) | |
| Bottom fan | 1x 120 mm (requires removal of HDD tray) | |
| Cable routing grommets | Yes | |
| Cable routing space | 15-25 mm | |
| Captive thumbscrews | SSD and PSU brackets | |
| Case dimensions (LxWxH) | 399 x 205 x 361 mm | |
| Compatibility | CPU cooler max height | 167 mm |
| Dust filters | Top, Front, Bottom and PSU | |
| Expansion slots | 2 | |
| Fixed cable ties | Yes | |
| Front fan | 2x 120/140 mm (1x Dynamic X2 GP-14 included) | |
| Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio | |
| Compatibility | Front radiator | 120/240, 140/280 mm (316 mm max height, 146 mm max width, 280 mm recommended in push configuration for easier fit) |
| Compatibility | GPU max length | 331 mm, 306 mm with front fan |
| Compatibility | GPU max thickness | 57 mm / 2.8 slot |
| Left side panel | Tempered glass | |
| Compatibility | Motherboard compatibility | Mini ITX / Mini-DTX |
| Compatibility | Power supply type | ATX |
| Product Type | Gaming Case | |
| Compatibility | PSU max length | 165 mm recommended (200 mm without HDD-tray and modular air duct) |
| Rear fan | 1x 120 mm (1x Dynamic X2 GP-12 included) | |
| Compatibility | Rear radiator | 120 mm |
| Right side panel | Industrial sound-damped steel | |
| Tool-less push-to-lock | Both side panels | |
| Top fan | 2x 120 or 1x 140 slim fan (max 15 mm) | |
| Total fan mounts | 6x 120 mm or 3x 140 mm (top 140mm fan mount requires 15 mm slim fans) | |
| Warranty | 2 Years | |
| Weight | Net: 7.1Kg; Gross: 8.5Kg |
| SKU | 681072 |
| MPN | FD-C-DEF7N-02 |
| Brand | Fractal |
| Product Condition | Brand New/Unused |
| Product Use | General |
