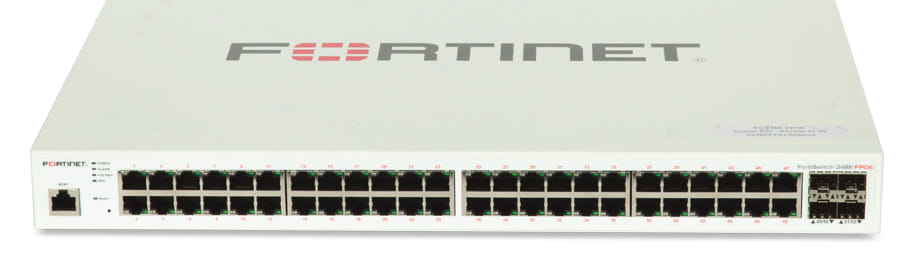

Fortinet Layer 2/3 FortiGate Controller Compatible PoE+ 740W Secure Switch

Management features
Switch type What switch device has, managed or unmanaged.	Managed
Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).	L2

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	48
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	48
SFP module slots quantity	4
Console port	RJ-45

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring
Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Flow control support
Link aggregation
Broadcast storm control
Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Spanning tree protocol
Auto-negotiation
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Virtual LAN features	Tagged VLAN
Number of VLANs	4096

Data transmission
Switching capacity The data transfer capacity of the switch per second.	104 Gbit/s
Forwarding rate	155 Mpps
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	16000 entries
Latency (1 Gbps)	1 µs
Jumbo frames support
Packet buffer memory	1.5 MB

Security
DHCP features	DHCP client, DHCP relay, DHCP snooping
IGMP snooping
BPDU filtering/protection
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication

Multicast features
Multicast support

Protocols
Management protocols	HTTP / HTTPS, SNMP v1/v2c/v3, Telnet / SSH

Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Form factor The shape or design of the product.	1U
Product colour The colour e.g. red, blue, green, black, white.	White
LED indicators
Certification	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Performance
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	512 MB
Flash memory	128 MB

Power
Power supply included There is a power supply with this product.
Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails.
Number of power supply units	1
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	842 W
Power consumption (max) The maximum amount of power used by the device.	855.02 W

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet (PoE) ports quantity	48
Total Power over Ethernet (PoE) budget	740 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 50 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation The heat generated by the power supply.	162.87865 BTU/h

Weight & dimensions
Width The measurement or extent of something from side to side.	440 mm
Depth The distance from the front to the back of something.	410 mm
Height The measurement of the product from head to foot or from base to top.	44 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	6.1 kg
