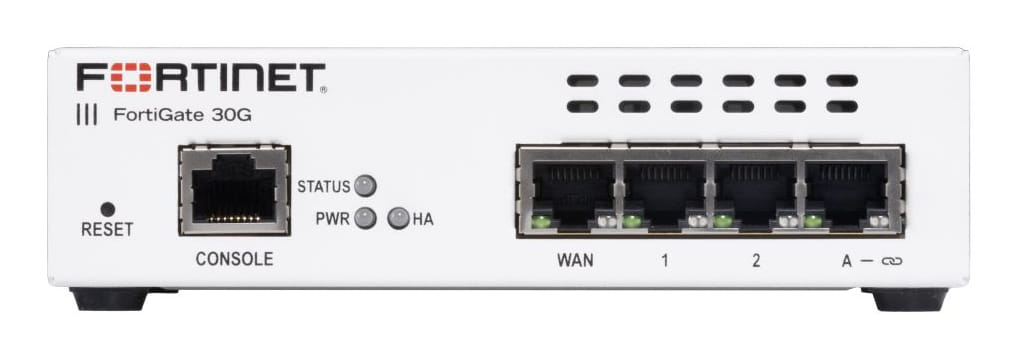

Fortinet FortiGate 31G, 5.85 Mpps, 4 Gbit/s, 3.5 Gbit/s, 800 Mbit/s, 500 Mbit/s, 400 Mbit/s
Converged Next-Generation Firewall and SD-WAN
The FortiGate and FortiWiFi 30G series integrate firewalling, SD-WAN, and security in one appliance, making them perfect for building secure networks at distributed enterprise sites and transforming WAN architecture at any scale.
The 30G series is powered by FortiOS, the industry's first converged networking and security operating system. This convergence enables businesses to efficiently and optimally secure today's dynamic digital infrastructures.
As a cornerstone of the Fortinet Security Fabric platform, the FortiGate NGFW works seamlessly with FortiGuard AI-Powered Security Services to deliver coordinated, automated, end-to-end threat protection in real time.
The 30G family is built on the patented SD-WAN-based ASIC, which delivers unmatched performance over traditional CPUs with lower cost and reduced power consumption. This application-specific design and embedded multi-core processor further accelerate the convergence of networking and security functions in the 30G family to optimize secure connections and deliver a robust user experience at branch locations.
The FortiGate and FortiWiFi 30G series integrate firewalling, SD-WAN, and security in one appliance, making them perfect for building secure networks at distributed enterprise sites and transforming WAN architecture at any scale.
The 30G series is powered by FortiOS, the industry's first converged networking and security operating system. This convergence enables businesses to efficiently and optimally secure today's dynamic digital infrastructures.
As a cornerstone of the Fortinet Security Fabric platform, the FortiGate NGFW works seamlessly with FortiGuard AI-Powered Security Services to deliver coordinated, automated, end-to-end threat protection in real time.
The 30G family is built on the patented SD-WAN-based ASIC, which delivers unmatched performance over traditional CPUs with lower cost and reduced power consumption. This application-specific design and embedded multi-core processor further accelerate the convergence of networking and security functions in the 30G family to optimize secure connections and deliver a robust user experience at branch locations.
| Data transmission | |
| Firewall throughput | 5.85 Mpps |
| Firewall (UDP 1518) throughput | 4 Gbit/s |
| IPSec VPN throughput | 3.5 Gbit/s |
| IPS/IDS throughput | 800 Mbit/s |
| Threat protection throughput | 500 Mbit/s |
| SSL inspection throughput | 400 Mbit/s |
| Gateway antivirus throughput | 200 Gbit/s |
| Firewall latency | 2.87 µs |
| Security policies (max) | 2000 |
| Network | |
| Concurrent SSL/VPN connections (maximum) | 600000 |
| VPN tunnels quantity | 250 |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Gigabit Ethernet (copper) ports quantity | 4 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Console port | RJ-45 |
| Number of console ports | 1 |
| WAN connection A wide area network (WAN) is a network that covers a broad area (i.e. any telecommunications network that links across metropolitan, regional, or national boundaries such as the Internet) using private or public network transports. Business and government entities utilize WANs to relay data among employees, clients, buyers, and suppliers from various geographical locations. | Ethernet (RJ-45) |
| Storage | |
| Storage media type Type of storage medium, like flash, hard disk drive, etc. | SSD |
| Total storage capacity The total amount of data that can be stored on the device. | 30 GB |
| SSD capacity The Solid State Drive's data storage capacity. | 30 GB |
| Number of SSDs installed | 1 |
| Design | |
| Form factor The shape or design of the product. | Desktop |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100-240 V |
| AC input frequency | 50/60 Hz |
| Input current | 2 A |
| DC input voltage | 12 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 6.8 W |
| Power consumption (max) The maximum amount of power used by the device. | 8.2 W |
| Certificates | |
| Certification | USGv6/IPv6 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -35 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Operating altitude | 0 - 3048 m |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 142 mm |
| Depth The distance from the front to the back of something. | 160 mm |
| Height The measurement of the product from head to foot or from base to top. | 40.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 600 g |
| SKU | 841645 |
| MPN | FG-31G |
| Brand | Fortinet |
| Product Condition | Brand New/Unused |
| Product Use | General |
