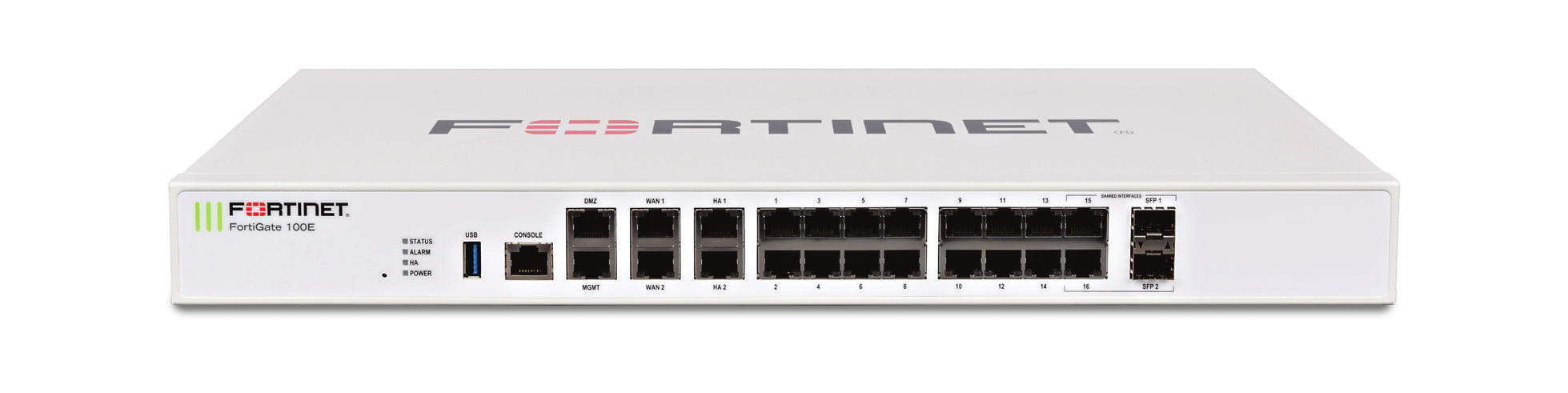

Fortinet FortiGate 100E, 7400 Mbit/s, 4000 Mbit/s, 500 Mbit/s, 190 transactions/sec, 1000 transactions/sec, 87 BTU/h
FortiGate Mid-Range Next-Generation Firewall
FortiGate mid-range next-generation firewalls (NGFWs) provide high performance, multi-layered advanced security, and better visibility to protect against cyber-attacks while reducing complexity. FortiGate firewalls are purpose-built with security processers to enable the industry s best threat protection and performance for SSL-encrypted traffic.
By providing granular visibility of applications, users, and IOT devices, these appliances are designed to identify issues quickly and intuitively. Our security services from FortiGuard Labs provide continuous threat intelligence updates to keep organizations protected from:
- Exploits and encrypted malware
- Malicious websites and botnets
- Ransomware and unknown attacks
FortiGate next-generation firewalls are the core of Fortinet Security Fabric, which defends known and unknown attacks and provides network security across the entire attack surface.
FortiGate mid-range firewalls include:
- Top-rated security validated by NSS Labs, Virus Bulletin, and AV Comparatives
- icon benefits two factor auth
- Industry s highest threat protection and SSL inspection performance
- icon benefits reduce complicity
- Multi-layered security capabilities to reduce complexity
- visibility icon
- Deep visibility and granular control of applications, users, and IOT devices
- platform support icon
- Single-pane-of-glass view with centralized management and reporting
FortiGate mid-range next-generation firewalls (NGFWs) provide high performance, multi-layered advanced security, and better visibility to protect against cyber-attacks while reducing complexity. FortiGate firewalls are purpose-built with security processers to enable the industry s best threat protection and performance for SSL-encrypted traffic.
By providing granular visibility of applications, users, and IOT devices, these appliances are designed to identify issues quickly and intuitively. Our security services from FortiGuard Labs provide continuous threat intelligence updates to keep organizations protected from:
- Exploits and encrypted malware
- Malicious websites and botnets
- Ransomware and unknown attacks
FortiGate next-generation firewalls are the core of Fortinet Security Fabric, which defends known and unknown attacks and provides network security across the entire attack surface.
FortiGate mid-range firewalls include:
- Top-rated security validated by NSS Labs, Virus Bulletin, and AV Comparatives
- icon benefits two factor auth
- Industry s highest threat protection and SSL inspection performance
- icon benefits reduce complicity
- Multi-layered security capabilities to reduce complexity
- visibility icon
- Deep visibility and granular control of applications, users, and IOT devices
- platform support icon
- Single-pane-of-glass view with centralized management and reporting
| Data transmission | |
| Firewall throughput The average rate of successful data delivery over through a Firewall. The throughput is usually measured in bits per second (bit/s or bps), and sometimes in data packets per second or data packets per time slot. | 7400 Mbit/s |
| VPN throughput | 4000 Mbit/s |
| IPS/IDS throughput | 500 Mbit/s |
| SSL performance | 190 transactions/sec |
| HTTP performance | 1000 transactions/sec |
| Performance | |
| Built-in processor Whether or not a processor is built into the device. |
 |
| Heat dissipation The heat generated by the power supply. | 87 BTU/h |
| Concurrent users | 300 user(s) |
| Reset button |
 |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 40.4 dB |
| Network | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | Not supported |
| VPN tunnels quantity | 10000 |
| Number of users The number of people that use or can use this product. | 300 user(s) |
| Quality of Service (QoS) support |
|
| Point-to-point protocol over Ethernet (PPPoE) The Point-to-Point Protocol over Ethernet (PPPoE) is a network protocol for encapsulating PPP frames inside Ethernet frames. It appeared in 1999, in the context of the boom of DSL as the solution for tunneling packets over the DSL connection to the ISP's IP network, and from there to the rest of the Internet. A 2005 networking book noted that "Most DSL providers use PPPoE, which provides authentication, encryption, and compression." Typical use of PPPoE involves leveraging the PPP facilities for authenticating the user with a username and password, predominately via the PAP protocol and less often via CHAP. |
|
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | SHA-256 |
| Firewall security Part of a computer system or network which is designed to block unauthorized access while permitting outward communication. | UDP |
| VPN support | IPsec, SSL |
| Management features | |
| LED indicators |
|
| Management platform | FortiOS |
| Web-based management Using a website/web application to manage something. |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Gigabit Ethernet (copper) ports quantity | 14 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| WAN connection A wide area network (WAN) is a network that covers a broad area (i.e. any telecommunications network that links across metropolitan, regional, or national boundaries such as the Internet) using private or public network transports. Business and government entities utilize WANs to relay data among employees, clients, buyers, and suppliers from various geographical locations. | Ethernet (RJ-45) |
| Ethernet DMZ ports quantity | 1 |
| ExpressCard slot Port for an ExpressCard, which contain electronic circuitry and connectors to which external devices (peripherals) can be connected. The ExpressCard standard has replaced the PC Card (also known as PCMCIA) standard and has been used since 2006. |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Form factor The shape or design of the product. | 1U |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 23 W |
| Peak power This is the maximum power required by the device or peak music power. | 25.5 W |
| Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails. |
|
| Number of power supply units | 1 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -35 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 2250 m |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 432 x 254 x 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.3 kg |
| Packaging content | |
| Bundled software Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer. | Fortinet FortiGuard |
| SKU | 499196 |
| MPN | FG-100E |
| Brand | Fortinet |
| Product Condition | Brand New/Unused |
| Product Use | General |
