Fortinet 5 x GE RJ45 ports (including 1 x WAN Port, 4 x Internal Ports), Wireless (802.11a/b/g/n/ac), with Embedded 3G/4G/LTE wireless wan module, 2 external SMA WWAN antennas included Region Code N, 5000 Mbit/s, 7.5 Mpps, 4.4 Gbit/s, 1000 Mbit/s, 310 Mbit/s, 4 s

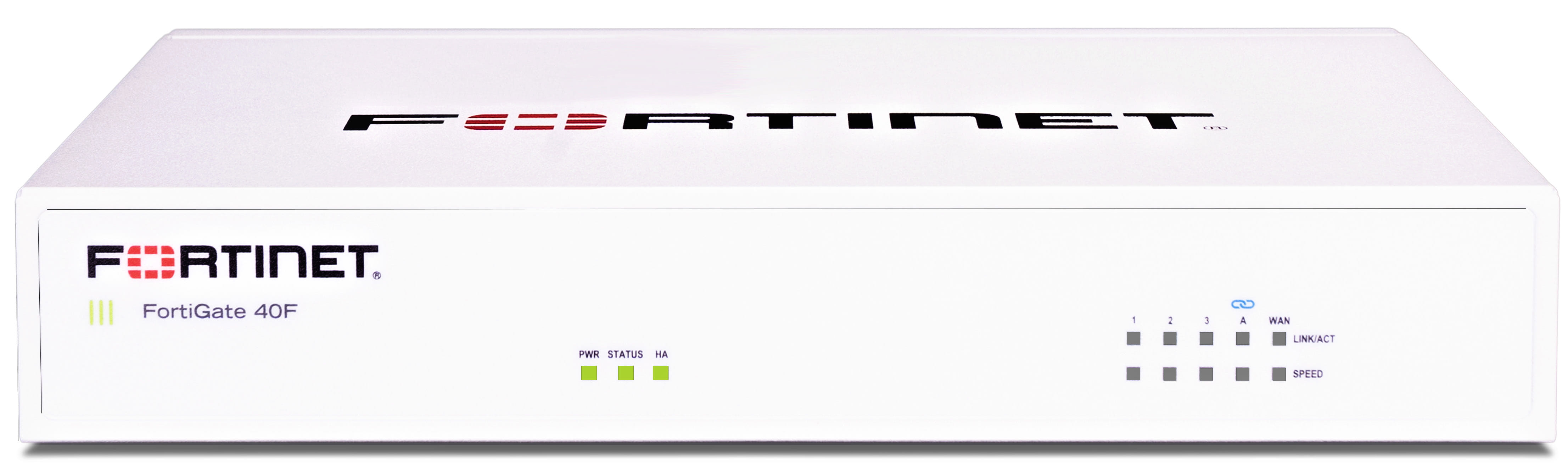

The FortiGate/FortiWiFi 40F series provides a fast and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet's Security-Driven Networking approach provides tight integration of the network to the new generation of security.
| Data transmission | |
| Firewall throughput | 7.5 Mpps |
| IPSec VPN throughput | 4.4 Gbit/s |
| IPS/IDS throughput | 1000 Mbit/s |
| SSL inspection throughput | 310 Mbit/s |
| Firewall latency | 4 µs |
| Security policies (max) | 5000 |
| Performance | |
| Heat dissipation The heat generated by the power supply. | 52.55 BTU/h |
| Reset button |
 |
| Certification | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB, ICSA Labs |
| Network | |
| VPN tunnels quantity | 250 |
| Active TCP connections (max) | 700000 |
| Security | |
| Domains quantity | 10 |
| Management features | |
| LED indicators |
|
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Console port | RJ-45 |
| Number of console ports | 1 |
| WAN connection A wide area network (WAN) is a network that covers a broad area (i.e. any telecommunications network that links across metropolitan, regional, or national boundaries such as the Internet) using private or public network transports. Business and government entities utilize WANs to relay data among employees, clients, buyers, and suppliers from various geographical locations. | Ethernet (RJ-45) |
| Design | |
| Form factor The shape or design of the product. | Desktop |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100-240 V |
| AC input frequency | 50/60 Hz |
| Input current | 3 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 12.4 W |
| Power consumption (max) The maximum amount of power used by the device. | 15.4 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -35 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 2250 m |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 216 mm |
| Depth The distance from the front to the back of something. | 160 mm |
| Height The measurement of the product from head to foot or from base to top. | 38.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1 kg |
| SKU | 695654 |
| MPN | FWF-40F-3G4G-N |
| Brand | Fortinet |
