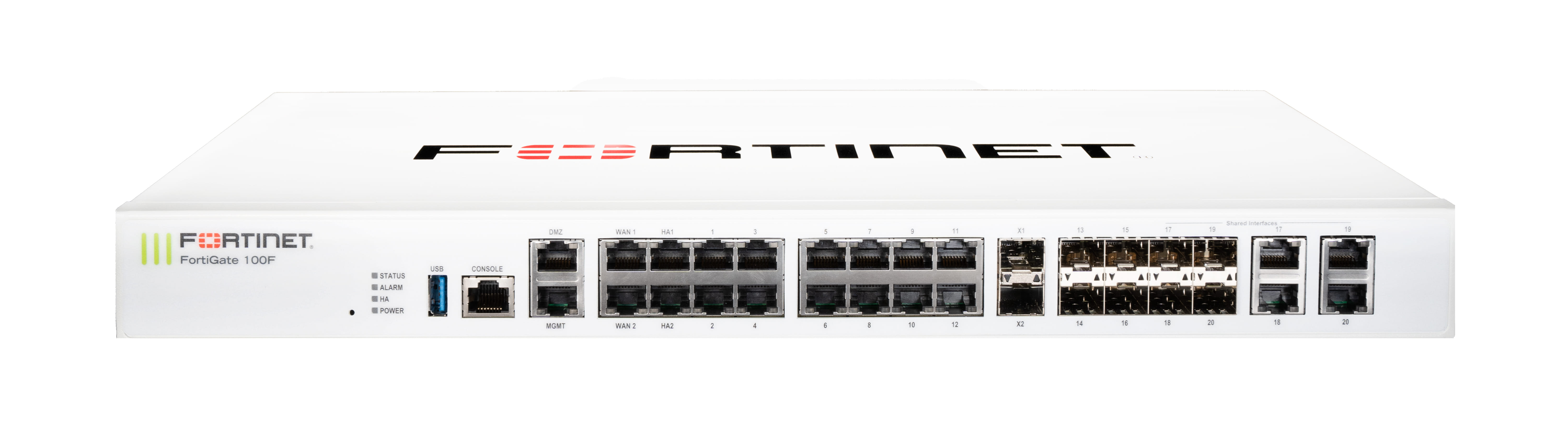

Fortinet 22GE 4SFP+10GE SFP 480GB onboard Switch
Item No:
695630
MPN:
FG-100F
$8,594.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Fortinet 22 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 x Mgmt port, 2 x HA ports, 16 x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10G SFP+ FortiLinks, dual power supplies redundancy., 20000 Mbit/s, 15 Mpps, 11.5 Gbit/s, 2600 Mbit/s, 1000 Mbit/s, 5 s
The FortiGate 100F series delivers next generation firewall (NGFW) capabilities for mid-sized to large enterprises deployed at the campus or enterprise branch level. Protects against cyber threats with high-powered security processors for optimized network performance, security efficacy and deep visibility. Fortinet's Security-Driven Networking approach provides tight integration of the network to the new generation of security.
| Data transmission | |
| Firewall throughput | 15 Mpps |
| IPSec VPN throughput | 11.5 Gbit/s |
| IPS/IDS throughput | 2600 Mbit/s |
| SSL inspection throughput | 1000 Mbit/s |
| Firewall latency | 5 µs |
| Security policies (max) | 10000 |
| Performance | |
| Heat dissipation The heat generated by the power supply. | 119.77 BTU/h |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 40.4 dB |
| Network | |
| Concurrent SSL/VPN connections (default) | 135000 |
| Concurrent SSL/VPN connections (maximum) | 16000 |
| Active TCP connections (max) | 56000 |
| Security | |
| Domains quantity | 10 |
| Management features | |
| LED indicators |
 |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Combo SFP ports quantity | 4 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 12 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Console port | RJ-45 |
| Number of console ports | 1 |
| WAN connection A wide area network (WAN) is a network that covers a broad area (i.e. any telecommunications network that links across metropolitan, regional, or national boundaries such as the Internet) using private or public network transports. Business and government entities utilize WANs to relay data among employees, clients, buyers, and suppliers from various geographical locations. | Ethernet (RJ-45) |
| Ethernet DMZ ports quantity | 2 |
| SFP module slots quantity | 4 |
| SFP+ module slots quantity | 2 |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Form factor The shape or design of the product. | 1U |
| Power | |
| AC input frequency | 50/60 Hz |
| Input current | 0.5 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 35.1 W |
| Power consumption (max) The maximum amount of power used by the device. | 38.7 W |
| Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails. |
|
| Number of power supply units | 2 |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -35 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 2250 m |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 432 mm |
| Depth The distance from the front to the back of something. | 25 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| SKU | 695630 |
| MPN | FG-100F |
| Brand | Fortinet |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
