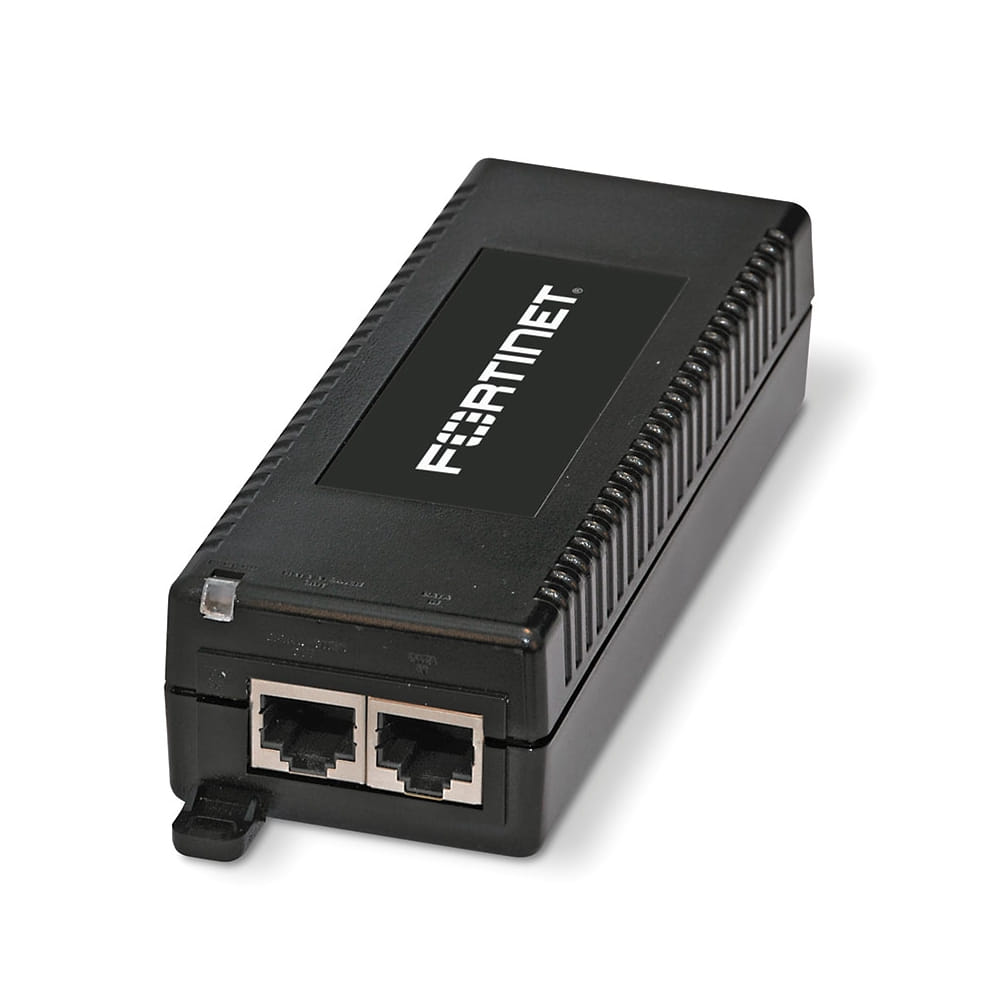

Fortinet 1-Port Gigabit PoE Power Injector, 802.3at up to 30W for GPI-130 Gigabit PoE Injector, Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.3at, 100 m, 55 V, 100 - 240 V
The single-port GPI-115 and GPI-130 Power over Ethernet (PoE) injectors offer a compact and cost-effective, fully IEEE 802.3af/802.3at-compliant solution to power FortiAP™ wireless access points and other compliant devices. They deliver single-port, mid-span, with 15.4/30 Watts of Gigabit Ethernet (GE) PoE, giving you maximum deployment flexibility.
The Advantage of Mid-Span Power
The mid-span injector works with legacy network devices and thus eliminates the need to forklift upgrade installed switches. Moreover, they operate in High Availability configuration by connecting to an existing Ethernet switch Uninterruptable Power Supply (UPS) or alternatively to its own dedicated UPS.
Remote Power Wireless LAN Access Points
A PoE injector makes installing FortiAP access points easy and economical. It allows you to place the FortiAP access point at its optimal location by eliminating the need for an AC power outlet in a ceiling or wall. The device injects DC power directly into the same GE cable that carries the Ethernet traffic, avoiding the installation of additional cabling.With the device, you have the freedom to deploy Fortinet's secure wireless solution anywhere in your facility. It allows you to take advantage of the wireless controller feature in every FortiGate® consolidated security platform. Its plug-and-play capabilities enable rapid deployment of your wireless infrastructure, accelerating the deployment of secure wireless access.
The Advantage of Mid-Span Power
The mid-span injector works with legacy network devices and thus eliminates the need to forklift upgrade installed switches. Moreover, they operate in High Availability configuration by connecting to an existing Ethernet switch Uninterruptable Power Supply (UPS) or alternatively to its own dedicated UPS.
Remote Power Wireless LAN Access Points
A PoE injector makes installing FortiAP access points easy and economical. It allows you to place the FortiAP access point at its optimal location by eliminating the need for an AC power outlet in a ceiling or wall. The device injects DC power directly into the same GE cable that carries the Ethernet traffic, avoiding the installation of additional cabling.With the device, you have the freedom to deploy Fortinet's secure wireless solution anywhere in your facility. It allows you to take advantage of the wireless controller feature in every FortiGate® consolidated security platform. Its plug-and-play capabilities enable rapid deployment of your wireless infrastructure, accelerating the deployment of secure wireless access.
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3at |
| Features | |
| Maximum operating distance The maximum distance from which you can operate the device. | 100 m |
| LED indicators |
 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Power | |
| Power over Ethernet (PoE) voltage One of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. | 55 V |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 0.8 A |
| Total Power over Ethernet (PoE) budget | 36 W |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | RoHS, WEEE, CE, UL/cUL, GS Mark, FCC |
| Operational conditions | |
| Operating temperature (T-T) | 32 - 104 °F |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 53 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 32.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 200 g |
| Packaging content | |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| SKU | 826837 |
| MPN | GPI-130 |
| Brand | Fortinet |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.fortinet.com/ |
