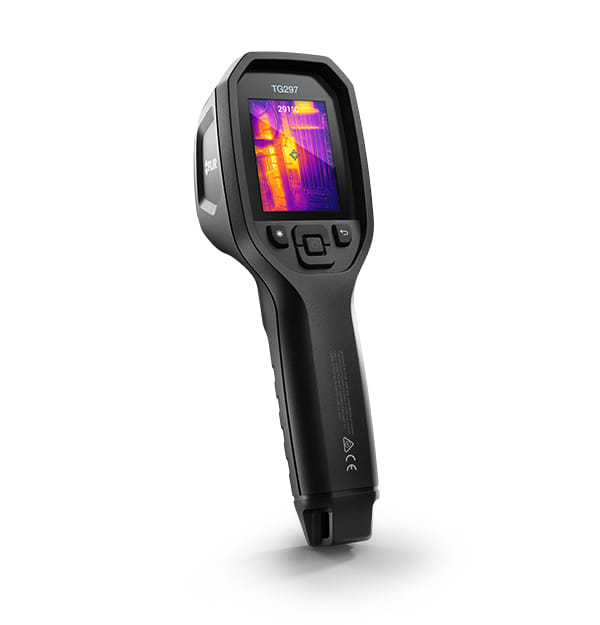

FLIR TG297, 25 1030 DegC, 7.5 14 m, 70 mK, FPA, 160 x 120 pixels, Black
FLIR TG297. Temperature measurement range: 25 1030 DegC, Infrared spectral band: 7.5 14 m, Thermal sensitivity (NETD): 70 mK. Sensor type: FPA, Sensor resolution (thermal module): 160 x 120 pixels. Product colour: Black, Display type: LCD, Display diagonal: 6.1 cm (2.4"). Battery life (max): 5 h. Width: 64 mm, Depth: 81 mm, Height: 210 mm
| Performance | |
| Temperature measurement range The minimum and maximum temperatures that can be measured. | -25 - 1030 °C |
| Infrared spectral band | 7.5 - 14 µm |
| Thermal sensitivity (NETD) | 70 mK |
| Lens system | |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | FPA |
| Sensor resolution (thermal module) | 160 x 120 pixels |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Display type Type of display (screen) e.g. LCD. | LCD |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 6.1 cm (2.4") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 320 x 240 pixels |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP54 |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -30 - 55 °C |
| Battery | |
| Battery life (max) Maximum battery life. Mobile Mark™ (2002) is the standard often used to benchmark battery life time. | 5 h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 64 mm |
| Depth The distance from the front to the back of something. | 81 mm |
| Height The measurement of the product from head to foot or from base to top. | 210 mm |
| SKU | 734213 |
| MPN | FLIR-TG297 |
| Brand | FLIR |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
