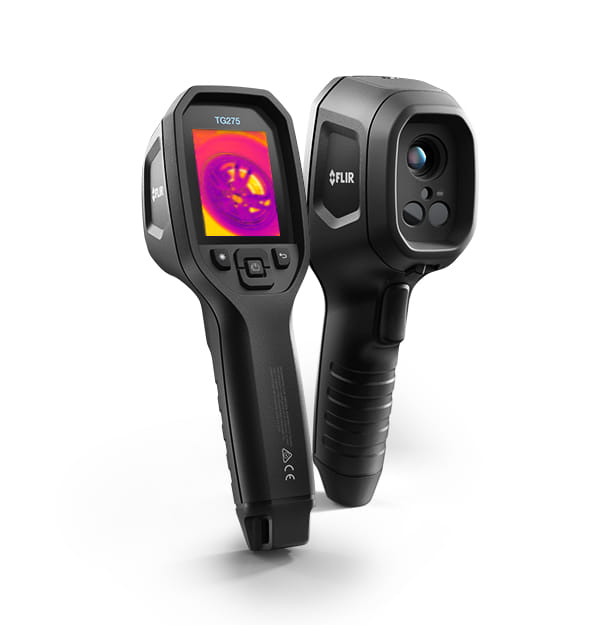

FLIR -TG275, -25 - 550
FLIR -TG275. Temperature measurement range: -25 - 550 DegC, Infrared spectral band: 7.5 - 14 m, Thermal sensitivity (NETD): 70 mK. Sensor type: FPA, Sensor resolution (thermal module): 160 x 120 pixels. Product colour: Black, Display type: LCD, Display diagonal: 6.1 cm (2.4"). Battery life (max): 5 h. Width: 64 mm, Depth: 81 mm, Height: 210 mm
| Performance | |
| Temperature measurement range The minimum and maximum temperatures that can be measured. | -25 - 550 °C |
| Infrared spectral band | 7.5 - 14 µm |
| Thermal sensitivity (NETD) | 70 mK |
| Lens system | |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | FPA |
| Sensor resolution (thermal module) | 160 x 120 pixels |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Display type Type of display (screen) e.g. LCD. | LCD |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 6.1 cm (2.4") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 320 x 240 pixels |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -30 - 55 °C |
| Battery | |
| Battery life (max) Maximum battery life. Mobile Mark™ (2002) is the standard often used to benchmark battery life time. | 5 h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 64 mm |
| Depth The distance from the front to the back of something. | 81 mm |
| Height The measurement of the product from head to foot or from base to top. | 210 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 394 g |
| SKU | 702926 |
| MPN | FLIR-TG275 |
| Brand | FLIR |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
