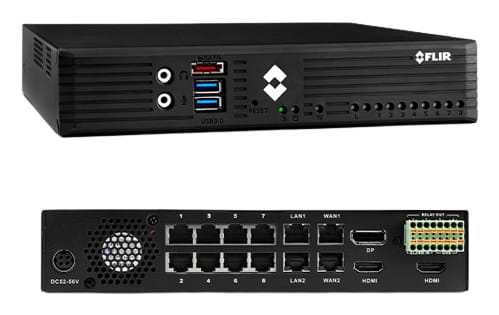

FLIR 16-Channel Meridian 8.0 4TB 8-Port/POE NVR
Item No:
738116
MPN:
USS-MR16-POE-04TB
$10,712.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
FLIR USS-MR16-POE-04TB, 16 channels, 1920 x 1080 pixels, 1080p, 8000 MB, DDR4, Windows 10 IoT Enterprise
The FLIR USS Edge Appliance is a compact video appliance ideal for mobile security deployments, including mass transportation, marine applications, and mobile command centers. Equipped with an eight-port PoE switch, up to 16TB of video storage, and built-in installer for the FLIR UVMS* or third party software for easy installation and setup. The USS Edge Appliance is an enterprise-grade solution that can be used as an independent VMS or to extend security systems across multiple locations.
| Performance | |
| Video input channels The number of channels for video input that the device features. | 16 channels |
| Alarm input channels | 4 |
| Alarm output channels | 4 |
| Video recording modes | 1080p |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 8000 MB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4 |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Windows 10 IoT Enterprise |
| Throughput data rate | 80 Mbit/s |
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 220 fps |
| Wireless LAN features | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Storage | |
| Number of HDDs installed The number of hard drives built into the device. | 1 |
| HDD capacity The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB. | 4 TB |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | SATA |
| HDD size The amount of data that the hard drive can store. | 3.5" |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) ports quantity | 8 |
| HDMI output The device features an HDMI output. |
|
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio output The type of audio output that the device produces, and the connector(s). | 1 |
| Microphone in The socket where a microphone is connected to the device. |
|
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3at |
| Features | |
| LED indicators |
|
| Certification | UL, CE, FCC, LVD |
| Processor | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 200 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 200 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 220 mm |
| Depth The distance from the front to the back of something. | 244.3 mm |
| Height The measurement of the product from head to foot or from base to top. | 43.9 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.5 kg |
| SKU | 738116 |
| MPN | USS-MR16-POE-04TB |
| Brand | FLIR |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
