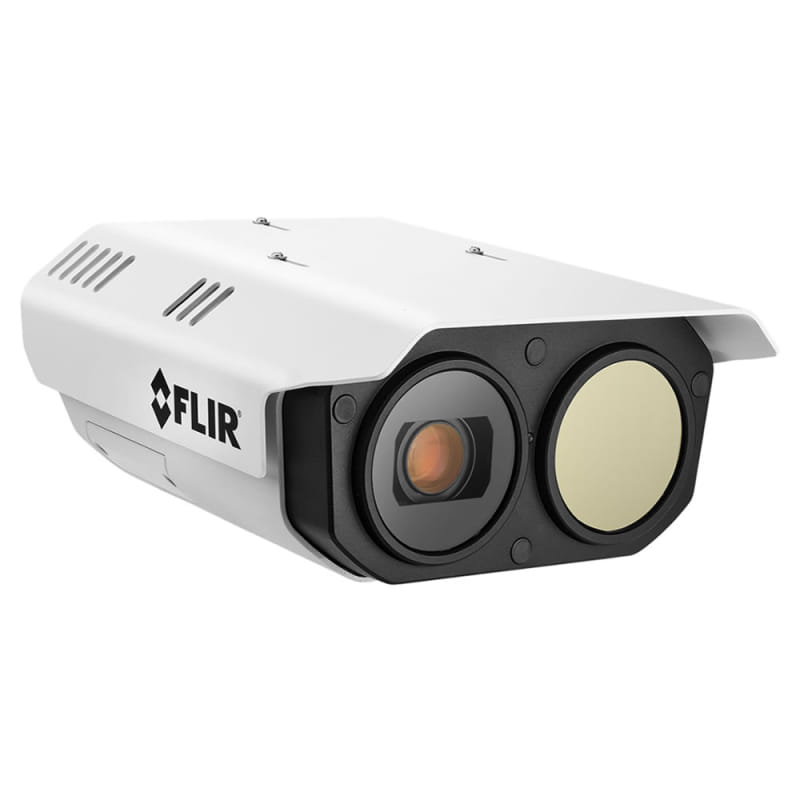

FLIR Camera Triton FH-644 ID Thermal 44/FOV

Performance
Type Characteristics of the device.	CCTV security camera
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Outdoor
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wired
Thermal module
Thermal sensitivity (NETD)	30 mK
Certification	FCC Part 15 (Subpart B, class A), CE Marked IEC 62368 RoHS, WEEE

Design
Form factor The shape or design of the product.	Bullet
Mounting type Type of mounting e.g. wall mounting.	Wall
Product colour The colour e.g. red, blue, green, black, white.	Black, White
International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".	IP66, IP67

Camera
Vertical field of view (thermal module)	44°
Horizontal field of view (thermal module)	36°
Vertical field of view (optical module)	63°
Horizontal field of view (optical module)	35°
Pixel pitch (thermal module)	13.5 µm

Image sensor
Effective sensor resolution (thermal module)	640 x 512 pixels

Lens system
Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′).	3.6 - 10 mm
Maximum aperture number	1.5
Minimum aperture number The minimum size of the hole through which light enters a camera.	2.8
Fixed focal length	9 mm
Aperture number (thermal module)	1

Night vision
Night vision Night vision is technology which allows you to see in low light conditions.

Video
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	3840 x 2160 pixels
Video compression formats	H.264, H.265
Supported video modes The video modes that can be displayed by the device.	2160p
Thermal frame rate (NTSC)	30 Hz
Thermal frame rate (PAL)	25/8.3 Hz
Analog signal format system The supported protocols for exchanging analog signals.	NTSC, PAL
Video streaming
Privacy masking

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type	Gigabit Ethernet
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	IPV4, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X, ONVIF
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.

Storage
Built-in HDD The product has a hard drive built into it.
Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards.
Compatible memory cards Types of memory cards which can be used with this product.	SD

Security
Intelligent Video Surveillance (IVS) system features	People counting, Vehicle detection

Power
Power source type What the power source is.	DC
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	15 W
DC output voltage	12

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-40 - 70 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-50 - 85 °C
Operating relative humidity (H-H)	0 - 95%

Weight & dimensions
Width The measurement or extent of something from side to side.	233 mm
Height The measurement of the product from head to foot or from base to top.	124 mm
Length The measurement or extent of something from end to end.	314 mm

Packaging content
Number of cameras The quantity of cameras that product can support.	1
