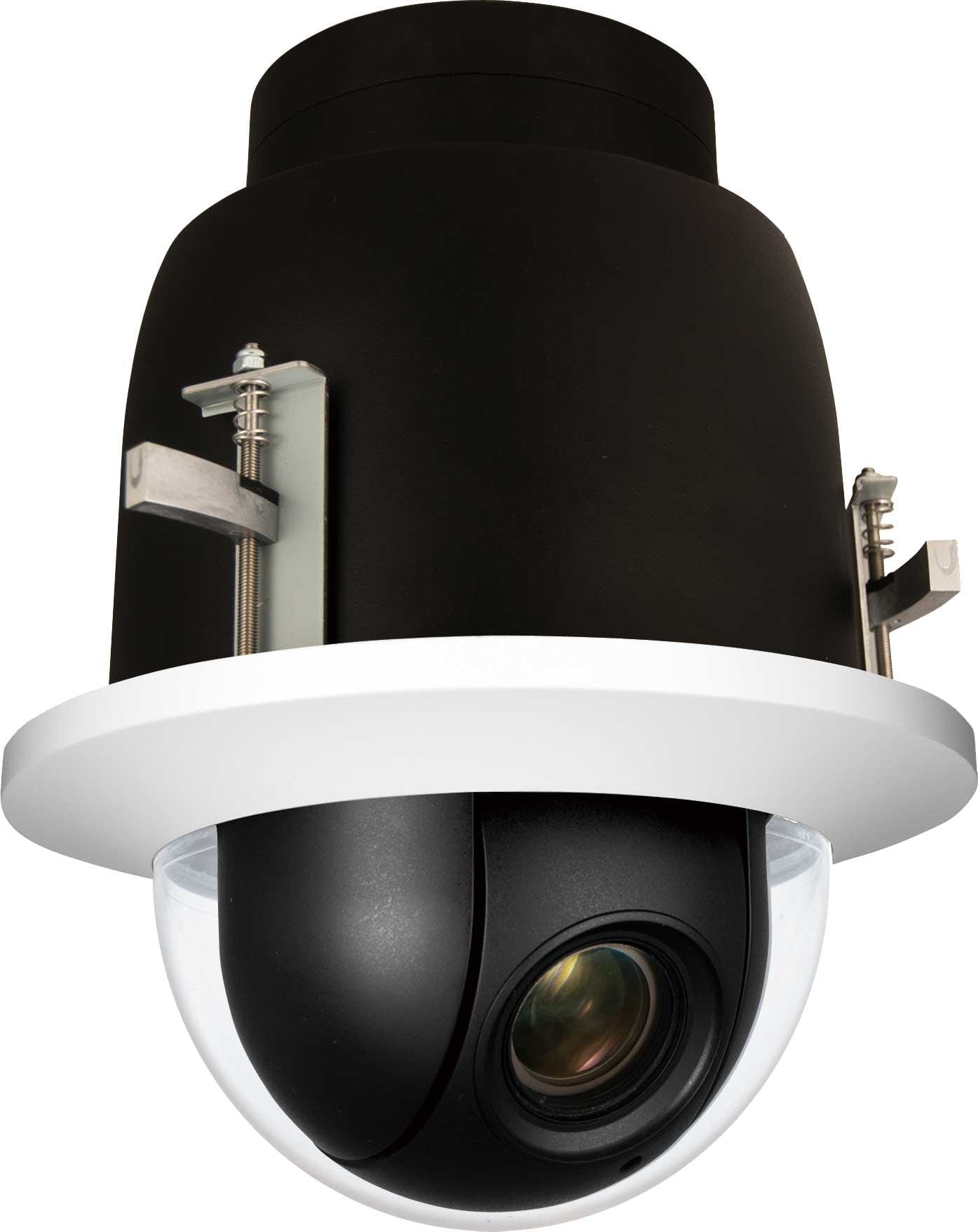

Flir Quasar 1080p FHD Dome PTZ Indoor Security Camera

Performance
Type Characteristics of the device.	IP security camera
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Indoor
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wired
PTZ control
Wide Dynamic Range (WDR)
Day/night mode
Alarm input/output
Certification	CE marked, EN 50130-4, EN61000-6-4 (Class A), RoHS UL, FCC Part 15 (subpart B, class A)

Design
Form factor The shape or design of the product.	Dome
Mounting type Type of mounting e.g. wall mounting.	Ceiling
Product colour The colour e.g. red, blue, green, black, white.	Black, White
IK code	IK10

Camera
Camera pan control
Camera tilt control
Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.	0.01 lx
Tilt angle range	-10 - 190°
Tilt manual speed	0.1 - 60 °/sec
Pan range	0 - 360°
Pan manual speed	0.1 - 90 °/sec
White balance Technique in photography and image processing, which involves a global adjustment of the intensities of the colors (typically red, green, and blue primary colors). An important goal of this adjustment is to render specific colors – particularly neutral colors including white – correctly.	AWC, Auto, Indoor, Manual, Outdoor

Image sensor
Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.	25.4 / 2.8 mm (1 / 2.8")
Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television).
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	CMOS

Lens system
Zoom capability The amount that the camera lens can zoom.
Optical zoom Indicates the optical zoom capacity, which is the number of times that the picture can be enlarged with the optics of the camera.	30x
Digital zoom Indicates the digital zoom capacity, the number of times that the picture is enlarged thanks to digital technology.	10x
Auto focus Device focusing a camera or other piece of equipment automatically.
Focus	Motorized/Manual
Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′).	4.3 - 129 mm

Video
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	1920 x 1080 pixels
Video compression formats	H.264, H.265, M-JPEG
Frame rate	60 fps
Analog signal format system The supported protocols for exchanging analog signals.	NTSC, PAL
Noise reduction
Noise reduction technology	3D noise reduction
Bit rate control	Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Back Light Compensation (BLC)

Audio
Signal-to-Noise Ratio (SNR) This is the ratio of signal intensity to noise intensity.	50 dB

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type	Fast Ethernet
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF S/G, ARP, IEEE 802.1X

Storage
Built-in HDD The product has a hard drive built into it.
Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards.
Compatible memory cards Types of memory cards which can be used with this product.	MicroSDXC
Maximum memory card size The maximum size of memory card that can be used with this device.	128 GB

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1

Security
Video motion detection

Management features
Web browser

Power
Power source type What the power source is.	PoE
Power consumption (max) The maximum amount of power used by the device.	25.4 W

Operational conditions
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions
Height The measurement of the product from head to foot or from base to top.	263.6 mm
Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body.	21.2 cm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	2.6 kg

Packaging content
Number of cameras The quantity of cameras that product can support.	1
