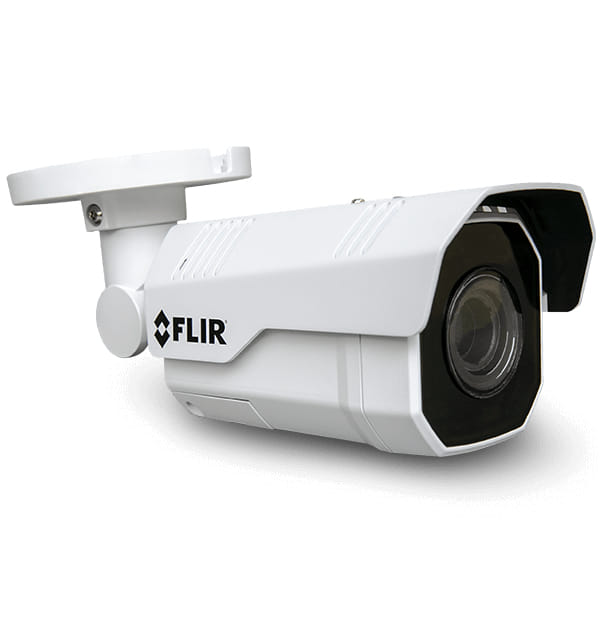

FLIR Quasar , IP security camera, Indoor & outdoor, Wired, CE marked, EN61000 6 3 & EN50130 4, RoHS, RCM, WEEE UL, FCC Part 15 (subpart B, class A), Ceiling/Wall/Pole, White
FLIR designed the Quasar Premium Bullet for vigilant situational awareness in the most demanding environments and for capturing critical evidential and forensic video. Available in 4MP QHD or 4K UHD, Quasar Premium Bullet cameras deliver superior image quality and IR illumination for exceptional performance. They re ideal for critical infrastructure sites, remote facilities, or any large areas requiring close monitoring. Quasar premium cameras are fully NDAA compliant, come equipped with high end cybersecurity safeguards, and use low bandwidth. Compatibility with the FLIR eco system of accessories as well as the ability to operate more cameras on the same network both contribute to a lower total cost of ownership. Seamless integration with a wide range of video management systems, including United VMS provides an open, true end to end solution.
BUILT FOR HARSH ENVIRONMENTS
Rugged design, greater operational efficiencies, and fast setup
VERSATILE, INTUITIVE, SECURE
Install and set up the camera with United VMS within minutes and minimize implementation costs
SUPERIOR IMAGE QUALITY
Optimal resolution and adaptive streaming during surveillance and forensic reporting
BUILT FOR HARSH ENVIRONMENTS
Rugged design, greater operational efficiencies, and fast setup
VERSATILE, INTUITIVE, SECURE
Install and set up the camera with United VMS within minutes and minimize implementation costs
SUPERIOR IMAGE QUALITY
Optimal resolution and adaptive streaming during surveillance and forensic reporting
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor & outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Wide Dynamic Range (WDR) |
 |
| Day/night mode |
|
| Certification | CE marked, EN61000-6-3 & EN50130-4, RoHS, RCM, WEEE UL, FCC Part 15 (subpart B, class A) |
| Design | |
| Form factor The shape or design of the product. | Bullet |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling/Wall/Pole |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP67 |
| IK code | IK10 |
| Camera | |
| Angle of rotation | 360° |
| Tilt angle range | 90 - -90° |
| Pan range | 0 - 360° |
| White balance Technique in photography and image processing, which involves a global adjustment of the intensities of the colors (typically red, green, and blue primary colors). An important goal of this adjustment is to render specific colors – particularly neutral colors including white – correctly. | ATW, Auto, Manual, One push |
| Camera shutter type Indicates if the camera shutter is mechanical or electronic. | Electronic |
| Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure. | 1/2 - 1/32000 s |
| Image sensor | |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 1.8 mm (1 / 1.8") |
| Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television). |
|
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Detect distance | 40 m |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Video compression formats | H.264, H.265, M-JPEG |
| Frame rate | 30 fps |
| Analog signal format system The supported protocols for exchanging analog signals. | NTSC, PAL |
| Noise reduction |
|
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Gain control type | Auto |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Audio | |
| Signal-to-Noise Ratio (SNR) This is the ratio of signal intensity to noise intensity. | 50 dB |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6, HTTP, HTTPS, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X, FTP, RTCP, PPPoE, SMTP, SNMP, QoS, TLS, LDAP, ONVIF Profile G / T / S |
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
 |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), MicroSDXC |
| Maximum memory card size The maximum size of memory card that can be used with this device. | 512 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Security | |
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| Video motion detection |
|
| IP address filtering |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | HTTPS |
| HTTPS encryption |
|
| Management features | |
| Web browser |
|
| Power | |
| Power source type What the power source is. | AC, DC, PoE |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 18 W |
| Power consumption (Power over Ethernet (PoE)) | 17 W |
| DC output voltage | 12 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Depth The distance from the front to the back of something. | 92.8 mm |
| Height The measurement of the product from head to foot or from base to top. | 92.5 mm |
| Length The measurement or extent of something from end to end. | 258.4 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.09 kg |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| SKU | 724556 |
| MPN | CB-6408-11-I |
| Brand | FLIR |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
