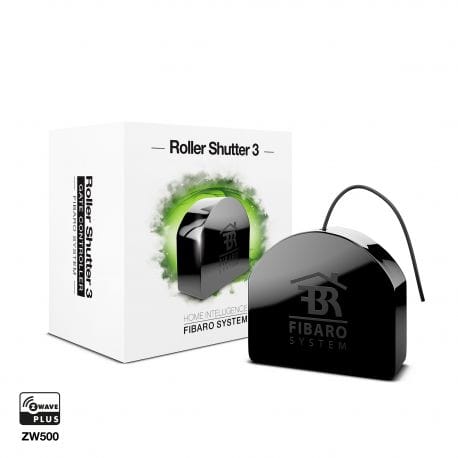

THE Z-WAVE FGR-223 MICROMODULE FROM FIBARO - FOR CONTROLLING SHUTTERS REMOTELY
Shutters protect your privacy but they can do so much more by enabling significant energy savings to be made. They can be used in winter to keep heat in and in summer to screen out the suns rays and keep your home as cool as possible.
The new FGR-223 micromodule controls shutter venetian blind and even garage door engines. Thanks to the wireless Z-Wave protocol it turns a standard installation into an intelligent one.
The module is placed behind an existing switch. The motor can be controlled both locally with the switch and remotely using a Z-Wave emitter or a domotic box.
The micromodule is also capable of transmitting the instantaneous W and cumulative KWh electrical consumption of the item that it is connected to.
It has larger terminals that can be connected to two 1.5mm² cables. Its rounded form means that it meets the safety standards of the most exacting countries.
Each Z-Wave module functions with the other modules as a wireless repeater to provide complete coverage across your home.
Note This module requires neutral wiring to work.
FEATURES
FEATURES
- Control your roller shutters remotely
- Compatible with BSO and venitian blinds with positioning of the slats
- Installation behind an existing switch
- Up/down function and positioning
- Compatible with mechanical or electronical stop motors
- Larger terminals to make wiring easier
- Rounded shape that meets the strictest standards
- Instantaneous and cumulative energy meter
- Fibaro Home Center 2 box wireless update
- Z-Wave network coverage test function
- Small discreet and aesthetically pleasing
- Easy to use and install
| Features | |
| Product type The sub-category of the product. | Shutter control |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Maximum indoor range The maximum distance to which the signals are transmitted, when the device is used indoors. | 40 m |
| Maximum outdoor range The maximum distance to which the signals are transmitted, when the device is used outdoors. | 50 m |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Certification | RoHS 2011/65/EU RED 2014/53/EU FCC |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 35 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 38.2 mm |
| Depth The distance from the front to the back of something. | 42.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 20.3 mm |
| SKU | 615678 |
| MPN | FGR223 |
| Brand | Fibaro |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
