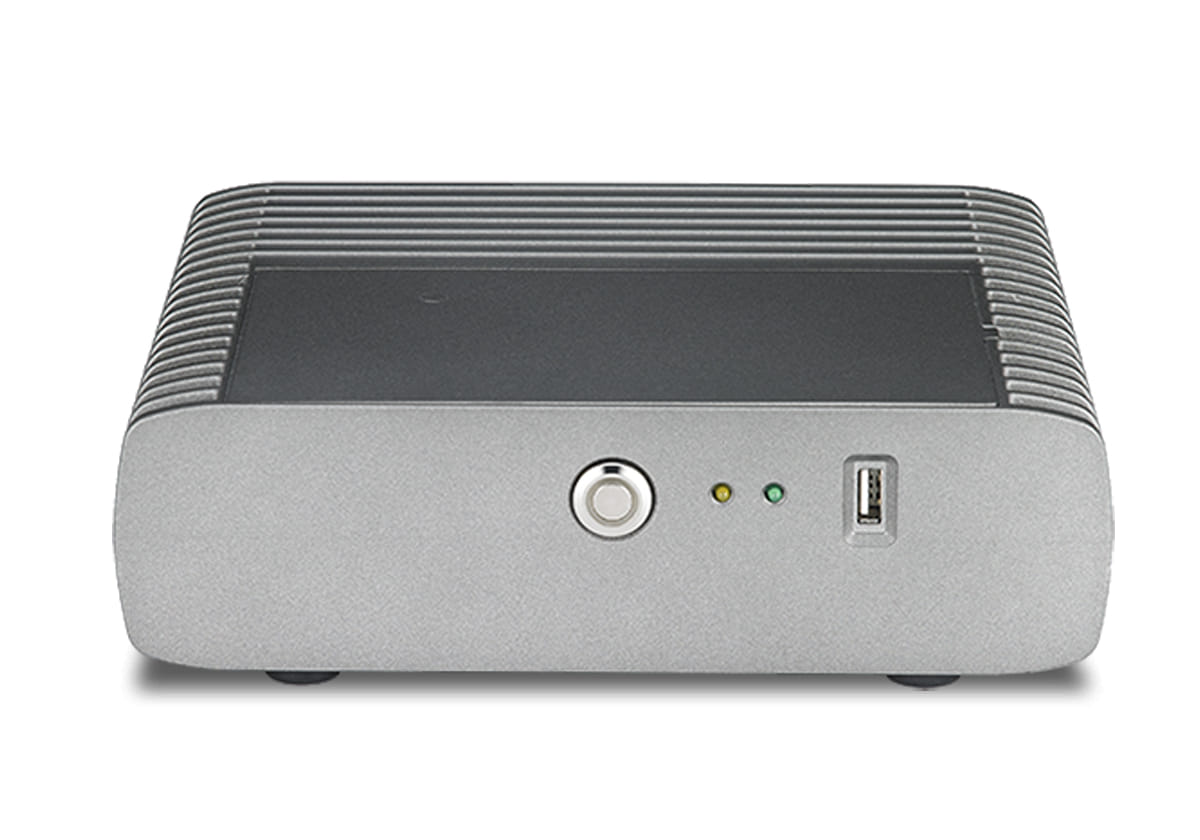

FEC Box PC J1900 8GB RAM, 128GB Storage Type-C, Windows 10 IOT V2

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel Celeron J
Processor model The model number for the processor in a computer.	J1900
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	4
Processor threads	4
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	2.42 GHz
Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.	2 GHz
Processor cache	2 MB
Processor cache type	L2
Number of processors installed Number of processors in the product.	1

Memory
Internal memory A computer's memory which is directly accessible to the CPU.	8 GB
Maximum internal memory The maximum internal memory which is available in the product.	8 GB
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR3-SDRAM
Memory slots Number and type of memory expansion slots, including connector and memory module descriptions.	1x SO-DIMM

Storage
Total storage capacity The total amount of data that can be stored on the device.	128 GB
Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).	SSD
Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.
Number of storage drives installed Amount of storage drives built into the device.	1
Total SSDs capacity	128 GB
Number of SSDs installed	1
SSD capacity The Solid State Drive's data storage capacity.	128 GB

Graphics
Discrete graphics card
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel® HD Graphics

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	1000 Mbit/s
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Ports & interfaces
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.	1
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
Modem (RJ-11) ports	1

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	Mini PC
Product colour The colour e.g. red, blue, green, black, white.	Silver

Performance
Product type The sub-category of the product.	Mini PC

Power
Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.	150 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 60 °C

Certificates
Certification	FCC / CE Class B

Weight & dimensions
Width The measurement or extent of something from side to side.	230.2 mm
Depth The distance from the front to the back of something.	190 mm
Height The measurement of the product from head to foot or from base to top.	65 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	2.4 kg
Package width The distance from one side of the packaging to the other.	400 mm
Package depth The distance from the front to the back of the packaging.	245 mm
Package height The distance from the top to the bottom of the packaging.	130 mm
Package weight Weight of the packaged product.	3.5 kg

Packaging content
Display included This product includes a display.

Other features
COM ports quantity	3
