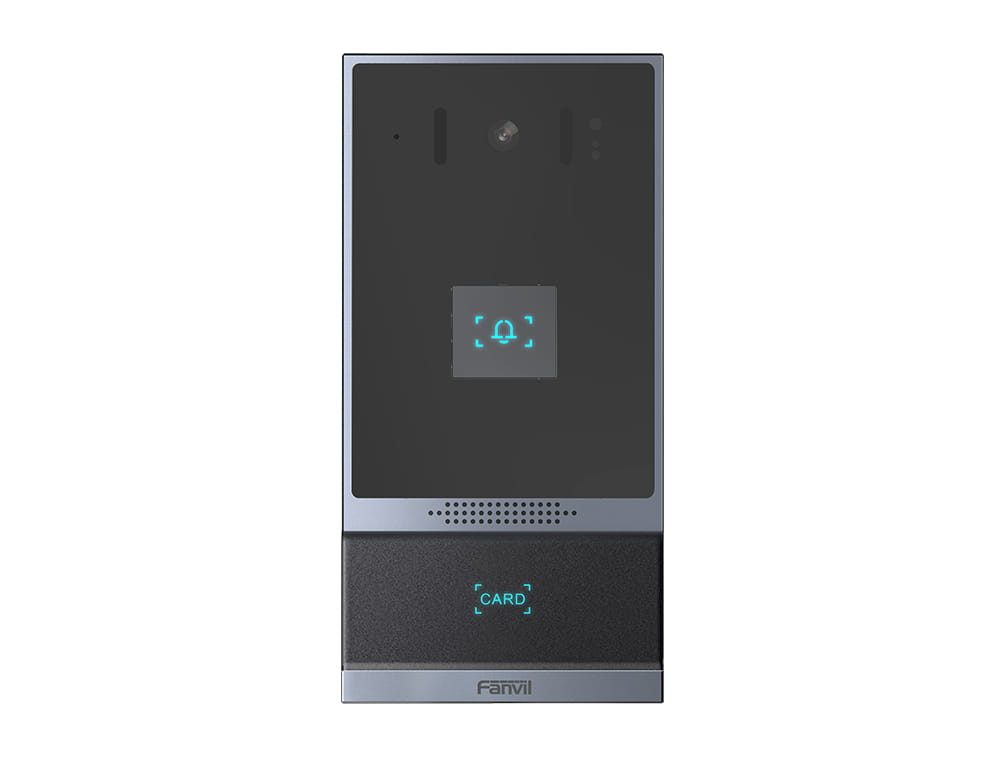

Fanvil i62, Aluminium, IP67, IK07, Aluminium, Buttons, Outdoor
Based on SIP and ONVIF protocols, i62 is a video door phone that integrates powerful functionalities of access control, intercom, and security protection. Featuring an aluminum alloy design and single speed dial button, i62 delivers a high quality elegant appearance. With high protection level IP66 and IK07, it is waterproof, dustproof and anti collision in most outdoor environments. i62 allows users to make audio/video calls via a speed dial button and a 2 Mega pixel camera and achieve access control by different modes. With rich input and output interfaces, i62 is easy to link with other security devices and customize into various solutions in apartments, commercial buildings, communities and industrial parks.
| Technical details | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Colour The main colour of the product. |
 |
| Speakerphone Device has a microphone and loudspeaker provided separately from those in the handset. This device allows multiple persons to participate in a conversation. The loudspeaker broadcasts the voice or voices of those on the other end of the telephone line, while the microphone captures all voices of those using the speakerphone. |
|
| Memory card slot |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash) |
| Maximum memory card size The maximum size of memory card that can be used with this device. | 128 GB |
| Voice codecs | G.722 |
| Motion detection function |
|
| Number of buttons The quantity of buttons, which are small device on a piece of electrical or electronic equipment which are pressed to operate it. | 1 buttons |
| Backlight buttons |
|
| RFID reader |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Aluminium |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP67 |
| IK code | IK07 |
| Housing material What the casing of the product is made of. | Aluminium |
| Control type The way in which the device is controlled. | Buttons |
| Proper use The intended application of the product. | Outdoor |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| Syslog |
|
| Camera | |
| Megapixel (approx.) The number (in millions) of light-sensitive picture elements known as pixels actually used by the camera's image sensor (CCD) to record light, and which are reflected to the final number of recorded pixels stored on the memory card. | 2 MP |
| Maximum image resolution Resolution is the amount of detail held by an image. The higher the resolution, the better (sharper) the image. The maximum image resolution produces the best image. | 1920 x 1080 pixels |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 30.5 / 9 mm (1.2 / 9") |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 120° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 60° |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| LED type | IR |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 88 mm |
| Depth The distance from the front to the back of something. | 36.1 mm |
| Height The measurement of the product from head to foot or from base to top. | 177.4 mm |
| Packaging data | |
| Outdoor unit included |
|
| SKU | 715220 |
| MPN | I62 |
| Brand | Fanvil |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
