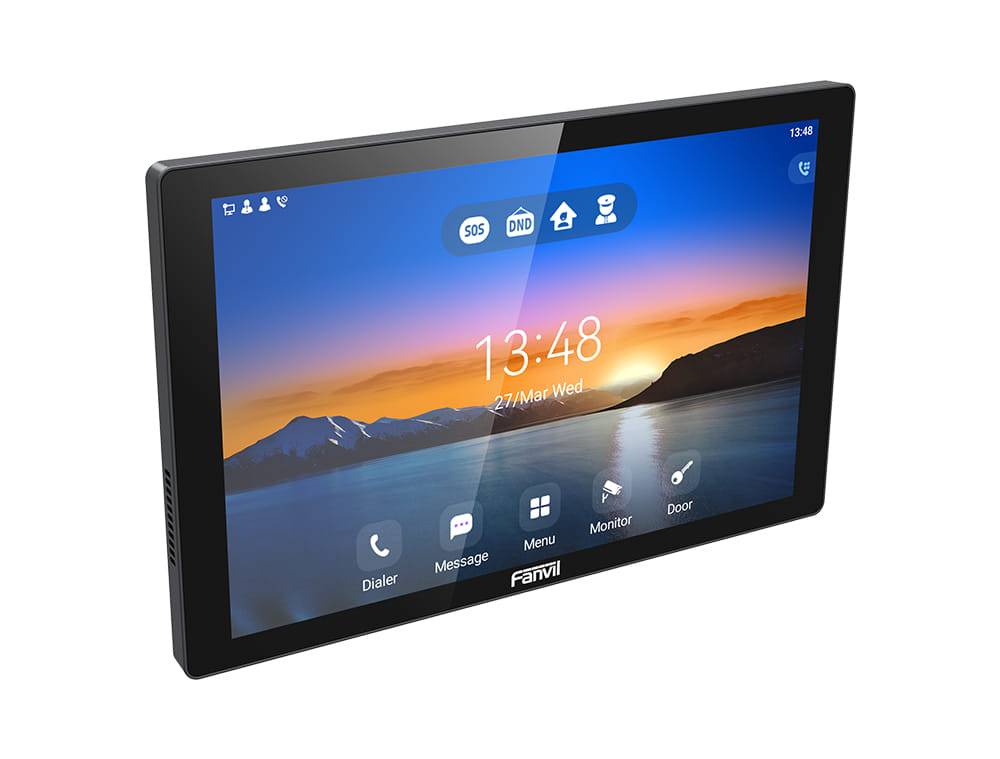

Fanvil i507W, 25,6 cm (10.1"), IPS, 1280 x 800 pixels, Capacitive, 1920 x 1080 pixels, 720p, 1080p
The i507W is a 10.1-inch touch screen indoor station, featuring a stylish design and intuitive UI. Running on Android 9.0, it seamlessly integrates with third-party apps. With a variety of expansion interfaces, it easily connects with security devices for features like two-way intercom, remote door opening, and alarms. Perfect for residential communities, villas, office buildings, and more, it delivers a safe and convenient living experience.
| Technical details | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired & Wireless |
| Colour The main colour of the product. |
 |
| Speakerphone Device has a microphone and loudspeaker provided separately from those in the handset. This device allows multiple persons to participate in a conversation. The loudspeaker broadcasts the voice or voices of those on the other end of the telephone line, while the microphone captures all voices of those using the speakerphone. |
|
| Number of displays supported The number of displays that can be used with this product. | 1 |
| Video codecs | H.264, H.265 |
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 25.6 cm (10.1") |
| Display technology The technology used in the display e.g. plasma, LED. | IPS |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1280 x 800 pixels |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
|
| Touchscreen type There are a variety of touchscreen technologies that have different methods of sensing touch, including resistive and capacitive. | Capacitive |
| Camera | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 1920 x 1080 pixels |
| Supported video modes The video modes that can be displayed by the device. | 720p, 1080p |
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Speaker power | 2 W |
| Voice codecs | G.722, OPUS |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Indoor unit housing material | ABS |
| Proper use The intended application of the product. | Indoor |
| Indoor unit | |
| RS-485 ports | 1 |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1x |
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Android |
| Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android. | 9 |
| Power | |
| Indoor unit power type | DC/PoE |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 7.18 W |
| Power consumption (max) The maximum amount of power used by the device. | 8.64 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 157 mm |
| Depth The distance from the front to the back of something. | 248 mm |
| Height The measurement of the product from head to foot or from base to top. | 25.6 mm |
| Packaging data | |
| Indoor unit included |
|
| Outdoor unit included |
 |
| SKU | 821071 |
| MPN | I507W |
| Brand | Fanvil |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.fanvil.com/ |
