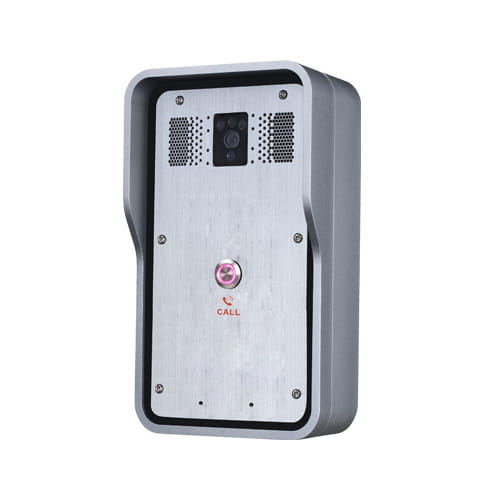

i18S, 1/3" CMOS, 1280x960, H.264, SIP 2.0, PoE, RJ 45, IP65, IK10, 223x130x74 mm
The design of i18S IP Video Intercom are based on experience and knowledge of Fanvil IP phone development.i18S are using standard IP/RTP/RTSP protocol for voice transmission and enjoy the advantages of full range of compatibility. i18S have a variety of enterprise level features and compatible with lots of major platforms, such as 3CX,Asterisk, Broadsoft, Elastix, etc.
The i18S IP Video Intercom is designed for operation in indoor conditions. The robust mechanical construction offers protective coverage rating against dust and water (IP65).
The i18S is economical devices with triple function(All in 1) Access Control, Intercom and Broadcasting
The i18S IP Video Intercom is designed for operation in indoor conditions. The robust mechanical construction offers protective coverage rating against dust and water (IP65).
The i18S is economical devices with triple function(All in 1) Access Control, Intercom and Broadcasting
| Technical details | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Colour The main colour of the product. |
 |
| Speakerphone Device has a microphone and loudspeaker provided separately from those in the handset. This device allows multiple persons to participate in a conversation. The loudspeaker broadcasts the voice or voices of those on the other end of the telephone line, while the microphone captures all voices of those using the speakerphone. |
|
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Number of speakers The quantity of speakers included in/with the product. | 1 |
| Speaker power | 3 W |
| Voice codecs | G.711a, G.711u, G.722, G.723.1, G.726-32, G.729ab |
| Streaming capability |
|
| Echo cancellation |
|
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| Built-in microphone Microphone that is found inside the product. |
|
| Video codecs | H.264 |
| Relay inputs | 1 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP65 |
| IK code | IK10 |
| Housing material What the casing of the product is made of. | Aluminium |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Cabling technology Type of cable technology performance. | 10/100Base-T(X) |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | RTSP, SNTP, VPN L2PT/openVPN, SRTP, HTTP/HTTPS, DHCP, PPPoE, STUN |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af |
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| Management protocols | FTP / TFTP / HTTP / HTTPS / DHCP / TR069 / SIP PNP |
| Camera | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 1280 x 960 pixels |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 3 mm (1 / 3") |
| Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality. | 0.001 lx |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 115° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 87° |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 223 mm |
| Depth The distance from the front to the back of something. | 74 mm |
| Height The measurement of the product from head to foot or from base to top. | 130 mm |
| Packaging data | |
| Outdoor unit included |
|
| Package width The distance from one side of the packaging to the other. | 310 mm |
| Package depth The distance from the front to the back of the packaging. | 115 mm |
| Package height The distance from the top to the bottom of the packaging. | 175 mm |
| Package weight Weight of the packaged product. | 1.8 kg |
| Logistics data | |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 370 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 370 mm |
| SKU | 711764 |
| MPN | I18S |
| Brand | Fanvil |
| Product Condition | Brand New/Unused |
| Product Use | General |
