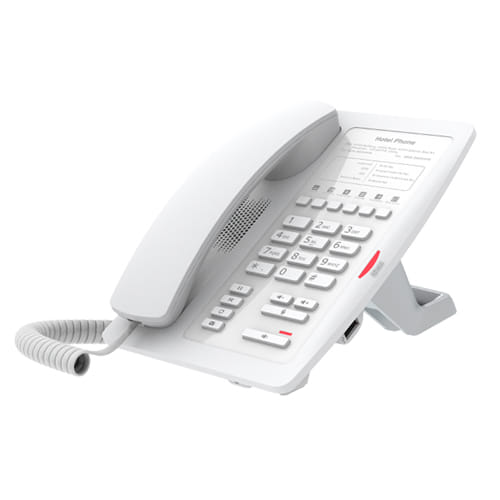

Fanvil H3 Hotel IP Phone
Skip to the beginning of the images gallery

Fanvil H3 Hotel IP Phone

Item No:
485438
MPN:
H3-W
$109.00
Payment options

This product is currently not available!

Shipping Information
  • Unavailable for shipping
  • This product is not currently available for purchase
Store Availability
  • Unavailable at Bankstown Store
  • Unavailable at Castle Hill Store
  • Unavailable at Northmead Store
Product Related Products Related Summary Summary Details Details Specifications Specs Reviews Reviews
Fanvil H3 Hotel IP Phone - No Display, 1 Line, 6 x Programmable Buttons, Dual 10/100 NIC - White
The Fanvil H3 is an entry-level hotel IP phone that is ideal to use for hotels, hospitals and resorts. It provides a set features and functionalities of an IP phone such as 6 programmable soft keys, HD voice, 802.3af PoE support, and 1 SIP Line. In addition, the H3 also have call transfer, 1 USB charging port, indicator light, and support for multi languages.

FEATURES

HD Voice
6 Soft keys programmable
USB (1A) Port for Charging
Support SIP2.0 (RFC3261) and correlative RFCs
SIP support 1 SIP servers, and backup SIP proxy servers
Supports SIP UDP / TCP/ TLS
SIP support SIP domain, SIP authentication (none, basic, MD5) , DNS name of server, Peer to Peer / IP Call
Multi languages displayed(web)

WHAT'S INCLUDED

Telephone Base
Handpiece
Curly Cord
Patch Lead
Base Stand
User Guide

This phone can be Powered over Ethernet (PoE), thus POWER SUPPLY IS NOT INCLUDED unless stated.

IMPORTANT

Compatible telephone system is required to operate. We use and recommend 3CX Phone System.
Speak to our dedicated Breeze Connect IP Team on 08 7078 5300 or ask your dedicated account manager today!
Design
Product type The sub-category of the product. IP Phone
Handset type Wired handset
Product colour The colour e.g. red, blue, green, black, white. White
Performance
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. 16 MB
Flash memory 8 MB
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. VxWorks
Dual-Tone Multi-Frequency (DTMF) modes In-band, Out-of band, SIP info
Phone features
Answering machine The product contains an answering machine where you can leave messages if the phone is unanswered/engaged (busy).
Call log entries 300
Call waiting
Speed dialling
Call hold
Redialing
Do not disturb function
Anonymous call
Anonymous call rejection
Call transfer
Message-waiting indicator (MWI)
Management features
Number of programmable keys 6
Firmware upgradeable
Display
Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
Camera
Front camera Camera at the front of the product.
Audio
Voice codecs G.711a, G.711u, G.722, G.723.1, G.726, G.729ab
Noise reduction
Echo cancellation
Voice activity detection
Comfort noise generation (CNG)
Packet loss concealment (PLC)
Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface. Fast Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. 10,100 Mbit/s
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. DHCP, PPPoE, FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
Quality of Service (QoS) support
Syslog
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. IEEE 802.3af
Auto diagnostic
Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. 2
RJ-9 ports quantity 1
DC-in jack The socket/plug where the DC electricity supply connects to the device.
Certificates
Certification RoHS, CE, FC, CCC
Power
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
AC adapter input voltage 100 - 240 V
AC adapter output voltage 5 V
AC adapter output current 1 A
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. 2.8 W
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 40 °C
Operating relative humidity (H-H) 10 - 65%
Weight & dimensions
Width The measurement or extent of something from side to side. 170 mm
Depth The distance from the front to the back of something. 213 mm
Height The measurement of the product from head to foot or from base to top. 130 mm
Packaging content
Number of handles included The amount of handles, which are the part by which a thing is held, carried or controlled. 1 pc(s)
More Information
SKU 485438
MPN H3-W
Brand Fanvil
Product Condition Brand New/Unused
Product Use General
Warranty Period 2 Years Warranty
Warranty Contact https://www.fanvil.com/
Stock Availability Available for Shipping
