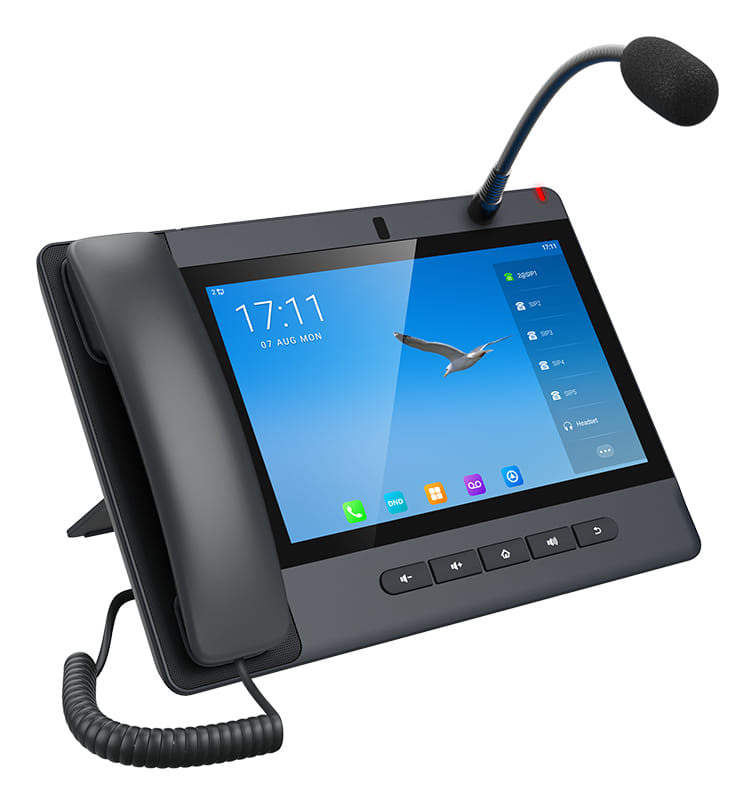

Fanvil A320i Android-based IP Console Phone

Design
Product type The sub-category of the product.	IP Phone
Handset type	Wired handset
Product colour The colour e.g. red, blue, green, black, white.	Black
Mounting What size the mounting head of the product is, to couple it with a camera.	Desk

Performance
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Android
Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android.	9.0
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info

Phone features
Lines quantity The number of lines in the phone.	20 lines
Answering machine The product contains an answering machine where you can leave messages if the phone is unanswered/engaged (busy).
Call log entries	1000
Hot desking
Call waiting
Speed dialling
Intercom
Call hold
Caller ID The name and/or number of the caller comes up on screen when they ring the phone. You also send your caller ID when you call someone else unless you choose to deactivate it.
Phonebook capacity The number of names/numbers that can be stored in the phonebook of a phone.	2000 entries
Call forwarding
Conference call
Redialing
Do not disturb function
Call park
Call pick up
Anonymous call
Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.	2.4, 5 GHz
Call transfer
Message-waiting indicator (MWI)

Management features
Integrated voicemail
Volume control	Buttons
Meeting features	Calendar

Display
Display diagonal Size of the display for this product, measured diagonally, usually in inches.	25.6 cm (10.1")
Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.	1280 x 800 pixels
Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.

Audio
Speakerphone Device has a microphone and loudspeaker provided separately from those in the handset. This device allows multiple persons to participate in a conversation. The loudspeaker broadcasts the voice or voices of those on the other end of the telephone line, while the microphone captures all voices of those using the speakerphone.
Number of microphones	1
Microphone mute
Microphone frequency The range of frequencies (low to high sounds) that the microphone can pick up (detect).	20 - 20000 Hz
Voice codecs	G.711a, G.711u, G.722, G.729ab, VAD, iLBC
Noise reduction
Echo cancellation
Adaptive jitter buffers
Packet loss concealment (PLC)

Video
Video resolutions The amount of detail that can be seen in the video image.	1280 x 720,1920 x 1080 pixels
Video codecs	H.264 /H.265
Video capturing speed	30 fps

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Gigabit Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	5.0
Quality of Service (QoS) support
DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.

Ports & interfaces
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	2
RJ-9 ports quantity	2
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Power
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
AC adapter output voltage	5 V
AC adapter output current	2 A
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	7.75 W
Power consumption (Power over Ethernet (PoE))	9.77 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 45 °C
Operating relative humidity (H-H)	10 - 95%

Weight & dimensions
Width The measurement or extent of something from side to side.	309 mm
Depth The distance from the front to the back of something.	214 mm
Height The measurement of the product from head to foot or from base to top.	187 mm

Packaging content
Base station
Handset
Number of handles included The amount of handles, which are the part by which a thing is held, carried or controlled.	1 pc(s)
