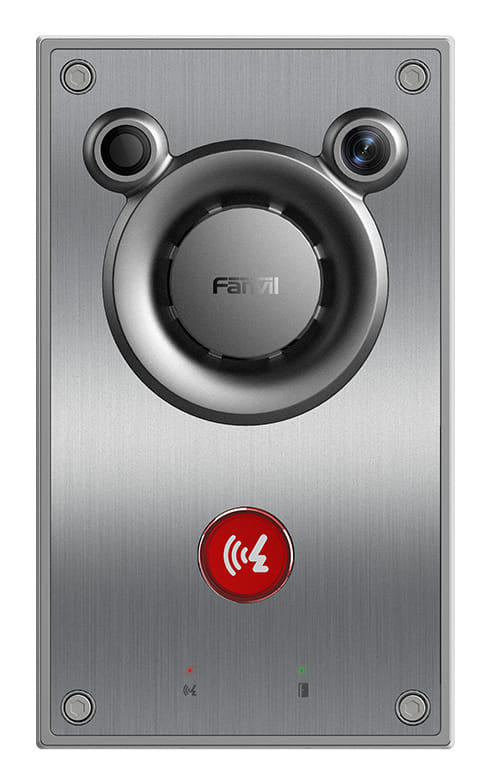

Fanvil A12V 4MP Starlight Camera

Technical details
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wired
Wall mountable The product can be mounted on (attached to ) a wall.

Display
Video formats supported The type of video formats that can be used by this device.	H.264

Camera
Megapixel (approx.) The number (in millions) of light-sensitive picture elements known as pixels actually used by the camera's image sensor (CCD) to record light, and which are reflected to the final number of recorded pixels stored on the memory card.	4 MP
Supported video modes The video modes that can be displayed by the device.	720p, 1080p
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	CMOS
Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.	25.4 / 2.9 mm (1 / 2.9")
Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance.	103°
Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance.	54.8°
Viewing angle, diagonal	122°

Audio
Voice codecs	G.711a

Design
Product colour The colour e.g. red, blue, green, black, white.	Silver
International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".	IP66
IK code	IK10

Storage
Memory card slot

Indoor unit
RS-485 ports	1

Network
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100 Mbit/s
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	FTP/TFTP HTTP/HTTPS TR-069SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 PPPoE L2TP OpenVPN SNTP
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.3at

Management features
Web-based management Using a website/web application to manage something.
Syslog

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-40 - 70 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%

Weight & dimensions
Width The measurement or extent of something from side to side.	120 mm
Depth The distance from the front to the back of something.	54.5 mm
Height The measurement of the product from head to foot or from base to top.	205 mm

Packaging data
Outdoor unit included
Camera included This product includes a camera.
Package width The distance from one side of the packaging to the other.	168 mm
Package depth The distance from the front to the back of the packaging.	80 mm
Package height The distance from the top to the bottom of the packaging.	286 mm

Logistics data
Quantity per pack	1 pc(s)
