Please note that this unit has been on display in our retail store. However, each unit has been carefully cleaned, inspected before packing into the original box, we do this to ensure the customer is getting a perfect working order unit in excellent conditions.

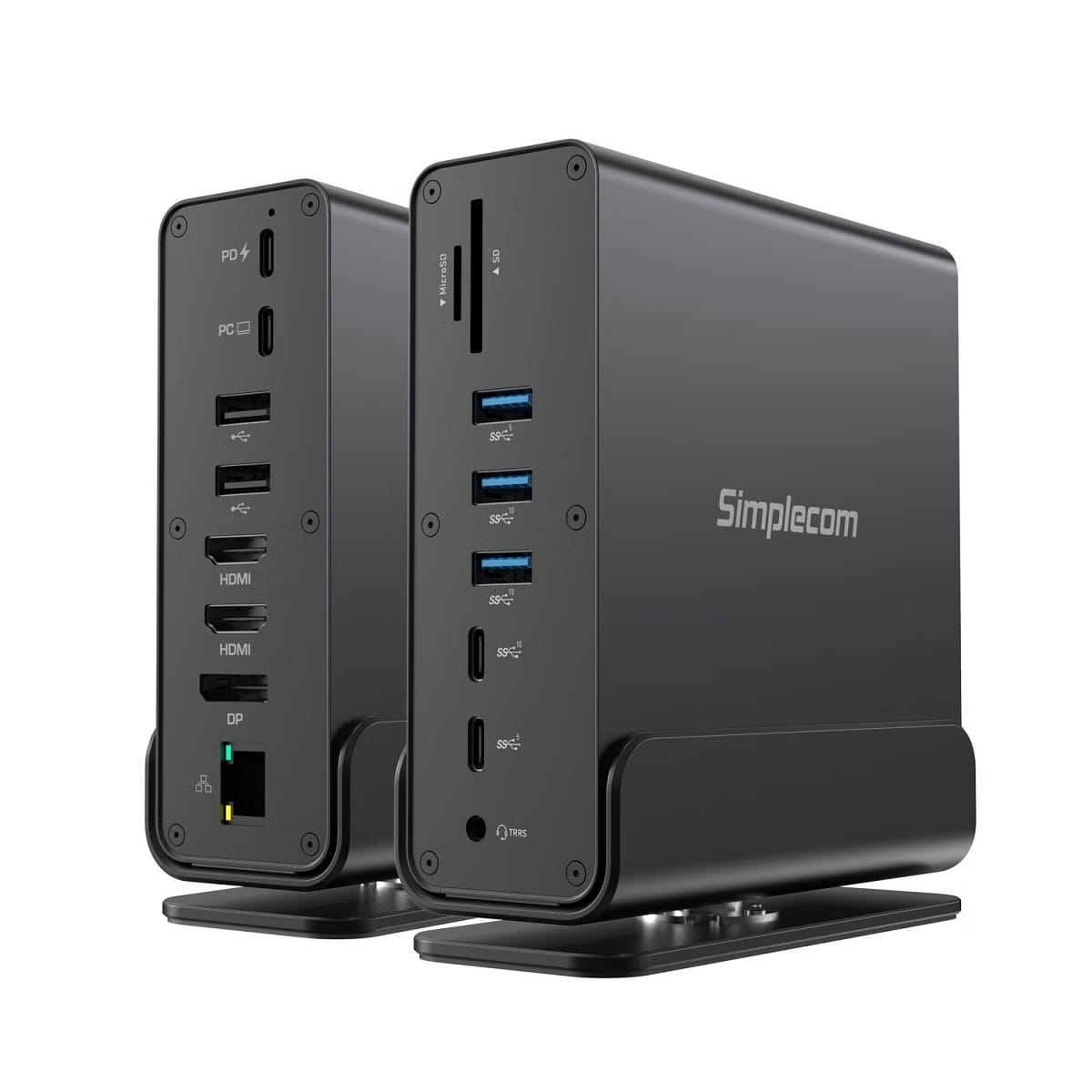

Simplecom CHT815 15 in 1 USB C 4K Triple Display MST Docking Station with Dual HDMI DP
Simplecom CHT815 15 in 1 USB C 4K Triple Display MST Docking Station with Dua
Specifications
Material: Aluminum
Host Interface: USB C Female
USB A Data Ports: 2x USB 480Mbps, 1x USB 5Gbps, 2x USB 10Gbps
USB C Data Ports: 1x USB 5Gbps, 1x USB 10Gbps
Display Ports: 2x HDMI 2.0, 1x DP 1.4
HDMI Resolution: up to 4K@60Hz (3840x2160)
DP Resolution: up to 4K@60Hz (3840x2160)
HDCP Support: HDCP 2.3 compliant, backwards compatible
Network Port: RJ45 Gigabit Ethernet (10/100/1000 Mbps)
Audio Port: 4 Pole TRRS 3.5mm Audio Jack (Stereo&Mic Combo)
Card Reader: SD and MicroSD (SuperSpeed 5Gbps)
PD Charging: 1x USB C Female (for charging only), up to 100W
Operation Temperature: 0 50 DegC
Weight: 350g
Dimension: 12.6cm(13.8cm*) x 12.1cm x 4.2cm (*with vertical stand)
System Requirements
Available USB C port with DP Alt Mode (DisplayPort Alternate Mode) support
Thunderbolt USB C port and USB4 port are recommended
Windows 10 or above for MST and extended screens support
macOS does not support MST technology and will only support one extended mode output
Laptop GPU with DP1.4 supports up to 3x extended screens
Laptop GPU with DP1.2 supports up to 2x extended screens
For 3x extended screens at 4K resolution, DP 1.4 and DSC (Display Stream Compression) are required for laptop GPU
Important Note
Before purchasing, please confirm the USB C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB C ports only work for charging or data transfer, no video output function.
Laptop GPU with DP1.2 supports 2x extended screens only, laptop GPU with DP1.4 supports 3x extended screens.
For more stable connection when using multiple devices, connect a PD power adaptor to the USB C PD port for extra power.
Package Contents
1x 15 in 1 Docking Station
1x USB4 Cable
1x Vertical Stand
1x User Manual
Specifications
Material: Aluminum
Host Interface: USB C Female
USB A Data Ports: 2x USB 480Mbps, 1x USB 5Gbps, 2x USB 10Gbps
USB C Data Ports: 1x USB 5Gbps, 1x USB 10Gbps
Display Ports: 2x HDMI 2.0, 1x DP 1.4
HDMI Resolution: up to 4K@60Hz (3840x2160)
DP Resolution: up to 4K@60Hz (3840x2160)
HDCP Support: HDCP 2.3 compliant, backwards compatible
Network Port: RJ45 Gigabit Ethernet (10/100/1000 Mbps)
Audio Port: 4 Pole TRRS 3.5mm Audio Jack (Stereo&Mic Combo)
Card Reader: SD and MicroSD (SuperSpeed 5Gbps)
PD Charging: 1x USB C Female (for charging only), up to 100W
Operation Temperature: 0 50 DegC
Weight: 350g
Dimension: 12.6cm(13.8cm*) x 12.1cm x 4.2cm (*with vertical stand)
System Requirements
Available USB C port with DP Alt Mode (DisplayPort Alternate Mode) support
Thunderbolt USB C port and USB4 port are recommended
Windows 10 or above for MST and extended screens support
macOS does not support MST technology and will only support one extended mode output
Laptop GPU with DP1.4 supports up to 3x extended screens
Laptop GPU with DP1.2 supports up to 2x extended screens
For 3x extended screens at 4K resolution, DP 1.4 and DSC (Display Stream Compression) are required for laptop GPU
Important Note
Before purchasing, please confirm the USB C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB C ports only work for charging or data transfer, no video output function.
Laptop GPU with DP1.2 supports 2x extended screens only, laptop GPU with DP1.4 supports 3x extended screens.
For more stable connection when using multiple devices, connect a PD power adaptor to the USB C PD port for extra power.
Package Contents
1x 15 in 1 Docking Station
1x USB4 Cable
1x Vertical Stand
1x User Manual
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| USB Power Delivery |
 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| DisplayPort version | 1.4 |
| Microphone in The socket where a microphone is connected to the device. |
 |
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Headphone connectivity How headphones connect to a device e.g. wirelessly or via a cable and connector. | 3.5 mm |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| HDCP version | 2.3 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Performance | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), SD |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Charging function |
|
| Power | |
| Power source type What the power source is. | USB |
| Power connector | USB Type-C |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 126 mm |
| Depth The distance from the front to the back of something. | 42 mm |
| Height The measurement of the product from head to foot or from base to top. | 121 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 350 g |
| SKU | 767447 |
| MPN | CHT815-DEMO |
| Brand | Simplecom |
| Product Condition | Ex-Demo |
| Stock Availability | Available for Shipping, In Stock at Warehouse |
| Product Use | General |
| Warranty Period | 90 Days Warranty |
