<h3><span style="color: #3366ff; font-size: large;">Please note that this unit has been on display in our retail store. However, each unit has been carefully cleaned, inspected before packing into the original box, we do this to ensure the customer is getting a perfect working order unit in excellent conditions. Also, this unit comes with a new product warranty.</span></h3> <hr />

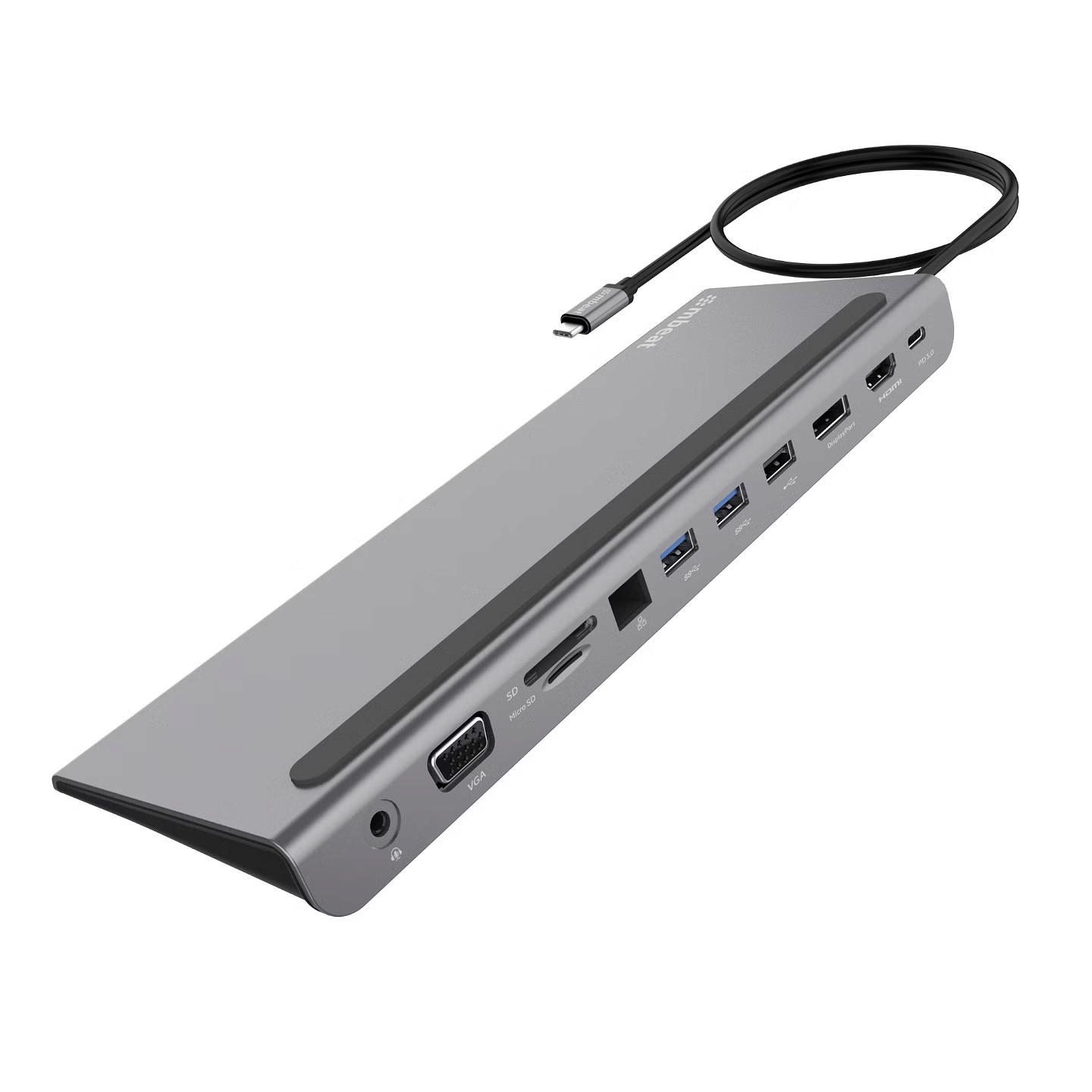

Transform your USB-C laptop into a powerful workstation with the mbeat 11-in-1 Multifunction USB-C Dock. Featuring triple video output, pass-through charging, network transfer speeds and USB 3.0 ports/SD/MicroSD card slots. Enjoy a better work posture and improved heat dissipation with the ergonomic laptop stand design. Ideal for multiple screens, presentations and more.
Powerful Multiport USB-C Dock
11-in-1 USB-C docking station with triple video output, premium aluminium finish, transforming your USB-C laptop into a powerful workstation.
Ergonomic Laptop Stand Design
This docking station sits perfectly under your laptop, promoting heat dissipation, improving work posture and reducing fatigue.
100W PD and Gigabit Ethernet
High specifications to drive your productivity with lightning-fast pass-through charging and network transfer speeds.
Triple Video Displays
Featuring HDMI, Display Port and VGA port for universal video connectivity. Extend/duplicate your USB-C laptop to external HD displays, ideal for multiple screens or presentations.
A Full Array of Ports
Featuring additional USB 3.0 ports and SD/MicroSD card slots; connect keyboard/mouse/HDD and memory cards with simple plug and play.
Interface:
• HDMI® 1.4 × 1: 4K/60Hz
• Display Port™ 1.2 × 1: 4K/60Hz
• VGA × 1: 1920 × 1080P/60Hz
• USB 3.0 × 2: 5Gbps and BC 1.2 Charging
• USB 2.0 × 1: 480Mbps
• USB-C × 1: PD 3.0, 100W (5V/1A~20V/5A)
• LAN × 1: RJ45 Gigabit Ethernet (10/100/1000Mbps)
• Audio × 1: 3.5mm Audio In/Out
• SD 3.0 × 1: 104Mbps
• MicroSD 3.0 × 1: 104Mbps
Display Configuration:
• Dual Display (HDMI® + Display Port™): 4K/30Hz + 1080P/60Hz
• Dual Display (HDMI® + VGA): 4K/30Hz + 1080P/60Hz
• Dual Display (Display Port™ + VGA): 4K/30Hz + 1080P/60Hz
• Triple Display (HDMI® + VGA + Display Port™): 1080P/60Hz × 3
• Windows OS supports MST, Mac OS only supports SST in USB-C Display Alt mode, MacBook (2020) with M1 CPU currently only supports 1 external monitor display.
Compatible OS:
• Compatible with Windows7, 8, 10; Android OS; Mac OS; iOS
Compatible Device:
• Support most popular USB-C enabled laptop, tablet and smartphone devices, such as Apple™ MacBook Air, MacBook Pro, iPad Air (USB-C), iPad Pro (USB-C), Huawei™ Mate Book, Lenovo™ notebook, Xiaomi™ notebook, Asus™ notebook, Dell™ notebook, HP™ notebook, Huawei™ Mate10, Samsung™ S8/S7/S6, LG™ G5, HTC™10, etc.
• Thunderbolt™ 3 port compatible.
Product Measurement:
Cable Length: Approx. 50cm
Product Dimension: 26cm × 9cm × 2.2cm
Product Weight: 0.445kg
Package Dimension: 29.7cm × 15.2cm × 2.86cm
Package Weight: 0.5kg
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| USB Power Delivery |
 |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 1.4 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| DisplayPort version | 1.2 |
| Microphone in The socket where a microphone is connected to the device. |
|
| Combo headphone/mic port |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Headphone connectivity How headphones connect to a device e.g. wirelessly or via a cable and connector. | 3.5 mm |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Performance | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), SD |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 5 Gbit/s |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Number of displays supported The number of displays that can be used with this product. | 3 |
| Maximum refresh rate | 60 Hz |
| Product colour The colour e.g. red, blue, green, black, white. | Aluminium |
| Power | |
| Power source type What the power source is. | USB |
| Power connector | USB Type-C |
| Power cable length | 0.5 m |
| Software | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 7,Windows 8 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Mobile operating systems supported The operating systems e.g. Android, iOS, that can be used with the mobile device. | Android, iOS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 260 mm |
| Depth The distance from the front to the back of something. | 90 mm |
| Height The measurement of the product from head to foot or from base to top. | 22 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 445 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 297 mm |
| Package depth The distance from the front to the back of the packaging. | 152 mm |
| Package height The distance from the top to the bottom of the packaging. | 28.6 mm |
| Package weight Weight of the packaged product. | 500 g |
| SKU | 712217 |
| MPN | MB-DOCK-D11-DEMO |
| Brand | mbeat |
| Product Condition | Ex-Demo |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.mbeat.com.au/ |
